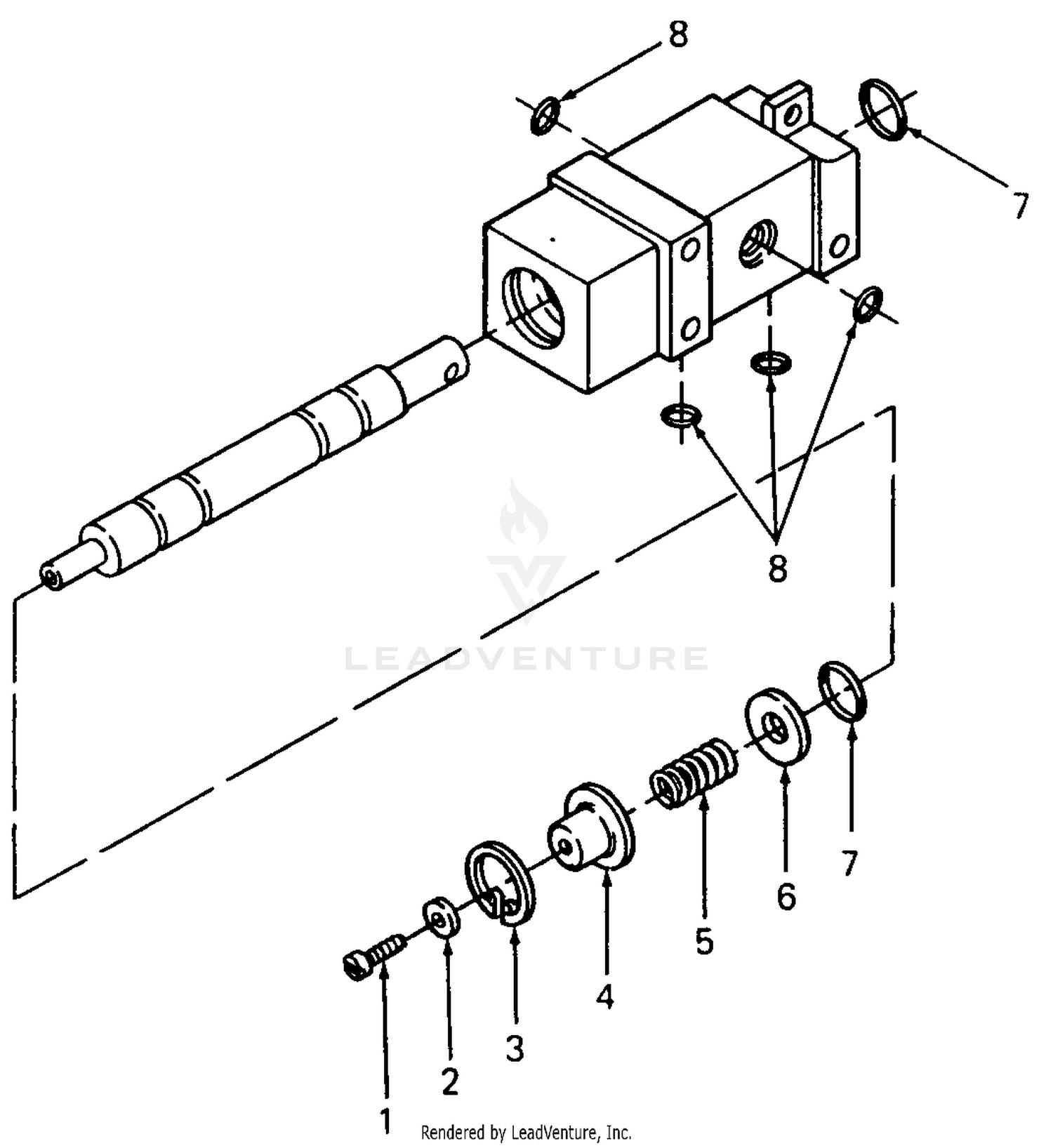

Hydraulic Lift Valve
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-0192 | Screw, Truss Mach, #10-24 X .38 Lg Price: $3.08 |
| 2 | 736-0400 | Washer, Flat, .218 X .62 X .063 Thk Price: $4.56 |
| 3 | 716-3016 | Ring, Int Snap, 1.023 Dia Price: Call Us |
| 4 | 711-3288 | Cup, Centering Price: Call Us |
| 5 | 732-3059 | Spring, Comp, .50 OD X .76 Lg Price: $2.57 |
| 6 | 936-3008 | Washer, Flat, .344 x .750 x .120 This part replaces 736-3008. Price: $6.24 |
| 7 | 721-3022 | O-Ring, .424 X .103 Dia Price: $6.47 |
