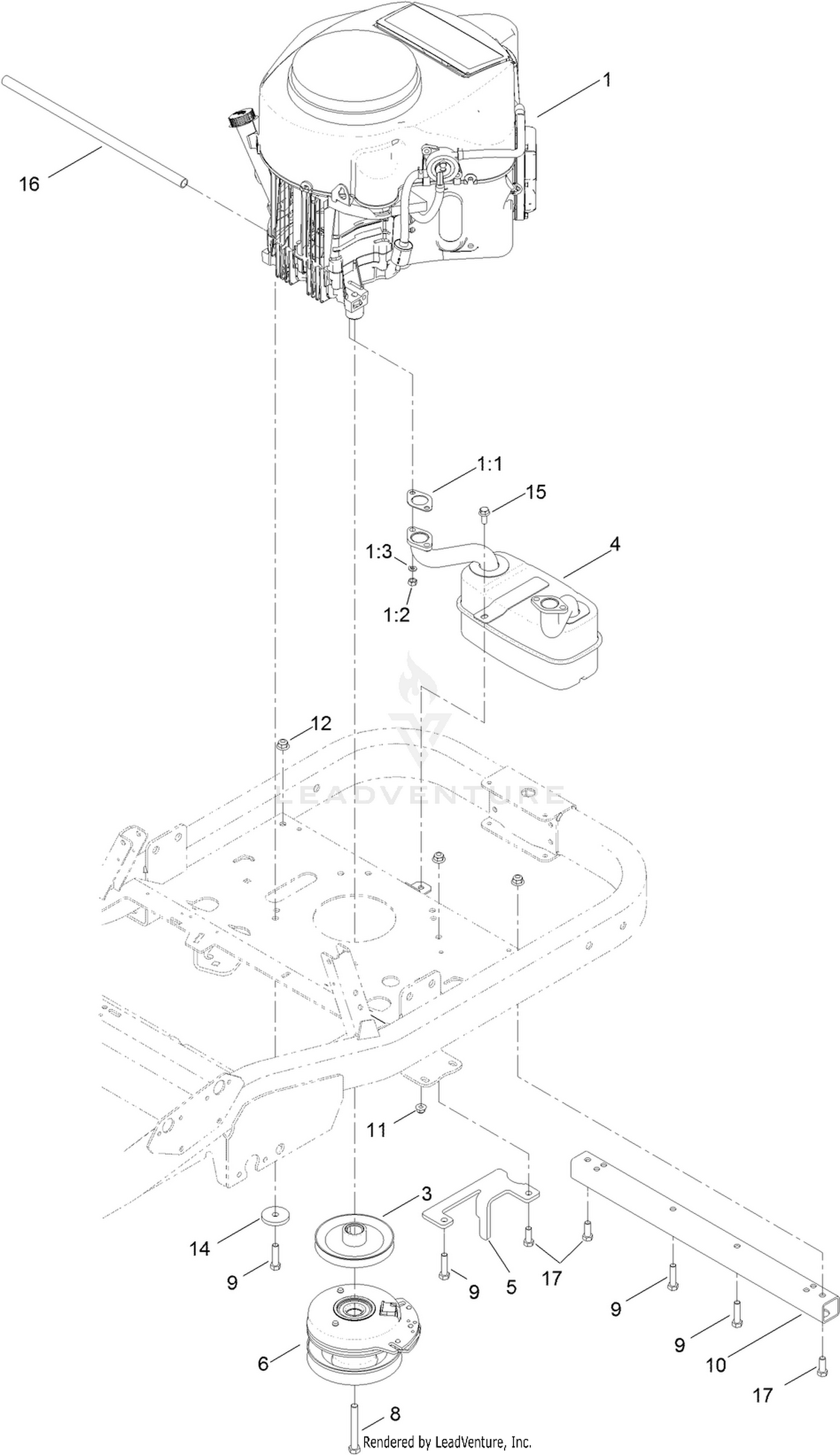

Engine, Muffler and Clutch Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 125-5576 | PULLEY-ENGINE Price: $42.82 |
| 4 | 125-1760 | MUFFLER Price: $102.42 |
| 5 | 117-7344-03 | BRACKET-STOP, PTO Price: $25.03 |
| 6 | 127-3410 | CLUTCH-PTO Price: $278.91 |
| 8 | 3212-13 | SCREW-HH Price: $17.44 |
| 9 | 323-50 | BOLT-HH Price: $1.21 |
| 10 | 117-7335-03 | TUBE-STIFFENER Price: $66.49 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 12 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 14 | 110-9981 | WASHER-PLAIN Price: $13.99 |
| 15 | 3234-47 | SCREW-HHF Price: $1.79 |
| 16 | 106-7022 | TUBE-DRAIN, OIL Price: $8.99 |
