Home / OPE / Gravely Zero Turn / Pro-Turn / 991200 (040000 - ) Pro-Turn 48" / Idlers And Sheaves

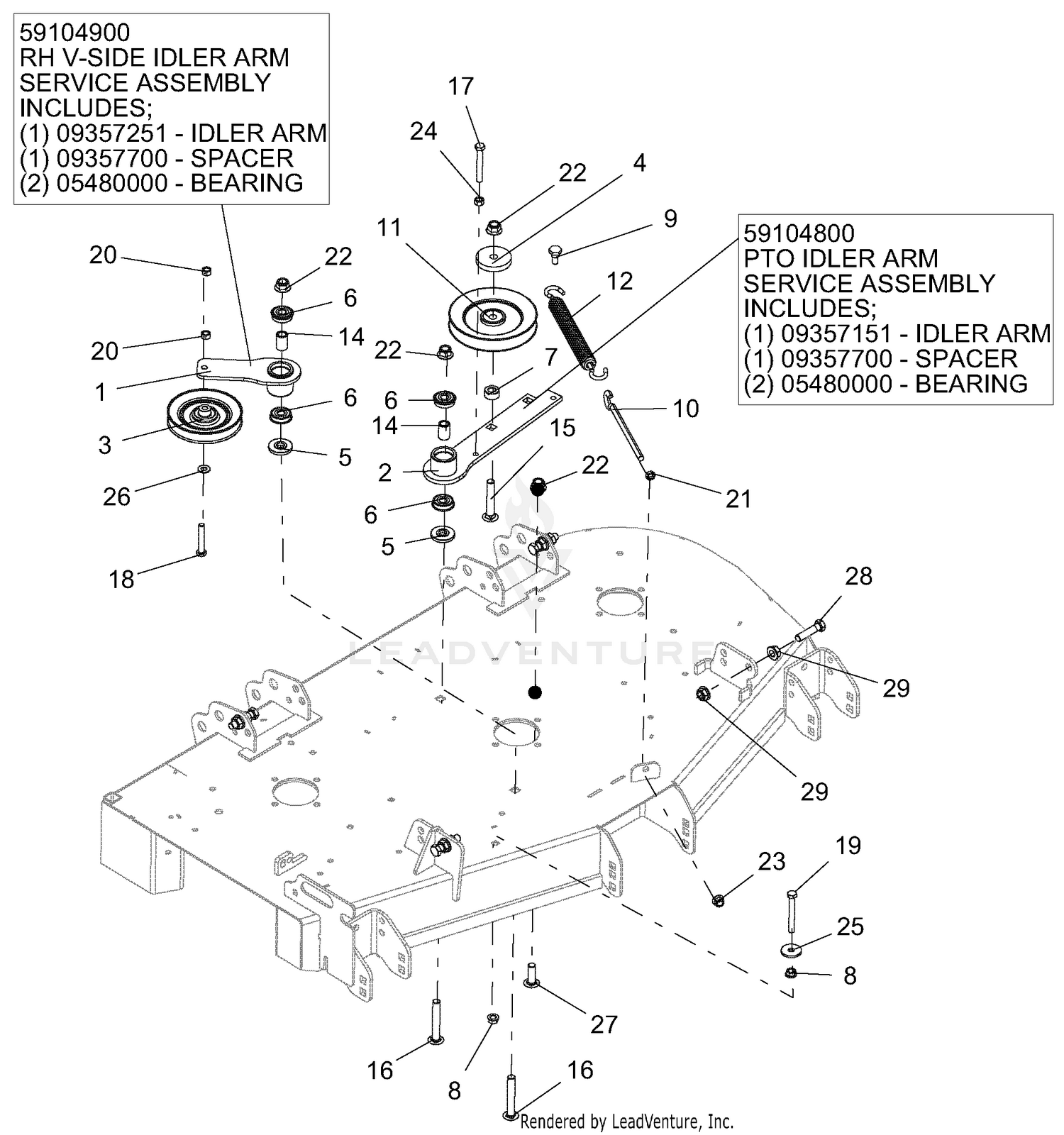

Idlers And Sheaves

Idlers And Sheaves

Parts (31)

RefPart NumberDescription
1 05480000 BRG-BALL .50X1.38X.438 SEALED Price: $13.95
1 09357700 SPACER .510 X .867 X 1.1485 Price: $4.45
1 59104900 RH V-SIDE IDLER ARM ASSEMBLY This part replaces 09357251. Price: $59.45
2 05480000 BRG-BALL .50X1.38X.438 SEALED Price: $13.95
2 09357700 SPACER .510 X .867 X 1.1485 Price: $4.45
2 59104800 PTO IDLER ARM ASSEMBLY Price: $76.45
2 59219200 KIT, PRIMARY DECK IDLER ARM This part replaces 09357151. Price: $112.45
3 07351800 IDLER, V, 5.00X.38 This part replaces 07340100. Price: $27.95
4 00450100 CAP, IDLER BEARING SEALING Price: $13.45
5 04714600 SPACER, IDLER ARM Price: $5.95
6 05480000 BRG-BALL .50X1.38X.438 SEALED Price: $13.95
7 05500905 BSHG, SPCR .502X.997X.50 PM Price: $10.45
8 06500735 NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45
9 07000034 BLT,SHLDR EP .38-16X.30 HEX YZ Price: $3.45
10 07001604 BOLT, .38-16X6.00 .62 DIA EYE Price: $6.45
11 07300527 SHV, .50"ID X 6.00"OD V-IDLER Price: $47.95
12 08300505 SPRING, EXTENSION Price: $23.95
14 09357700 SPACER .510 X .867 X 1.1485 Price: $4.45
16 06200339 BTL,RHSSN .500-13 X 3.25 G5 ZCC This part replaces 06200216. Price: $3.45
17 05901611 BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95
18 05901640 BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95
19 05901814 BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45
20 06500825 NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95
21 06500910 NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95
22 06500810 NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45
23 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
24 06500917 NUT-STD .375-16 G2 ZCC This part replaces 06529400. Price: $0.95
25 06401121 WSHR,FLT .406X1.375X.135 ZCC This part replaces 06442400. Price: $5.45
26 06401013 WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95
27 06200006 BLT-RDHDSHSQNKFT.50-13X1.50 G5 Price: $5.45
28 05900022 BLT, HEX M12-1.75X50 CLS8.8 YZ Price: $3.45
