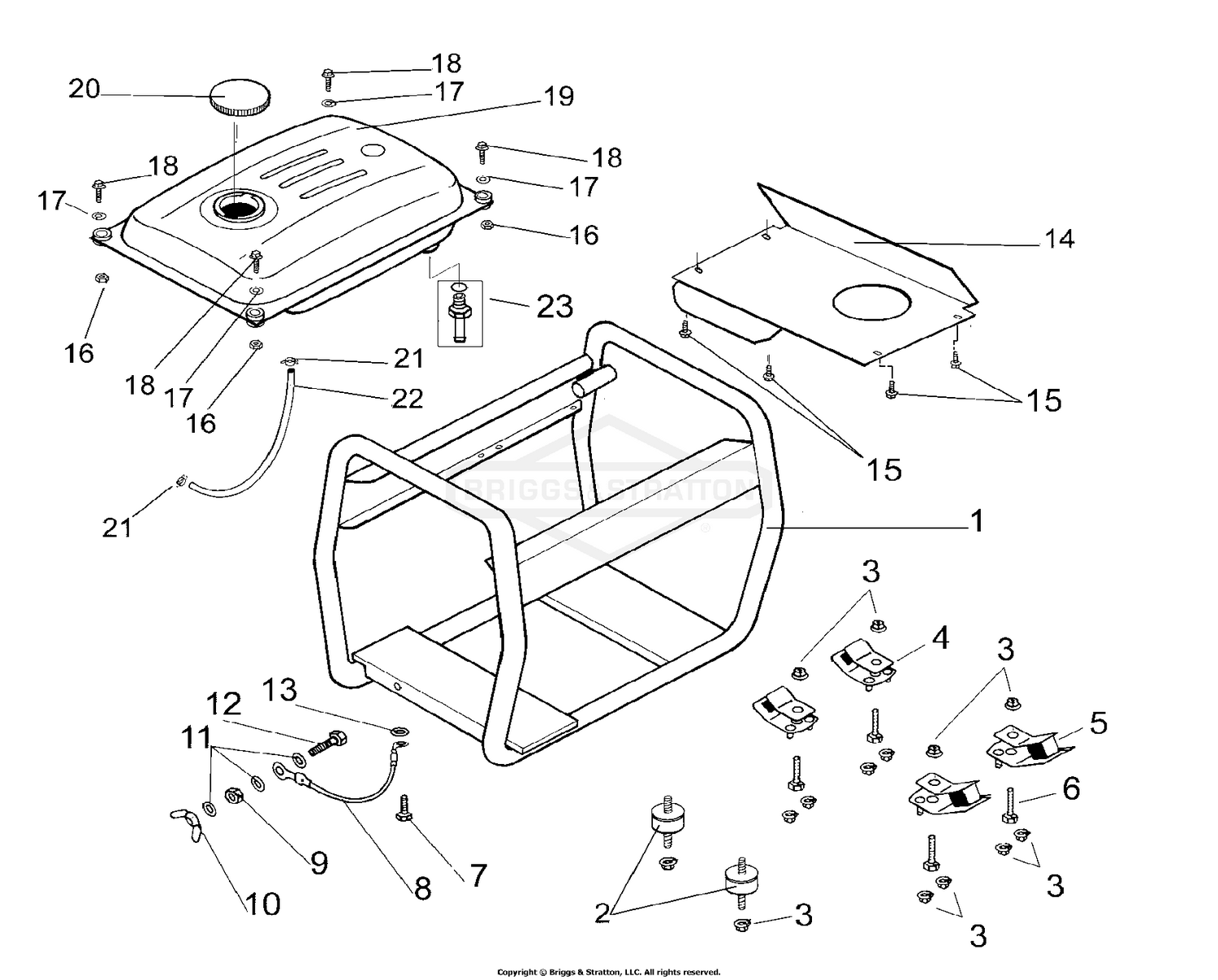

Cradle ProMax 4500/6000

Cradle ProMax 4500/6000

Parts (23)

RefPart NumberDescription
1 102761GS Cradle Pro Max 4500/6000 Price: Call Us
2 102034GS Vibration Mount 32mm Diameter Price: Call Us
3 ~NSP Nut Flange M8-1.25 Price: Call Us
4 102031GS Vibration Mount 45 Degree Hard Price: Call Us
5 102033GS Vibration Mount 45 Degree Soft Price: Call Us
6 ~NSP SCREW SET M8-1.25*35MM Price: Call Us
7 ~NSP Screw Set M8-1.25x12 Plated Price: Call Us
8 102050GS Lead Earth Assy 145mm Price: Call Us
9 ~NSP Nut Full M6-1.0 Price: Call Us
10 102036GS Nut Wing M6-1.0 Price: Call Us
11 ~NSP Washer Shakeproof 1/4" & M6 Int Price: Call Us
12 ~NSP Screw Set M6-1.0x25mm Plated Price: Call Us
13 ~NSP Washer Shakeproof M8 int Price: Call Us
14 102760GS Heat Shield Pro Max 4500/6000 Price: Call Us
15 ~NSP Screw Selftap 5.5*1.8*13mm Price: Call Us
16 ~NSP Nut Locking Flange M6-1.0mm Price: Call Us
17 102042GS Washer Repair 6x20 oxy Black Price: Call Us
18 ~NSP Screw Set M6-1.0x25mm Plated Price: Call Us
19 102044GS Tank Fuel Metal Price: Call Us
20 102090GS Fuel Cap Price: Call Us
21 102549GS Clamp Hose 14mm OD Price: Call Us
22 102550GS Hose Fuel 5/16"ID SAE J30R7 Price: Call Us
23 102699GS Connector Fuel Tank Price: Call Us
