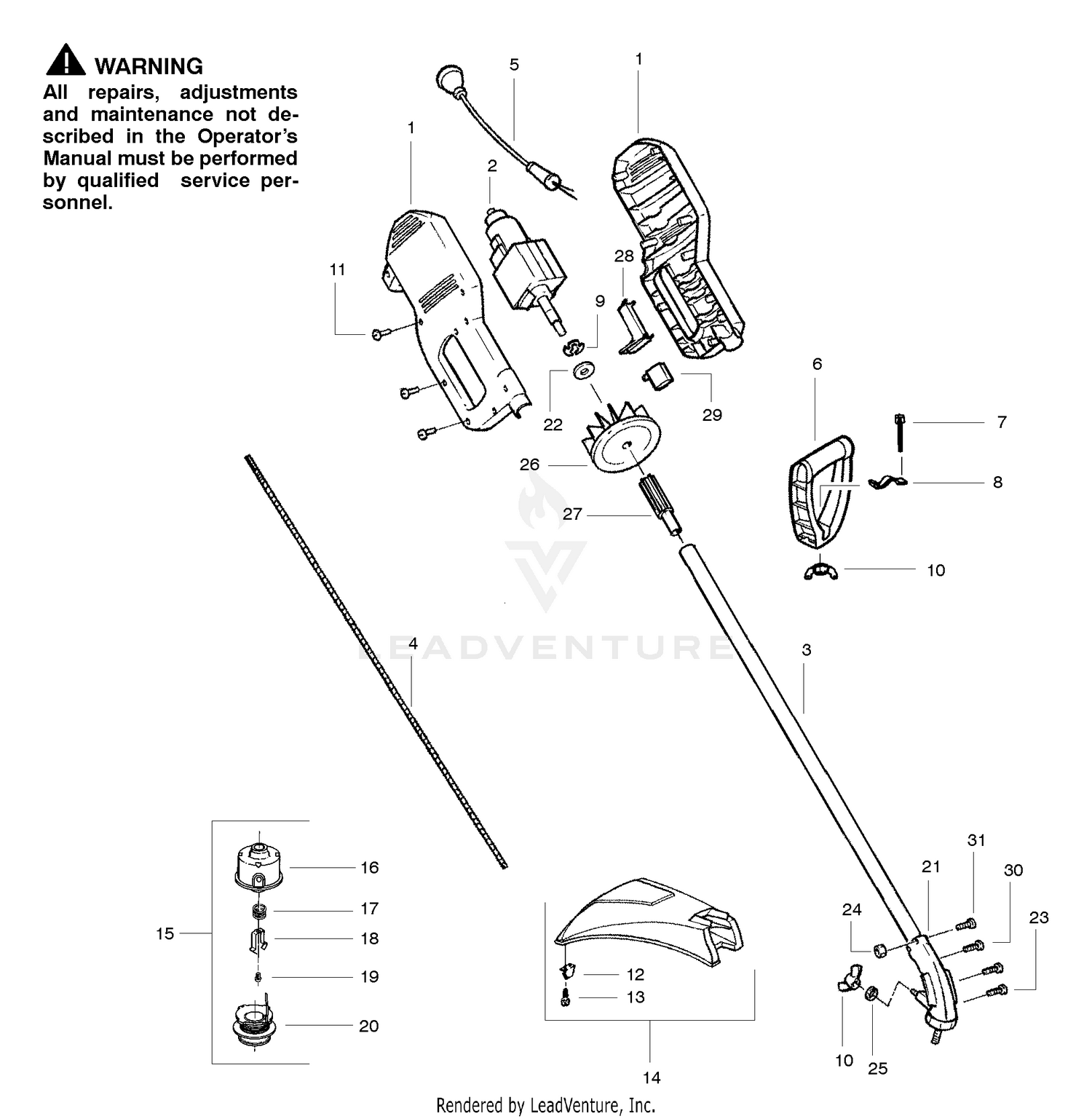

Electric Trimmer
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530403717 | Set-Housing Price: $11.99 |
| 2 | 530402688 | Motor Price: $37.12 |
| 3 | 530403742 | Assy-Tube Price: Call Us |
| 4 | 530095391 | Shaft-Flex Price: $11.99 |
| 6 | 530038708 | Handle-Assist Price: $1.32 |
| 7 | 530015820 | Bolt Price: $1.99 |
| 8 | 530094742 | Clamp-Assist Handle Price: $2.99 |
| 9 | 530403111 | Clip Retainer Price: $1.99 |
| 10 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 11 | 530016120 | Screw Price: $1.99 |
| 12 | 530095387 | Line Limiter Price: $1.99 |
| 13 | 530015880 | Screw-Line Limiter Price: $1.99 |
| 16 | 530069690 | Assy-Hub Price: $4.00 |
| 17 | 530401464 | Spring Price: $0.99 |
| 18 | 530401466 | Retainer-Clip Price: $1.99 |
| 19 | 530401467 | Screw w/ Washer-Head Price: Call Us |
| 20 | 952711527 | Accy-Spool w/Line Price: $7.95 |
| 21 | 530095638 | Assy-Gear Box Price: $34.99 |
| 22 | 530403112 | Washer-Drive Adaptor Price: $0.99 |
| 23 | 530016202 | Screw Price: $1.99 |
| 24 | 530016284 | Locknut Price: $1.99 |
| 25 | 530092062 | Washer Price: $1.99 |
| 26 | 530402798 | Fan Price: $2.99 |
| 27 | 530402801 | Drive Adaptor Ass'y. Price: $2.99 |
| 28 | 530402799 | Trigger Price: $2.99 |
| 29 | 530402802 | Switch Price: $2.99 |
| 30 | 530016224 | Screw Price: $1.99 |
| 31 | 530016312 | Screw Price: $1.99 |
