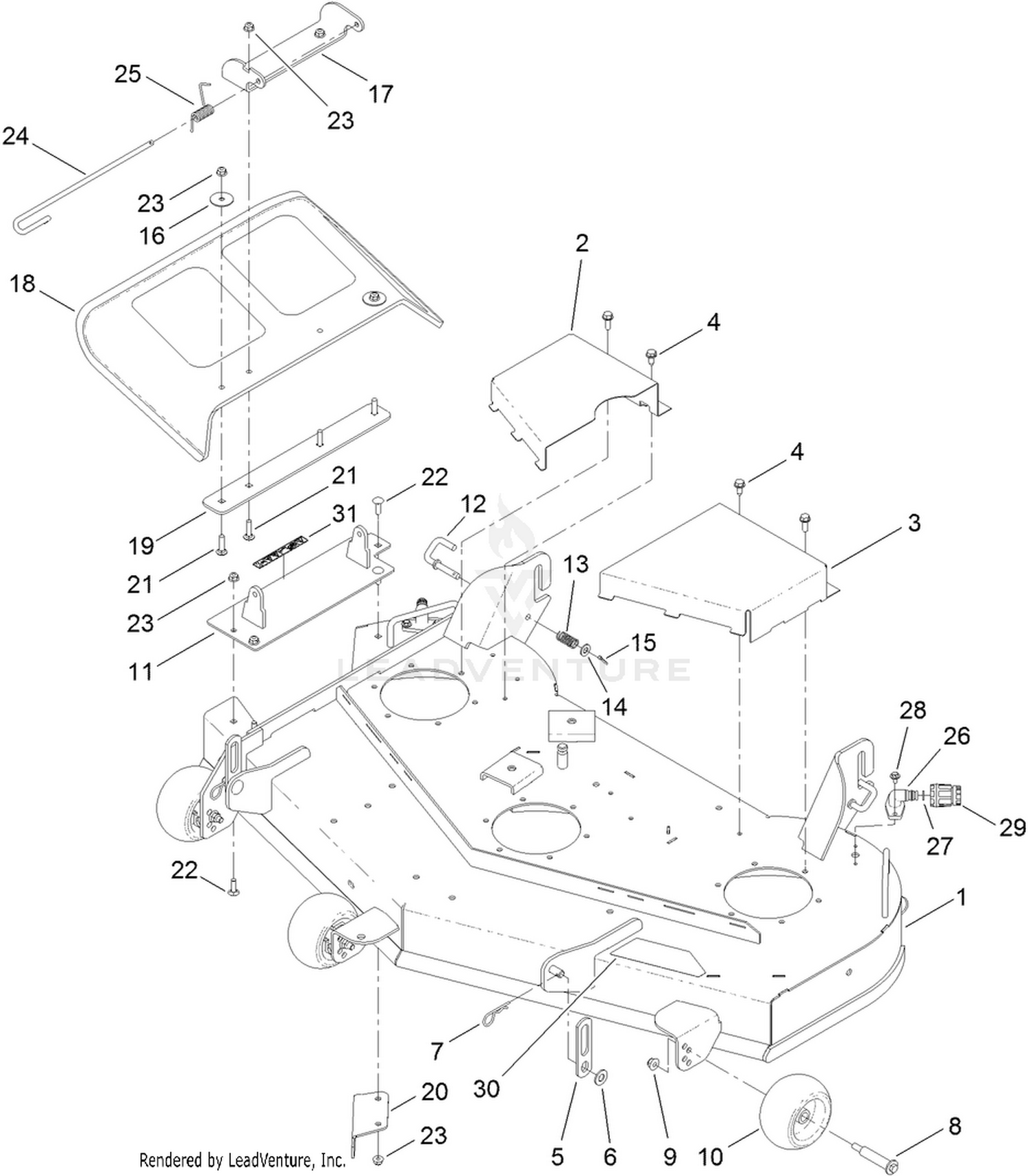

| Ref | Part Number | Description |
|---|
| 2 |
117-7396-05 |
COVER-BELT This part replaces 117-7396-03. Price: $30.69 |
| 3 |
117-7397-05 |
COVER-BELT This part replaces 117-7397-03. Price: $30.69 |
| 4 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 5 |
115-2622 |
LINK-LIFT Price: $5.45 |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 7 |
1-806005 |
PIN-COTTER Price: $2.39 |
| 8 |
112-3977 |
BOLT-SHOULDER Price: $7.37 |
| 9 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 11 |
117-7367-03 |
PLATE Price: $52.65 |
| 12 |
115-2470 |
PIN-LATCH Price: $10.39 |
| 13 |
101853 |
SPRING-COMPRESSION Price: $0.88 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 16 |
3256-68 |
WASHER-FLAT Price: $2.69 |
| 17 |
114-1648-03 |
BRACKET-DEFLECTOR, UPPER Price: $39.33 |
| 18 |
117-1270 |
DEFLECTOR Price: $50.71 |
| 19 |
115-5048-03 |
PLATE-DEFLECTOR Price: $28.80 |
| 20 |
117-7418-03 |
BAFFLE-CUTOFF Price: $14.30 |
| 21 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 22 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 23 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 24 |
109-8854 |
PIN-CHUTE Price: $10.21 |
| 25 |
115-9641 |
SPRING-TORSION Price: $10.35 |
| 26 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 27 |
46-6290 |
O-RING Price: $2.59 |
| 28 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 29 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 30 |
119-3382 |
DECAL-DECK Price: $7.74 |
