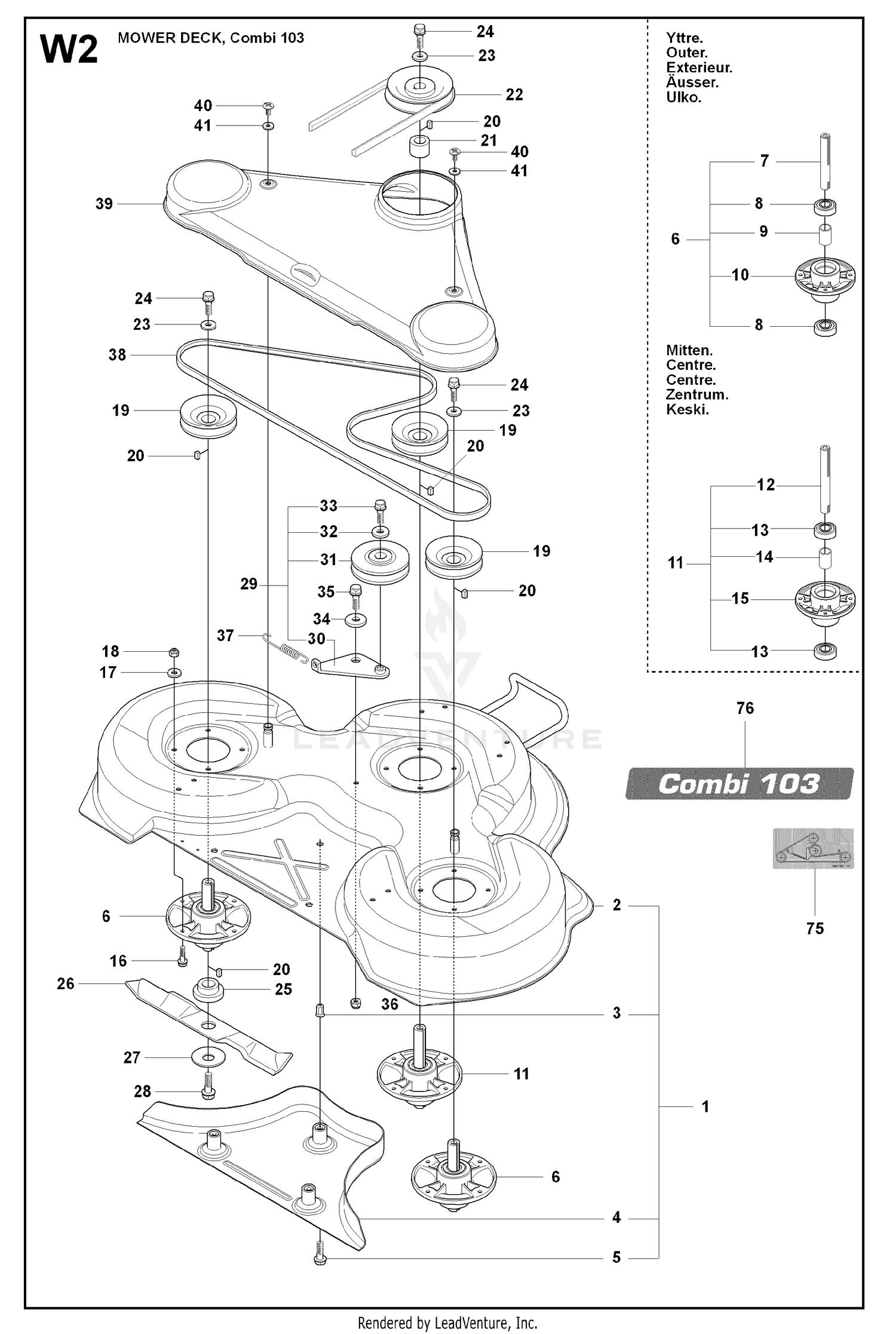

103CM CUTTING DECK
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544112903 | CUTTING DECK Price: $349.99 |
| 2 | 544112801 | CUTTING DECK ASSY Price: $318.99 |
| 3 | 506916201 | NUT Price: $4.99 |
| 4 | 544449201 | PLUG Price: $64.99 |
| 5 | 506570104 | BOLT Price: $4.99 |
| 6 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 7 | 544067902 | SHAFT Price: $37.99 |
| 8 | 738230434 | BEARING Price: $17.99 |
| 9 | 544068001 | SPACER Price: $11.99 |
| 10 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 10 | 98-9596 | JOINT-EYE Price: $18.69 |
| 11 | 576384101 | BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 12 | 544067901 | SHAFT Price: $39.99 |
| 13 | 738230434 | BEARING Price: $17.99 |
| 14 | 544068001 | SPACER Price: $11.99 |
| 15 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 17 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 506922101 | PULLEY Price: $29.99 |
| 20 | 506533501 | KEY Price: $3.99 |
| 20 | 98-9643 | INJECTION PUMP ASM Price: $2,551.99 |
| 21 | 544068002 | SPACER Price: $9.99 |
| 22 | 506778601 | PULLEY Price: $49.99 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 544114101 | SCREW Price: $3.99 |
| 25 | 535504202 | ADAPTER Price: $19.99 |
| 26 | 504188210 | BLADE Price: $27.99 |
| 27 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 28 | 544114101 | SCREW Price: $3.99 |
| 29 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 30 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 30 | 98-9464 | BOLT-JOINT Price: $20.48 |
| 31 | 506532701 | PULLEY Price: $39.99 |
| 32 | 734116441 | SPACER Price: $3.99 |
| 33 | 506558302 | BOLT Price: $3.99 |
| 34 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 35 | 725245171 | SCREW Price: $2.08 |
| 36 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 37 | 506533101 | SPRING Price: $9.99 |
| 38 | 589530601 | BELT Price: $54.99 |
| 39 | 544096103 | BELT COVER C103 HUSQ - GREY This part replaces 544096101. Price: $74.99 |
| 40 | 506982601 | SCREW Price: $5.99 |
| 40 | 98-9445 | GASKET Price: $1.84 |
| 41 | 506559701 | WASHER Price: $4.99 |
| 50 | 98-9430 | SCREW Price: $19.45 |
| 60 | 98-9446 | GASKET Price: $2.50 |
| 70 | 98-9466 | PLUG Price: $12.54 |
| 75 | 506789701 | Decal Price: $21.55 |
| 76 | 544238103 | DECAL Price: $4.99 |
| 80 | 98-9451 | GASKET Price: $1.92 |
| 90 | 115-3045 | SHIM-INJECTION (0.175MM) Price: $10.31 |
| 90 | 115-3046 | SHIM-INJECTION (0.35MM) Price: $10.62 |
| 90 | 98-9456 | SHIM-INJECTION (0.20MM) Price: $7.29 |
| 90 | 98-9457 | SHIM-INJECTION (0.25MM) Price: $8.40 |
| 90 | 98-9458 | SHIM-INJECTION (0.30MM) Price: $12.10 |
| 110 | 117-7564 | BOLT-HEX SOC HD Price: $2.53 |
| 120 | 98-9438 | STUD Price: $1.33 |
| 130 | 98-9440 | NUT-CAP Price: $18.34 |
