| Ref | Part Number | Description |
|---|
| 1 |
164210 |

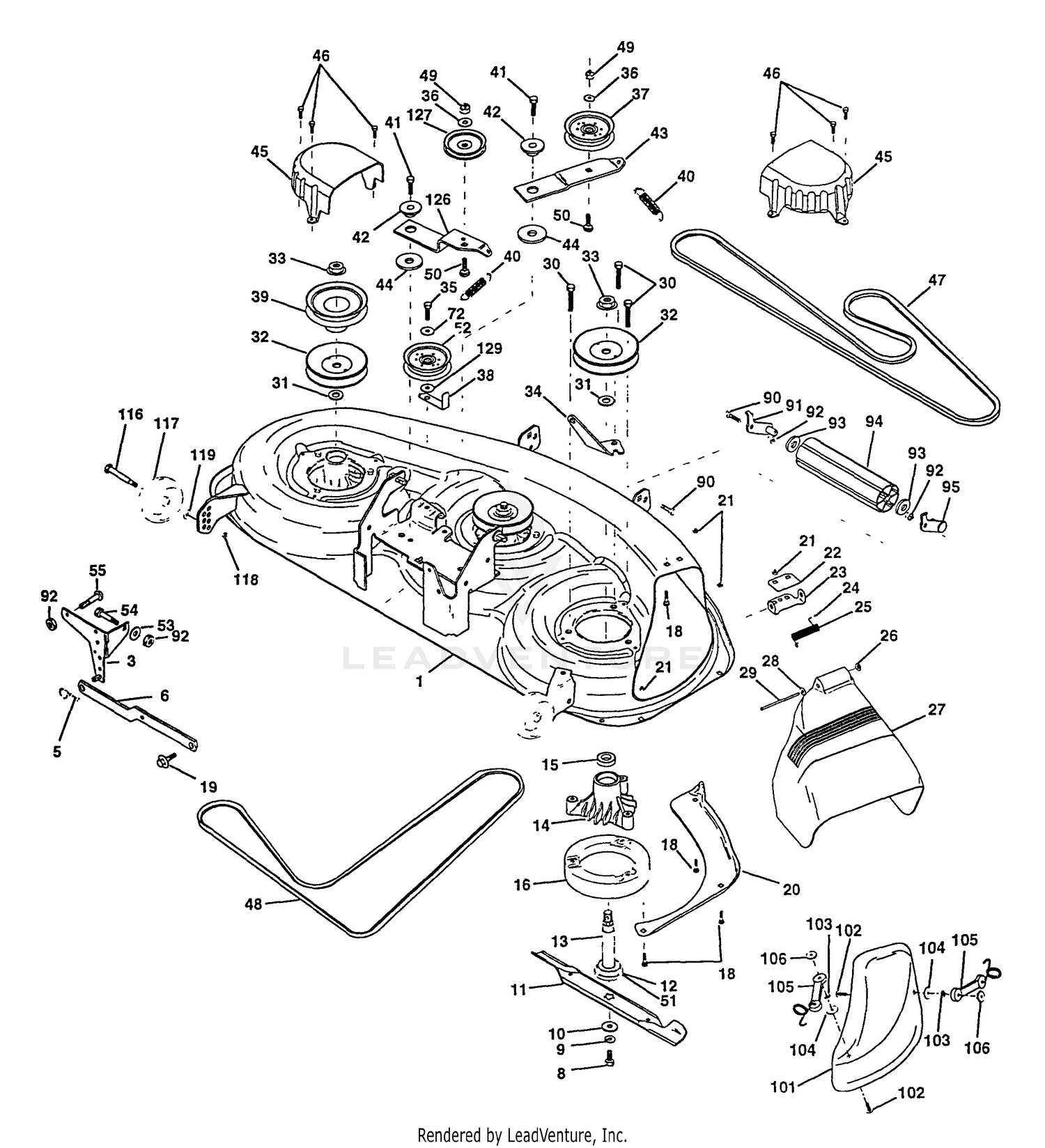

Deck Asm., Mower 46" (AYP part number) Price: Call Us |
| 1 |
3220-7 |
NUT-JAM Price: $4.09 |
| 2 |
22-8310 |
DISCONTINUED Price: Call Us |
| 3 |
138457 |
Bracket Asm., Sway Bar Price: Call Us |
| 3 |
302-16 |
ZERK FITTING Price: $7.10 |
| 4 |
33-4430 |
DISCONTINUED This part replaces 22-8290. Price: Call Us |
| 5 |
38-6300 |
DISCONTINUED This part replaces 21-9270. Price: Call Us |
| 5 |
4939M |
Retainer Spring (AYP part number) Price: Call Us |
| 6 |
130832 |
Arm, Suspension, Rear (Sway Bar) (AYP part number) Price: Call Us |
| 6 |
21-9260 |
COVER-DUST Price: $8.19 |
| 7 |
22-8300 |
LEVER STUD Price: $99.68 |
| 8 |
3219-10 |
NUT-HEX Price: $1.22 |
| 8 |
850857 |
Bolt, Patched 3/8-24 x 1-1/4 Gr. 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock Hvy., Unplated 3/8 (AYP part number) Price: Call Us |
| 9 |
22-8280 |
DISCONTINUED Price: Call Us |
| 10 |
140296 |
Washer, Hard Blade, Mower Vented Price: Call Us |
| 10 |
22-8470 |
SEAL RETAINING Price: $15.86 |
| 11 |
163819 |
Blade, 46" Mower Deck Price: Call Us |
| 11 |
22-8460 |
DISCONTINUED Price: Call Us |
| 12 |
129895 |
Bearing, Ball, Mandrel #6204 Price: Call Us |
| 12 |
3220-6 |
NUT-JAM Price: $1.25 |
| 13 |
21-9280 |
DISCONTINUED Price: Call Us |
| 14 |
137152 |
Housing, Mandrel Price: Call Us |
| 14 |
21-9170 |
RETAINER & BALL ASM Price: $44.17 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
21-9160 |
DISCONTINUED Price: Call Us |
| 16 |
140329 |
Stripper, Mower Round (AYP part number) Price: Call Us |
| 16 |
21-9150 |
OBS WASHER-BELLEVILLE Price: $44.31 |
| 17 |
21-9130 |
DISCONTINUED Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Head, Shoulder 5/16-18 Price: Call Us |
| 20 |
145055 |
Baffle, Vortex Mower 46" Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 UNC Price: Call Us |
| 22 |
134753 |
Stiffener, Bracket (AYP part number) Price: Call Us |
| 23 |
131267 |
Bracket, Deflector (AYP part number) Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
149287 |
Spring, Torsion, Deflector (AYP part number) Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
157788 |
Shield, Deflector Mower Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
157722 |
Screw, Wsh Head, Thdroll (AYP part number) Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented (AYP part number) Price: Call Us |
| 32 |
153531 |
Pulley, Mandrel (AYP part number) Price: Call Us |
| 33 |
137266 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 34 |
144945 |
Anchor, Spring Deck 46" Price: Call Us |
| 35 |
17490628 |
Screw, Thdroll 3/8-16 x 1-3/4 Tytt Price: Call Us |
| 36 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 37 |
131494 |
Pulley, Idler, Flat (AYP part number) Price: Call Us |
| 38 |
156086 |
Keeper, Belt, Idler Price: Call Us |
| 39 |
144917 |
Pulley, Idler, Driven Price: Call Us |
| 40 |
137273 |
Spring, Secondary 44/46/50 Vent Price: Call Us |
| 41 |
17490620 |
Screw, Thdroll 3/8-16 x 1-1/4 Tytt Price: Call Us |
| 42 |
122052X |
Spacer, Retainer Price: Call Us |
| 43 |
144949 |
Arm, Idler Secondary Price: Call Us |
| 44 |
133943 |
Washer, Hardened (AYP part number) Price: Call Us |
| 45 |
145059 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
144959 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
148763 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73680600 |
Nut, Crownlock 3/8-16 UNC Price: Call Us |
| 50 |
72110612 |
Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
153390 |
Washer, Felt Price: Call Us |
| 52 |
156493 |
Pulley Idler 46 Pri. Drive (AYP part number) Price: Call Us |
| 53 |
19131312 |
Washer 1 3/32 x 13/16 x 12 Ga. Price: Call Us |
| 54 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us |
| 55 |
72140608 |
Bolt Rdhd Sqnk 3/8-16unc x 1 (AYP part number) Price: Call Us |
| 72 |
19131616 |
Washer 13/32 x 1 x 16 Ga. Price: Call Us |
| 90 |
74760616 |
Bolt, Fin, Hex 3/8-16 UNC x 1 Price: Call Us |
| 91 |
132274 |
Bracket, Asm Noseroller, LH (AYP part number) Price: Call Us |
| 92 |
73800600 |
Nut, Lock, Hex w/Ins 3/8-16UNC Price: Call Us |
| 93 |
19171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: Call Us |
| 94 |
132264 |
Roller, Nose 38 & 42 (AYP part number) Price: Call Us |
| 95 |
132273 |
Bracket, asm Noseroller RH (AYP part number) Price: Call Us |
| 101 |
145579 |
Cover, Mulching Price: Call Us |
| 102 |
71161010 |
Screw (AYP part number) Price: Call Us |
| 103 |
10071000 |
Washer, Lock #10 Price: Call Us |
| 104 |
19061216 |
Washer Price: Call Us |
| 105 |
160793 |
Latch Asm, Bagger Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 116 |
137644 |
Bolt, Shoulder (AYP part number) Price: Call Us |
| 117 |
133957 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 126 |
144948 |
Arm, Idler, Primary Deck 46" Price: Call Us |
| 127 |
146763 |
Pulley, Idler, V-Groove Dim. 4.25 Price: Call Us |
| 129 |
19132203 |
Washer 13/32 x 3/8 x 3 Ga. Price: Call Us |
