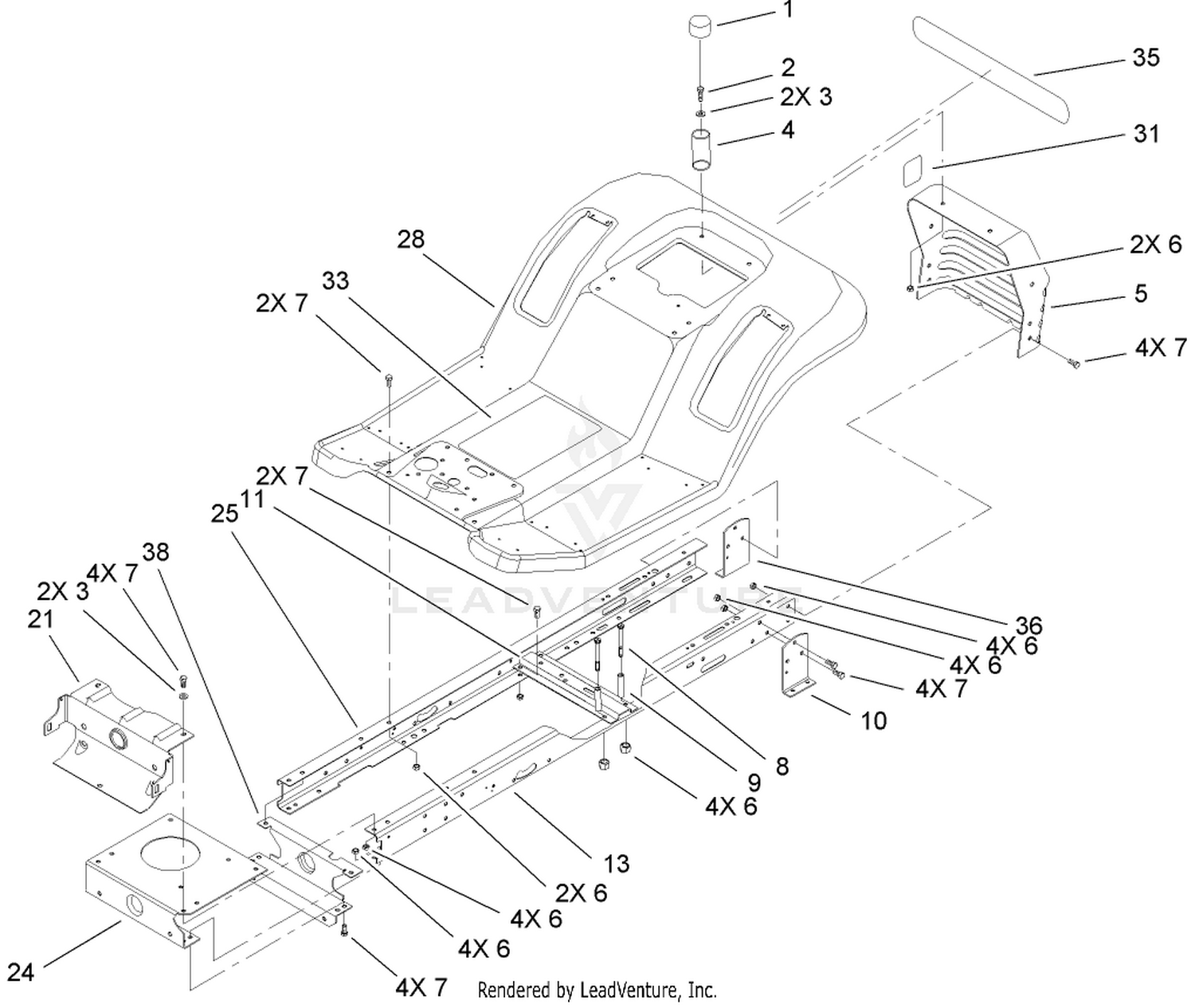

| Ref | Part Number | Description |
|---|
| 1 |
701178 |
CAP-PROTECTOR Price: $1.45 |
| 2 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 3 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
88-6220 |
SPRING-COMPRESSION Price: $19.09 |
| 5 |
99-2957-03 |
SUPPORT-SEAT/REAR HITCH Price: $104.43 |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
322-3 |
SCREW-HH Price: $0.79 |
| 8 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 9 |
88-5470 |
SPACER Price: $12.99 |
| 10 |
93-3857-03 |
BRACKET-MOUNTING, LH TRANSAXLE Price: $13.36 |
| 11 |
88-4620-03 |
BRACKET-IDLER PIVOT Price: $17.27 |
| 13 |
99-2958-03 |
RAIL-FRAME, LH Price: $68.83 |
| 21 |
98-3576-03 |
SUPPORT-AXLE, FRONT Price: $59.70 |
| 24 |
88-4630-03 |
PLATE-MOUNTING, ENGINE Price: $46.82 |
| 25 |
99-2959-03 |
RAIL-FRAME, RH Price: $68.83 |
| 28 |
99-2971 |
REAR BODY ASM Price: $478.61 |
| 31 |
100-7449 |
DECAL-VALVE, DUMP Price: $16.59 |
| 33 |
93-6676 |
DECAL-INSTRUCTION Price: $20.50 |
| 35 |
105-2498 |
DECAL-REAR FENDER, LAWN TRACTORS Price: $9.97 |
| 36 |
93-3856-03 |
BRACKET-MOUNTING, RH TRANSAXLE Price: $13.36 |
