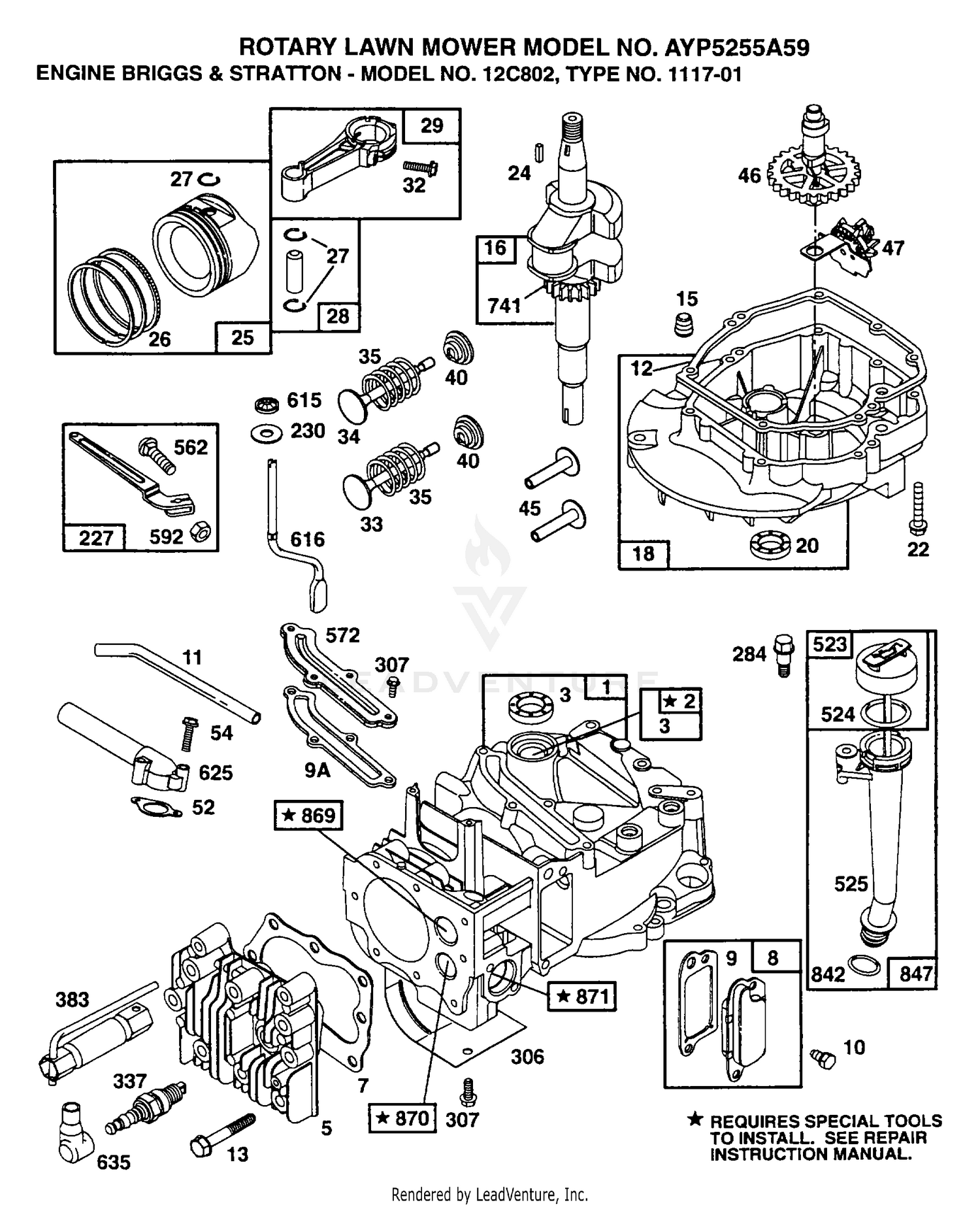

| Ref | Part Number | Description |
|---|
| 1 |
494062 |
CYLINDER ASSY Price: Call Us |
| 2 |
399269 |
BUSHING ASSY Price: Call Us |
| 2 |
93-7977 |
SEAL Price: $74.14 |
| 3 |
299819 |
SEAL, OIL Price: Call Us |
| 3 |
93-7978 |
ROD-PULL Price: $171.95 |
| 4 |
93-7983 |
PIN-CLEVIS Price: $3.19 |
| 5 |
214349 |
HEAD, CYLINDER Price: Call Us |
| 5 |
93-7980 |
LINK Price: $13.85 |
| 6 |
93-7979 |
PIN-HITCH Price: $1.70 |
| 7 |
272916 |
GASKET, CYLINDER HEAD Price: Call Us |
| 7 |
93-7986 |
DISC-STATIONARY Price: $26.25 |
| 8 |
104-4278 |
DISC-ROTATING Price: $55.70 |
| 8 |
494489 |
BREATHER, VALVE CHAMBER Price: Call Us |
| 9 |
272481 |
GASKET, VALVE COVER Price: Call Us |
| 9 |
93-7976 |
RING-RETAINING Price: $12.48 |
| 9A |
272238 |
GASKET, BAFFLE PLATE Price: Call Us |
| 10 |
93-7984 |
GASKET Price: $20.21 |
| 10 |
94650 |
SCREW Price: Call Us |
| 11 |
104-4280 |
ACTUATOR-ROTATING Price: $332.95 |
| 11 |
231933 |
TUBE, BREATHER Price: Call Us |
| 12 |
272198 |
GASKET, CRANKCASE Price: Call Us |
| 12 |
93-7987 |
SPRING-EXTENSION Price: $9.47 |
| 13 |
93-7985 |
BALL Price: $9.39 |
| 13 |
94547 |
SCREW, CYLINDER HEAD Price: Call Us |
| 14 |
353-990 |
PLUG ASM Price: $10.01 |
| 15 |
94720 |
PLUG, OIL DRAIN Price: Call Us |
| 16 |
493362 |
CRANKSHAFT Price: Call Us |
| 18 |
493279 |
SUMP, ENGINE Price: Call Us |
| 20 |
399781 |
SEAL, OIL Price: Call Us |
| 22 |
94220 |
SCREW, HEX HEAD Price: Call Us |
| 24 |
222698 |
KEY, FLYWHEEL Price: Call Us |
| 25 |
494058 |
PISTON ASSY, STANDARD SIZE Price: Call Us |
| 26 |
493261 |
RING SET, PISTON, STANDARD SIZE Price: Call Us |
| 27 |
26026 |
LOCK, PISTON PIN Price: Call Us |
| 28 |
298909 |
PIN ASSY, PISTON, STD Price: Call Us |
| 29 |
490566 |
ROD, CONNECTING Price: Call Us |
| 32 |
94699 |
SCREW Price: Call Us |
| 33 |
262651 |
VALVE, EXHAUST Price: Call Us |
| 34 |
262652 |
VALVE, INTAKE Price: Call Us |
| 35 |
262224 |
SPRING, VALVE Price: Call Us |
| 40 |
93312 |
RETAINER, VALVE SPRING Price: Call Us |
| 45 |
262204 |
TAPPET, VALVE Price: Call Us |
| 46 |
492830 |
GEAR, CAM Price: Call Us |
| 47 |
493737 |
SLINGER, OIL Price: Call Us |
| 52 |
272199 |
GASKET, INTAKE ELBOW Price: Call Us |
| 54 |
94526 |
SCREW, HEX HEAD Price: Call Us |
| 227 |
492349 |
LEVER, GOVERNOR Price: Call Us |
| 230 |
67072 |
WASHER, THRUST Price: Call Us |
| 284 |
94511 |
SCREW, HEX HEAD Price: Call Us |
| 305 |
94786 |
SCREW Price: Call Us |
| 307 |
94515 |
SCREW HEX HD Price: Call Us |
| 337 |
492167 |
PLUG SPARK Price: Call Us |
| 383 |
89838 |
WRENCH SPARK PLUG Price: Call Us |
| 523 |
495264 |
CAP W/DIPSTICK, OIL FILTER Price: Call Us |
| 524 |
280393 |
SEAL, FILLER TUBE Price: Call Us |
| 525 |
495265 |
TUBE, OIL FILLER Price: Call Us |
| 562 |
92613 |
BOLT, GOVERNOR LEVER Price: Call Us |
| 572 |
224328 |
BAFFLE, CYLINDER Price: Call Us |
| 592 |
231082 |
NUT, HEX Price: Call Us |
| 615 |
94474 |
FASTENER Price: Call Us |
| 616 |
262578 |
CRANK, GOVERNOR Price: Call Us |
| 625 |
497465 |
TUBE, FUEL INTAKE Price: Call Us |
| 635 |
66538 |
ELBOW, SPARK PLUG Price: Call Us |
| 741 |
262598 |
GEAR, TIMING Price: Call Us |
| 842 |
280966 |
SEAL, O-RING Price: Call Us |
| 847 |
495263 |
TUBE ASSEMBLY, OIL Price: Call Us |
| 869 |
213512 |
SEAT, INTAKE VALVE Price: Call Us |
| 870 |
213513 |
SEAT, EXHAUST VALVE Price: Call Us |
| 871 |
262001 |
GUIDE, EXHAUST VALVE Price: Call Us |
| 94388 |
TIMING |
GEAR KEY Price: Call Us 94388 |
| 94612 |
SCREW, |
HEX HEAD Price: Call Us 94612 |
| 298908 |
PIN |
ASSEMBLY, PISTON .005" OVERSIZE Price: Call Us 298908 |
| 490743 |
ROD, |
CONNECTING, .020" UNDERSIZE Price: Call Us 490743 |
| 493388 |
RING |
SET, PISTON, .010" OVERSIZE Price: Call Us 493388 |
| 493389 |
RING |
SET, PISTON, .020" OVERSIZE Price: Call Us 493389 |
| 493390 |
RING |
SET, PISTON, .030" OVERSIZE Price: Call Us 493390 |
| 494059 |
PISTON |
ASSY, .010" OVERSIZE Price: Call Us 494059 |
| 494060 |
PISTON |
ASSY, .020" OVERSIZE Price: Call Us 494060 |
| 494061 |
PISTON |
ASSY, .030" OVERSIZE Price: Call Us 494061 |
