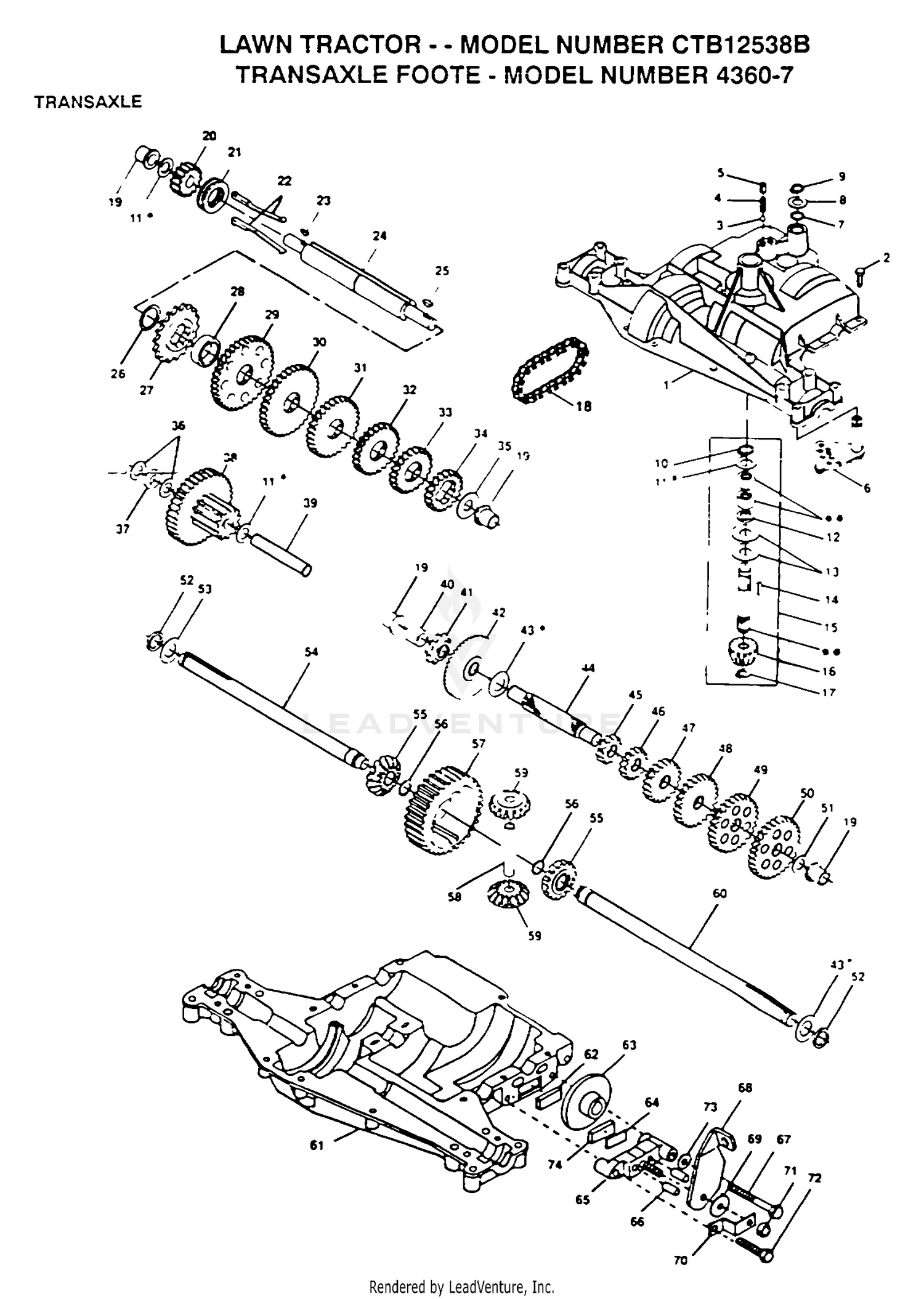

| Ref | Part Number | Description |
|---|
| 1 |
3865 |
HOUSING UPPER Price: Call Us |
| 1 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 2 |
1919 |
SCREW Price: Call Us |
| 2 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 3 |
1151 |
BALL DETENT Price: Call Us |
| 3 |
32128-25 |
NUT-HF Price: $3.19 |
| 4 |
3626 |
SPRING, DETENT Price: Call Us |
| 4 |
98-9342 |
DECAL-SOLENOID, INFORMATION Price: $69.36 |
| 5 |
3623 |
SCREW, SET Price: Call Us |
| 5 |
98-9302 |
PLATE-STOP, IDLER Price: $12.42 |
| 6 |
4336 |
ASSY SHIFTER Price: Call Us |
| 6 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 7 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 7 |
3884 |
O-RING Price: Call Us |
| 8 |
3121 |
WASHER PLAIN Price: Call Us |
| 8 |
3885 |
WASHER PLAIN Price: Call Us |
| 8 |
3886 |
WASHER PLAIN Price: Call Us |
| 8 |
3887 |
WASHER PLAIN Price: Call Us |
| 8 |
3888 |
WASHER PLAIN Price: Call Us |
| 8 |
3889 |
WASHER PLAIN Price: Call Us |
| 8 |
3890 |
WASHER PLAIN Price: Call Us |
| 9 |
1100 |
RING RETAINING Price: Call Us |
| 9 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 10 |
1099 |
RING RETAINING Price: Call Us |
| 10 |
25-8640 |
SCREW-HH Price: $1.09 |
| 11 |
1068 |
WASHER PLAIN Price: Call Us |
| 11 |
1082 |
WASHER PLAIN Price: Call Us |
| 11 |
1145 |
WASHER, PLAIN .632 X 1.00 X .060 Price: Call Us |
| 11 |
1319 |
WASHER PLAIN Price: Call Us |
| 11 |
1358 |
WASHER PLAIN Price: Call Us |
| 11 |
1423 |
WASHER, PLAIN .632 X 1.00 X .026 Price: Call Us |
| 11 |
1424 |
WASHER PLAIN Price: Call Us |
| 11 |
1425 |
WASHER PLAIN Price: Call Us |
| 11 |
1441 |
WASHER PLAIN Price: Call Us |
| 11 |
1959 |
WASHER PLAIN Price: Call Us |
| 11 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 12 |
3312 |
O-RING Price: Call Us |
| 12 |
98-9311 |
SWIVEL-THROTTLE Price: $28.41 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
3876 |
WASHER, PLAIN .632 X 1.38 X .046 Price: Call Us |
| 14 |
1374 |
KEY WOODRUFF #9 Price: Call Us |
| 14 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
4134 |
ASSY KIT INPUT SHAFT Price: Call Us |
| 16 |
3590 |
PINION, BEVEL, 14 TEETH Price: Call Us |
| 16 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 17 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 17 |
3624 |
RING, RETAINING Price: Call Us |
| 18 |
106-9224 |
DECAL-DANGER Price: $4.87 |
| 18 |
3625 |
CHAIN, 24 PITCHES Price: Call Us |
| 19 |
1542 |
BEARING, FLANGE Price: Call Us |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
3773 |
GEAR SPUR, 14 TEETH Price: Call Us |
| 21 |
3631 |
COLLAR CLUTCH Price: Call Us |
| 21 |
98-9303 |
CABLE-THROTTLE Price: $21.41 |
| 22 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
3828 |
KEY CLUTCH Price: Call Us |
| 23 |
1369 |
KEY WOODRUFF #3 Price: Call Us |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
3883 |
SHAFT INTERMEDIATE Price: Call Us |
| 24 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 25 |
1375 |
KEY, WOODRUFF, #61 Price: Call Us |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 26 |
3627 |
RING, RETAINING Price: Call Us |
| 26 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 27 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 27 |
3830 |
SPROCKET, 18 TEETH Price: Call Us |
| 28 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
3841 |
SPACER Price: Call Us |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 29 |
3786 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 30 |
3785 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
3867 |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 31 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 32 |
3783 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 33 |
3869 |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 34 |
3741 |
GEAR SPUR Price: Call Us |
| 35 |
3628 |
WASHER, PLAIN .640 X 1.37 X .061 Price: Call Us |
| 36 |
1423 |
WASHER, PLAIN .632 X 1.00 X .026 Price: Call Us |
| 37 |
3422 |
SPACER .630 X 1.00 X .169 Price: Call Us |
| 38 |
4286 |
ASSY GEAR COMB 12&35 TEETH Price: Call Us |
| 39 |
3877 |
SHAFT IDLER Price: Call Us |
| 40 |
3901 |
SPACER .635 X .875 X .755 Price: Call Us |
| 41 |
3645 |
SPROCKET, 9 TEETH Price: Call Us |
| 42 |
3853 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 43 |
3180 |
WASHER PLAIN Price: Call Us |
| 43 |
3184 |
WASHER, PLAIN .758 X 1.25 X .031 Price: Call Us |
| 43 |
3198 |
WASHER PLAIN Price: Call Us |
| 43 |
3408 |
WASHER PLAIN Price: Call Us |
| 43 |
3652 |
WASHER PLAIN Price: Call Us |
| 43 |
3653 |
WASHER PLAIN Price: Call Us |
| 43 |
3693 |
WASHER PLAIN Price: Call Us |
| 43 |
3732 |
WASHER PLAIN Price: Call Us |
| 43 |
3733 |
WASHER PLAIN Price: Call Us |
| 43 |
3734 |
WASHER PLAIN Price: Call Us |
| 43 |
3735 |
WASHER PLAIN Price: Call Us |
| 43 |
3736 |
WASHER PLAIN Price: Call Us |
| 43 |
3749 |
WASHER PLAIN Price: Call Us |
| 44 |
3882 |
SHAFT, DRIVE Price: Call Us |
| 45 |
3646 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 46 |
3707 |
GEAR SPUR, 15 TEETH Price: Call Us |
| 47 |
3866 |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 48 |
3719 |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 49 |
3868 |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 50 |
3683 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 51 |
1145 |
WASHER, PLAIN .632 X 1.00 X .060 Price: Call Us |
| 52 |
3191 |
SEAL FELT Price: Call Us |
| 53 |
3180 |
WASHER PLAIN Price: Call Us |
| 54 |
3880 |
AXLE LEFT HAND Price: Call Us |
| 55 |
3780 |
GEAR, MITER, 15 TEETH Price: Call Us |
| 56 |
3656 |
RING, RETAINING Price: Call Us |
| 57 |
3839 |
GEAR, SPUR, 32 TEETH Price: Call Us |
| 58 |
3919 |
SHAFT, CROSS Price: Call Us |
| 59 |
3781 |
GEAR, MITER, 15 TEETH Price: Call Us |
| 60 |
3881 |
AXLE, R.H. Price: Call Us |
| 61 |
3864 |
HOUSING LOWER Price: Call Us |
| 62 |
3920 |
PUCK, FRICTION Price: Call Us |
| 63 |
3276 |
DISC, BRAKE Price: Call Us |
| 64 |
3758 |
SPACER Price: Call Us |
| 65 |
3916 |
JAW, BRAKE Price: Call Us |
| 66 |
3843 |
PIN, DOWEL Price: Call Us |
| 67 |
3915 |
SCREW TAPPING Price: Call Us |
| 68 |
3768 |
LEVER, ACTUATING Price: Call Us |
| 69 |
3760 |
WASHER, PLAIN .321 X 1.00 X .055 Price: Call Us |
| 70 |
3917 |
BRACKET, ANTI-ROTATION Price: Call Us |
| 71 |
3847 |
LOCKNUT 5/16-24 Price: Call Us |
| 72 |
3724 |
SCREW TAPPING Price: Call Us |
| 73 |
3906 |
WASHER PLAIN Price: Call Us |
| 74 |
3907 |
PUCK, FRICTION Price: Call Us |
