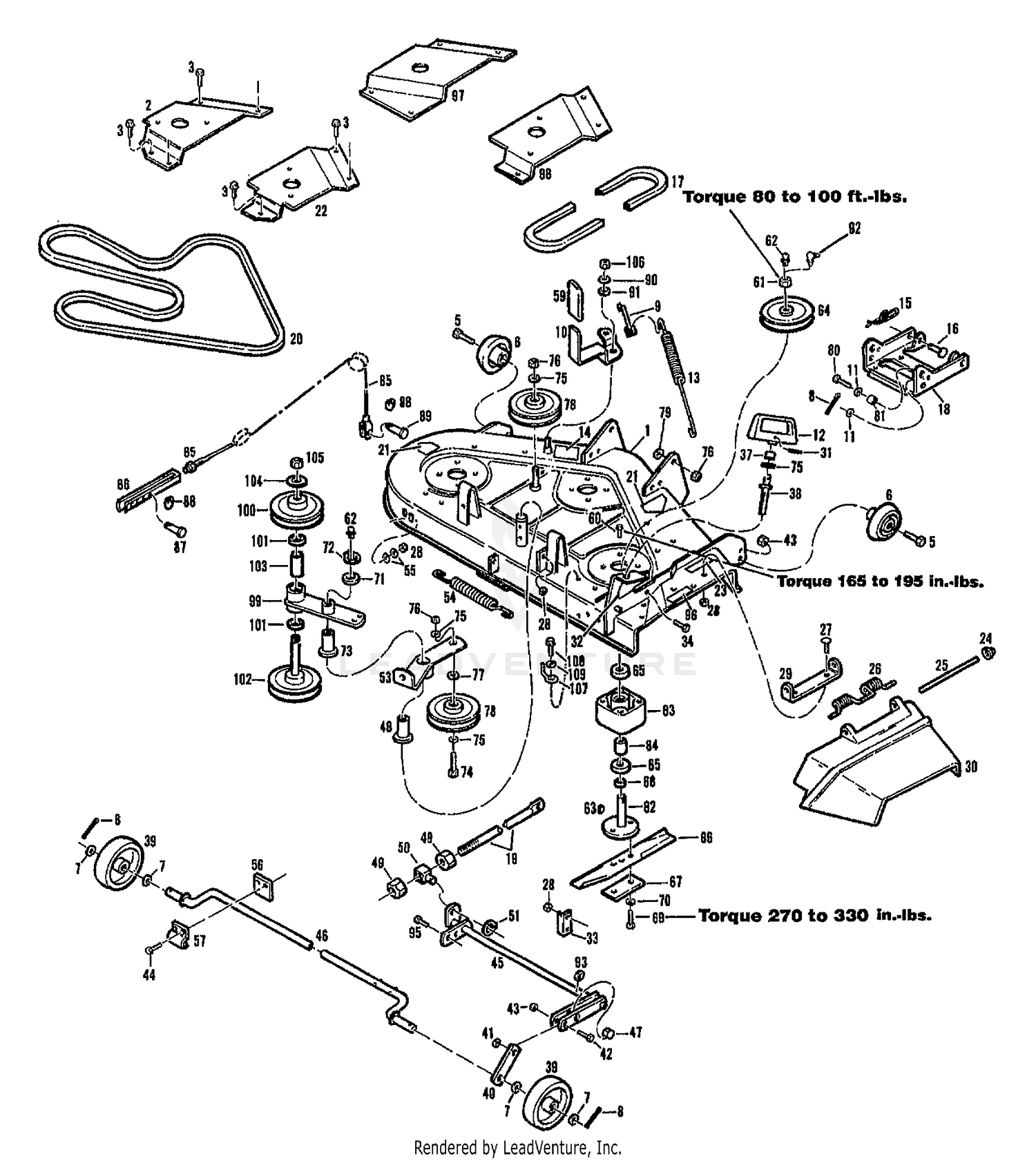

| Ref | Part Number | Description |
|---|
| 1 |
1764185 |
ASSM-MOWER DECK W/DECALS {14000} Price: Call Us |
| 1 |
1764186 |
ASSM-MOWER DECK W/DECALS {14001} Price: Call Us |
| 2 |
1762102001 |
COVER BELT (LH) Not Available Price: |
| 2 |
1762216001 |
BELT COVER Not Available Price: |
| 3 |
1724492 |
SCREW Not Available Price: |
| 5 |
1763219 |
SCR-SHLDR 3/8-16 Price: $8.93 |
| 6 |
1762138 |
WHEEL ANTISCALP NLAUD Not Available Price: |
| 9 |
1761797 |
ROD-IDLER Not Available Price: |
| 10 |
1761798001 |
LEVER Price: Call Us |
| 11 |
936-0456 |
FLAT WASHER Not Available This part replaces 1749937. Price: |
| 12 |
1754149 |
HANDLE-HEIGHT ADJ Not Available Price: |
| 13 |
1762141 |
SPRING-EXTENSION Price: Call Us |
| 14 |
1757419 |
DECAL BELT DRIVE Not Available Price: |
| 15 |
714-3020 |
Pin-Internal Cotte This part replaces 1751909. Price: $3.90 |
| 16 |
711-1626 |
CLEVIS PIN .625 x 2.313 Not Available This part replaces 1752308. Price: |
| 17 |
1772984 |
BELT-V This part replaces 1760958. Price: $29.87 |
| 18 |
1761154001 |
ASSM-MOWER SUPPORT Price: Call Us |
| 19 |
1761897 |
ROD-ADJUSTING Price: Call Us |
| 20 |
1760959 |
BELT-V {14000} Price: $48.92 |
| 20 |
1760960 |
BELT 1/2 x 109.55" Not Available Price: |
| 21 |
1739687 |
DECAL-OPEI CAUTION Price: $6.36 |
| 22 |
1762136001 |
COVER-BELT RH {14001} Price: Call Us |
| 22 |
1762215001 |
COVER-BELT RH {14000} Price: Call Us |
| 23 |
1744491 |
DECAL CUTTING LIN Not Available Price: |
| 24 |
726-0100 |
Push Cap This part replaces 1724791. Price: $3.75 |
| 25 |
1756760 |
ROD Not Available Price: |
| 26 |
1756596 |
SPRING TORSION Not Available Price: |
| 28 |
1732499 |
NUT-TOP/LK 5/16-18 ZP Price: $3.49 |
| 29 |
1728005001 |
BRACKET HINGE Not Available Price: |
| 30 |
1755750 |
DEFLECTOR Not Available Price: |
| 32 |
1762143 |
DECAL-HEIGHT ADJUS Not Available Price: |
| 33 |
1743726 |
RETAINER-S Not Available Price: |
| 37 |
1762886 |
SPACER-HANDLE Not Available Price: |
| 38 |
1761847 |
ROD-ADJUST Not Available Price: |
| 39 |
734-04005 |
CASTER WHEEL Not Available This part replaces 1743891. Price: |
| 40 |
1744026001 |
LINK-WHEEL SUPT Price: Call Us |
| 41 |
1763403 |
SPACER-.75X.39X.545 Price: Call Us |
| 45 |
1762003001 |
ARM-HEIGHT ADJUST Price: Call Us |
| 46 |
1744025 |
SHAFT-WHEE Not Available Price: |
| 47 |
1762882 |
PIVOT SCRE Not Available Price: |
| 48 |
1761999 |
BEARING-FLANGE Price: $17.34 |
| 50 |
1743728 |
BLOCK-PIVOT Price: Call Us |
| 51 |
1185649 |
RETAINING RING Not Available Price: |
| 53 |
1762008 |
ASSM-ARM Price: Call Us |
| 54 |
1716777 |
EXTENSION SPRING Not Available Price: |
| 55 |
1185261 |
WASHER-LOC Not Available Price: |
| 56 |
1744023 |
PLATE-DOUBLER Price: Call Us |
| 57 |
1744024001 |
SUPPORT-SHAFT Price: Call Us |
| 59 |
1734591 |
GRIP Not Available Price: |
| 62 |
937-0146 |
Grease Fitting This part replaces 1185976. Price: $4.80 |
| 64 |
1752310 |
SHEAVE Not Available Price: |
| 65 |
1185828 |
BEARING-BALL Price: $41.20 |
| 67 |
1724051 |
PLATE Not Available Price: |
| 68 |
N/A |
WASHER N/A |
| 70 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 1100243. Price: $3.33 |
| 72 |
716-0111 |
External Retainer Ring This part replaces 1180025. Price: $5.78 |
| 73 |
1761998 |
FLANGE-BEARING Price: Call Us |
| 77 |
1738490 |
FLAT WASHER SPECIA Not Available Price: |
| 78 |
1752354 |
PULLEY-IDLER Price: $74.51 |
| 79 |
1724929 |
WASHER THR Not Available Price: |
| 81 |
1730681 |
SPACER Not Available Price: |
| 82 |
1742625 |
ASSM-BLADE SHAFT Price: $293.02 |
| 83 |
1724029 |
SPINDLE HOUSING Price: $154.72 |
| 84 |
1746869 |
SPACER Price: $17.91 |
| 85 |
1747321P |
MOWER DECK CABLE ASSEMBLY Not Available This part replaces 1747321. Price: |
| 86 |
1916253001 |
ASSEMBLY-YOKE BLACK Not Available This part replaces 1761243. Price: |
| 87 |
1724632 |
CLEVIS PIN Not Available Price: |
| 88 |
1751908 |
RING COTTER Not Available Price: |
| 89 |
1112587 |
PIN-CLEVIS .375 X .937 ZP Price: $4.29 |
| 90 |
1708755 |
WASHER-.875X.39X.134 Not Available Price: |
| 91 |
1185831 |
SHIM WASHER .88X.5 Not Available Price: |
| 91 |
1702646 |
FLAT WASHER 1.0X.516X.031 Not Available Price: |
| 92 |
737-3004 |
Fitting, Lube, 90ø 1/4-28 Tapper Thd This part replaces 1731504. Price: $10.22 |
| 93 |
1763097 |
WASHER-PLA Not Available Price: |
| 96 |
1763407 |
DECAL DANGER Not Available Price: |
| 97 |
1762102001 |
COVER BELT (LH) Not Available Price: |
| 98 |
1762136001 |
COVER-BELT RH {14001} Price: Call Us |
| 99 |
1763003 |
ASSM-MOUNTING ARM Price: Call Us |
| 100 |
1762915 |
ASSM-SHEAVE & HUB Price: Call Us |
| 101 |
941-0600 |
BALL BEARING This part replaces 1185064. Price: $23.34 |
| 102 |
1763002 |
ASSEMBLY-SHEAVE & SHAFT Not Available Price: |
| 103 |
1762017 |
TUBE Price: Call Us |
| 104 |
1738490 |
FLAT WASHER SPECIA Not Available Price: |
| 105 |
712-3022 |
Hex Lock Nut, 1/2-13 This part replaces 1734514. Price: $3.61 |
| 106 |
712-3054 |
HEX LOCK NUT 3/8-2 This part replaces 1764070. Price: $3.90 |
| 107 |
1720878 |
GUIDE-BELT {14001} Price: Call Us |
| 108 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 {14001} Not Available Price: |
| 1772144 |
MOWER |
BLADE 15.31" LG Not Available This part replaces 1727926. Price: 1772144 |
| 1772145 |
BLADE-CUTTER |
Not Available This part replaces 1738571. Price: 1772145 |
