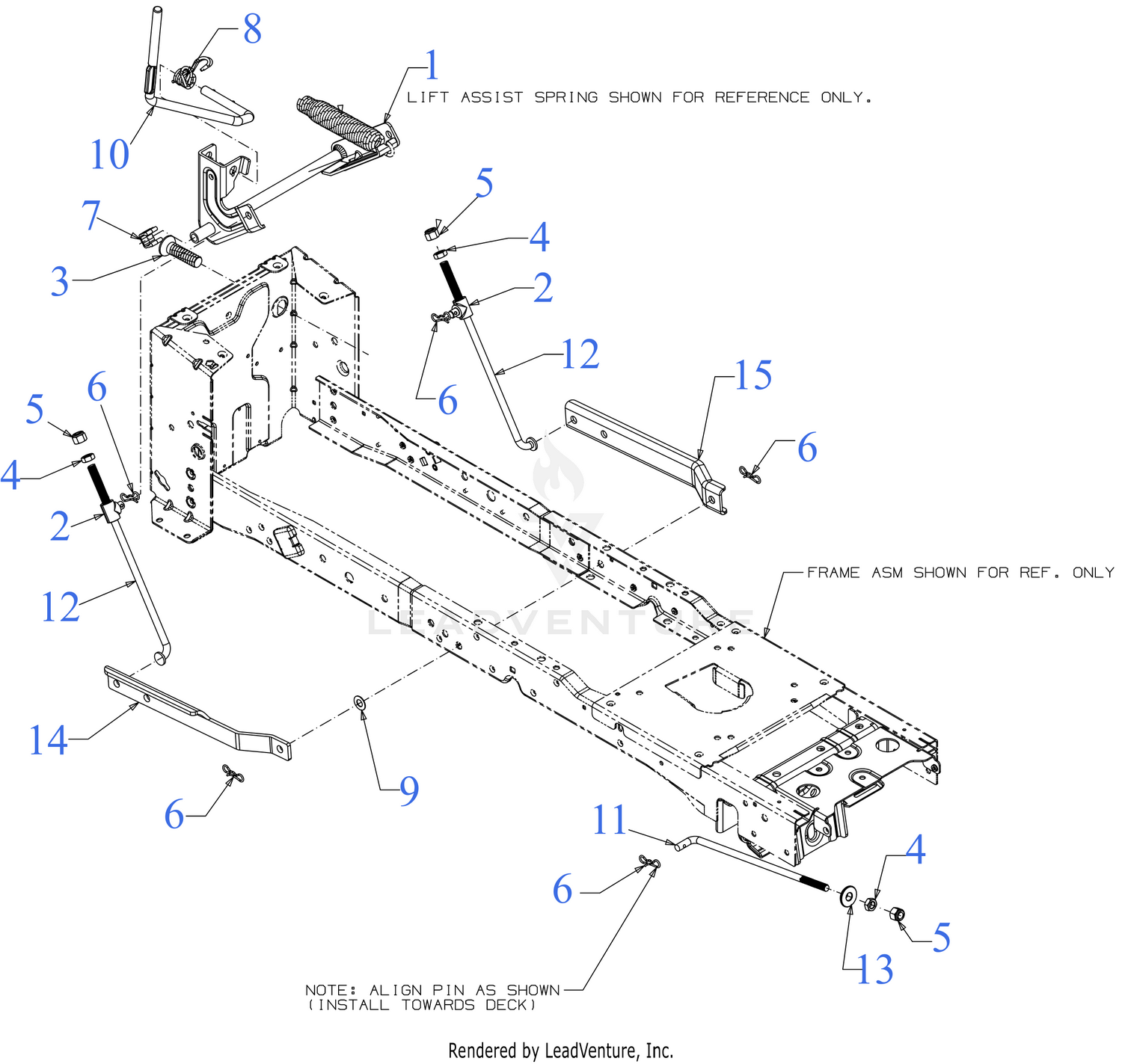

| Ref | Part Number | Description |
|---|
| 1 |
983-05077 |
LIFT SHAFT ASSEMBLY Price: $60.03 |
| 2 |
711-06143A |
LIFT ROD FERRULE Price: $11.98 |
| 3 |
711-06346A |
LIFT SPRING INSERT Price: $10.13 |
| 4 |
712-3048 |
HEX NUT Price: $4.08 |
| 5 |
712-3083 |
HEX LOCK NUT NYLON Price: $4.05 |
| 6 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 7 |
731-09629A |
SPACER-LIFT SHAFT Price: $3.66 |
| 8 |
732-05086A |
TORSION SPRING Price: $5.52 |
| 9 |
736-04224 |
FLAT WASHER .508X1.000X.040 Price: $3.70 |
| 10 |
747-06186A |
DECK LIFT HANDLE Price: $27.43 |
| 11 |
747-06247C |
DECK FRONT LIFT ROD This part replaces 747-06247B. Price: $17.17 |
| 12 |
747-06392A |
ADJUSTMENT LIFT ROD Price: $16.59 |
| 13 |
748-04069A |
DECK LIFT PIVOT CUP Price: $4.93 |
