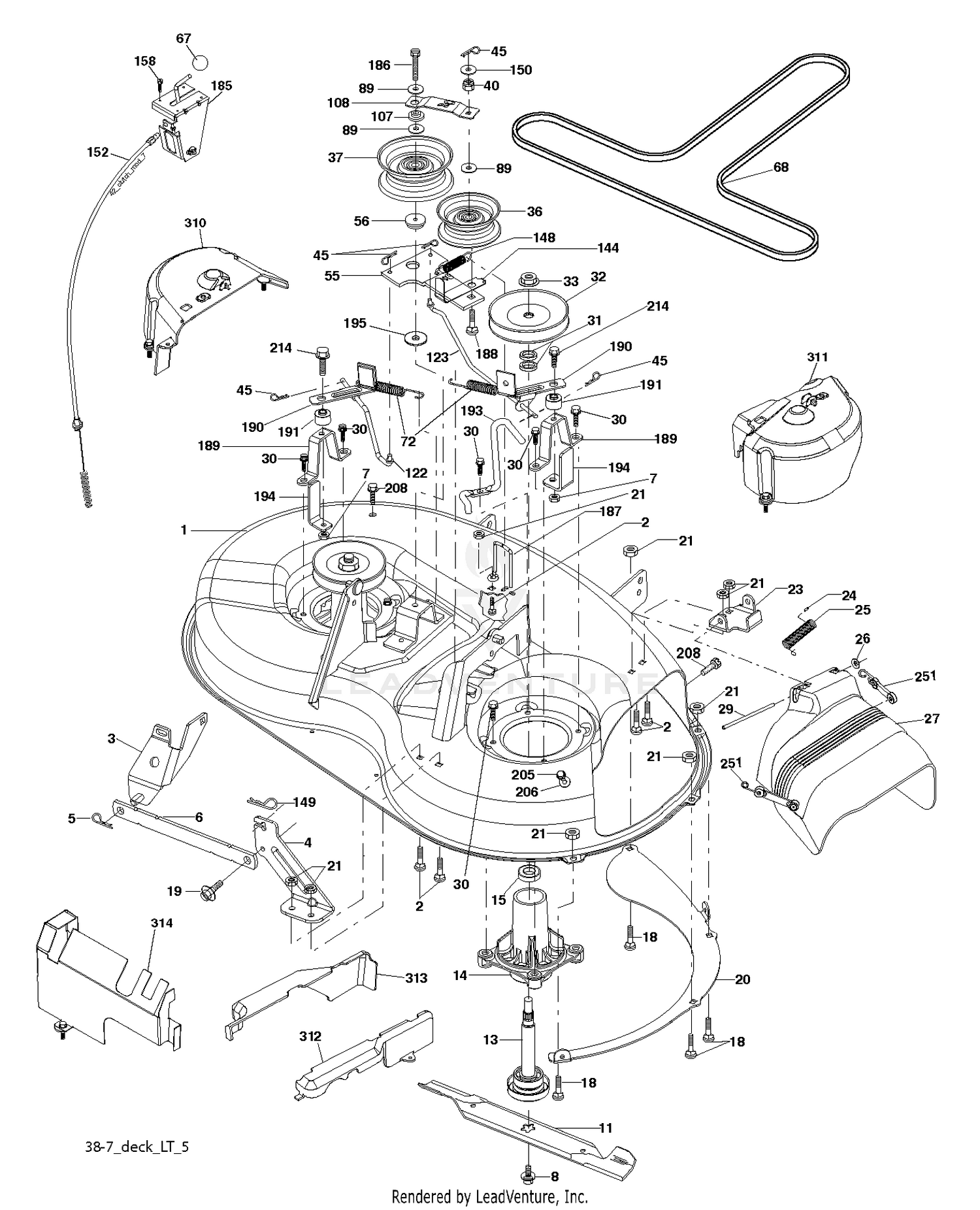

MOWER DECK / CUTTING DECK
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 574209501 | CUTTING DECK Price: $229.99 |
| 1 | 93-7498 | PLUG-PLASTIC Price: $25.26 |
| 2 | 237-101 | O-RING Price: $2.80 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 119-6968 | DIPSTICK-OIL Price: $27.53 |
| 3 | 544449301 | PLUG Price: $69.99 |
| 4 | 115-9793 | BREATHER Price: $53.38 |
| 4 | 506570104 | BOLT Price: $4.99 |
| 5 | 576384101 | BLADE HOUSING ASSY Price: $84.99 |
| 6 | 119-0017 | TANK-HYD Price: $1,499.14 |
| 6 | 576384201 | BEARING HOUSING Price: $29.99 |
| 7 | 576384301 | SHAFT Price: $29.99 |
| 8 | 104-7546 | TANK STRAINER ASM Price: $170.48 |
| 8 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 340-4 | FITTING-STRAIGHT Price: $11.58 |
| 10 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 11 | 120-9738 | SCREW-HH This part replaces 322-11. Price: $0.84 |
| 11 | 576384201 | BEARING HOUSING Price: $29.99 |
| 12 | 107-4543 | CLAMP Price: $13.47 |
| 12 | 576384302 | SHAFT Price: $21.99 |
| 13 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 13 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 14 | 61-2790 | FILTER-SCREEN Price: $49.91 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 108-1605 | BUMPER-RECESS Price: $10.02 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 504188110 | BLADE Price: $32.99 |
| 25 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 36 | 594978001 | BELT This part replaces 589514601. Price: $59.99 |
| 37 | 544096203 | BELT COVER C112 HUSQVARNA-GREY This part replaces 544096201. Price: $44.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 544238105 | LABEL Price: $3.99 |
| 74 | 506929001 | DECAL Price: $3.99 |
| 75 | 535437401 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
| 77 | 506778601 | PULLEY Price: $49.99 |
