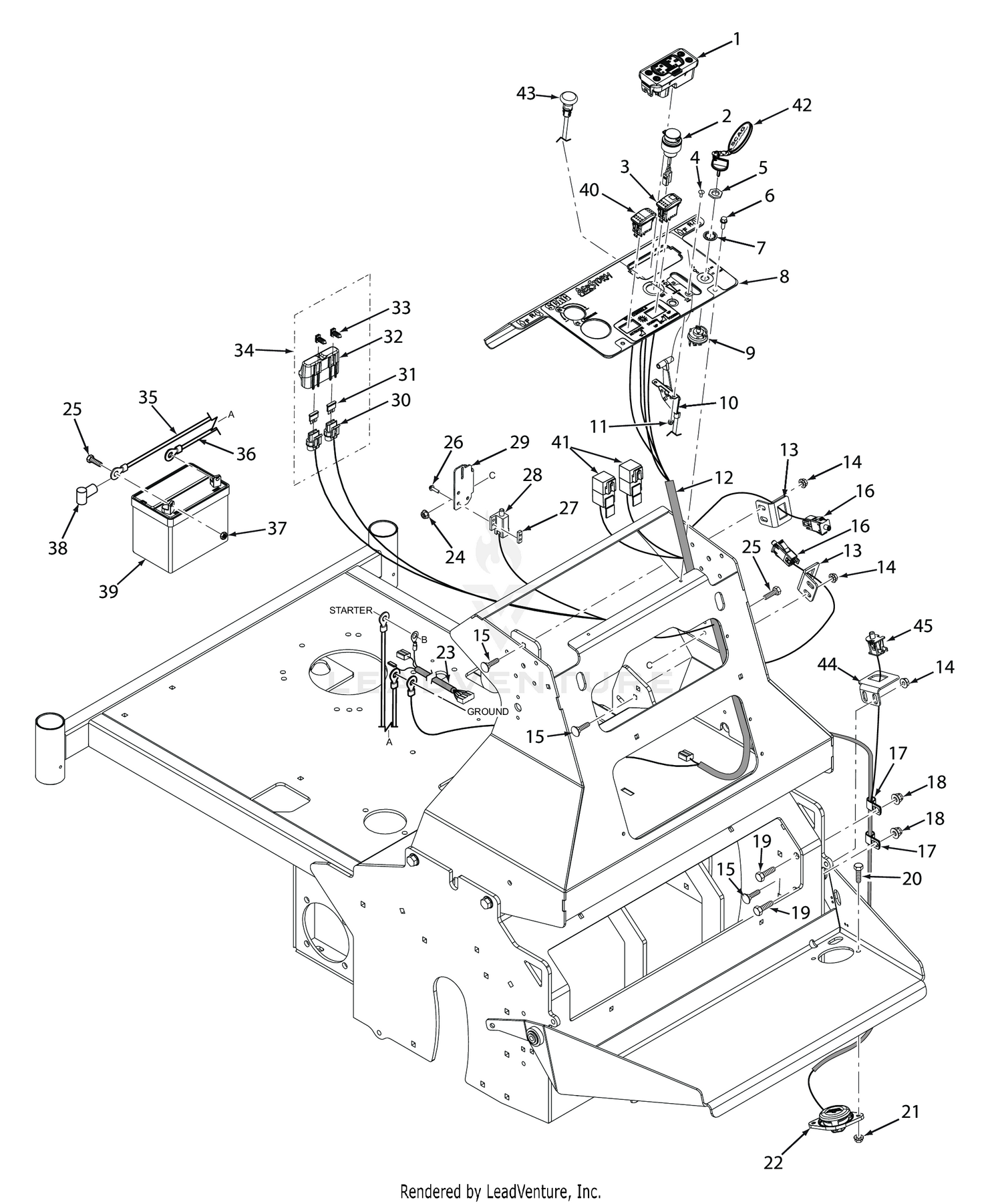

| Ref | Part Number | Description |
|---|
| 1 |
3-7390 |
DISCONTINUED Price: Call Us |
| 1 |
484721 |
Tiger Eye, Cluster Gauge Price: Call Us |
| 2 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 2 |
485568 |
Power Plug, 12V Price: Call Us |
| 3 |
487484 |
Switch, Rocker - Lighted Price: Call Us |
| 3 |
5-3993 |
DISCONTINUED Price: Call Us |
| 4 |
04003-43 |
Bolt, Carriage #10-24 x 1/2" Price: Call Us |
| 4 |
5-3063 |
DISCONTINUED Price: Call Us |
| 5 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 5 |
48017-04 |
Nut, 5/8-32 Special Price: Call Us |
| 6 |
04011-14 |
Screw, Self-Tapping 1/4-20 x 3/4 Price: Call Us |
| 6 |
5-3990 |
DISCONTINUED Price: Call Us |
| 7 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 7 |
48017-03 |
LOCK WASHER, 5/8" INTERNAL TOOTH Price: Call Us |
| 8 |
3-7254-01 |
DRAW BAR BRACKET This part replaces 3-7254. Price: $227.92 |
| 8 |
463520 |
Instrument Panel w/Decal Price: Call Us |
| 9 |
3211-5 |
SCREW-HH Price: $0.88 |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 10 |
484665 |
Throttle Cable Price: Call Us |
| 11 |
04021-26 |
Nut, Elastic Stop #10-24 Price: Call Us |
| 11 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 12 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 12 |
487481 |
Wire Harness Price: Call Us |
| 13 |
429195 |
Bracket, Height Switch Price: Call Us |
| 13 |
5-1111 |
CASTOR WHEEL BUSHING Price: $10.11 |
| 14 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 14 |
3-7410 |
DISCONTINUED Price: Call Us |
| 15 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 15 |
5-3982 |
DISCONTINUED Price: Call Us |
| 16 |
3213-8 |
SCREW-HH Price: $2.58 |
| 16 |
486365 |
Switch, Plunger, Double Pole, Snap Price: Call Us |
| 17 |
48030-15 |
Wire Loom Price: Call Us |
| 17 |
5-1091 |
SPACER Price: $4.98 |
| 18 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 18 |
3219-4 |
NUT-HEX Price: $2.65 |
| 19 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 19 |
5-1090 |
DRAWBAR CLAMP -PLT Price: $41.53 |
| 20 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 20 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 21 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 21 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 22 |
3219-5 |
NUT-HEX Price: $1.22 |
| 22 |
487354 |
Switch, Foot Price: Call Us |
| 23 |
3212-10 |
SCREW-HH Price: $2.92 |
| 23 |
485673 |
Wire Harness Adapter, Kohler - 23CV Price: Call Us |
| 24 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 24 |
5-1112 |
DRAWBAR PIN Price: $9.77 |
| 25 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 25 |
5-3987 |
DISCONTINUED Price: Call Us |
| 26 |
04010-12 |
Screw, Hex-Slotted Washer Head #10 32 x 3/4" Price: Call Us |
| 26 |
3256-30 |
WASHER-FLAT Price: $5.73 |
| 27 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 27 |
422373 |
Plate, Threaded Price: Call Us |
| 28 |
481637 |
Switch, Interlock, Park Brake Normally Open Price: Call Us |
| 28 |
8-0280 |
DISCONTINUED Price: Call Us |
| 29 |
3272-9 |
PIN-COTTER Price: $0.20 |
| 29 |
427269 |
Bracket, Neutral Switch Price: Call Us |
| 30 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 30 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 31 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 32 |
483571 |
Cover, Sealed Double Price: Call Us |
| 33 |
428588 |
Mounting Bracket, Operator Presence Price: Call Us |
| 35 |
48029-38 |
Cable, Battery - Red 60" w/Braid Price: Call Us |
| 36 |
48029-19 |
Battery Cable, Black Price: Call Us |
| 37 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 38 |
48126 |
RUBBER BOOT Price: Call Us |
| 39 |
483665 |
Battery, 350 CCA (not available through Scag) Price: Call Us |
| 40 |
487483 |
Switch, Rocker Price: Call Us |
| 41 |
483013 |
Relay, 12V 40 AMP Standard Price: Call Us |
| 42 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 43 |
483976 |
Choke Control (excludes EFI models) Price: Call Us |
| 44 |
429157 |
Mounting Bracket, Operator Presence Price: Call Us |
