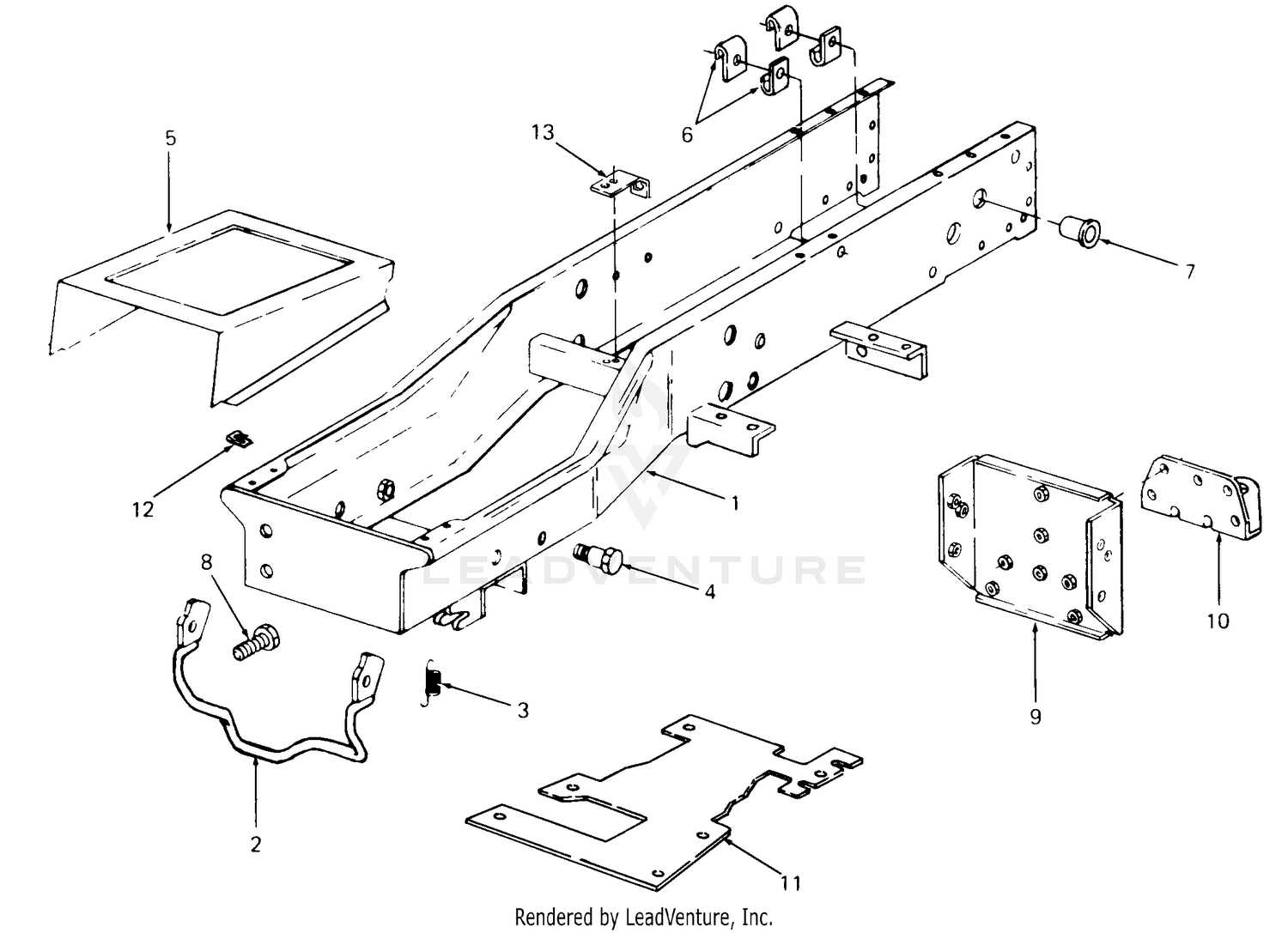

| Ref | Part Number | Description |
|---|
| 1 |
323-9 |
SCREW-HH Price: $1.29 |
| 1 |
532140820 |
DECAL DASH Price: $6.02 |
| 1 |
703-2012 |
FRAME ASSEMBLY Not Available Price: |
| 2 |
532146451 |
DECAL, BATTERY DANGER Price: $2.38 |
| 2 |
703-1726 |
LATCH ASSEMBLY Not Available Price: |
| 2 |
76-9100 |
SPACER Price: $4.07 |
| 3 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 3 |
532151549 |
Decal Hood LH Price: Call Us |
| 3 |
932-3002 |
Extension Spring, .51 x 2.12 This part replaces 732-3002. Price: $7.93 |
| 4 |
3220-3 |
NUT-HJ Price: $0.28 |
| 4 |
532151548 |
Decal Hood RH Price: Call Us |
| 4 |
738-3001 |
BOLT-SHOUL Not Available Price: |
| 5 |
532143959 |
DECAL HOOD LH Price: $3.57 |
| 5 |
759-3644 |
KIT-FRAME COVER Not Available Price: |
| 5 |
84-0690 |
DISCONTINUED Price: Call Us |
| 6 |
726-3008 |
Clip, Cable Price: $4.26 |
| 6 |
77-4260 |
LINK-SHIFT Price: $48.90 |
| 7 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 7 |
532143958 |
DECAL HOOD RH Price: $3.57 |
| 7 |
723-3042 |
SNAP BUSHING 7/8 Not Available Price: |
| 8 |
532150617 |
DECAL FENDER HUSQ Price: $2.39 |
| 8 |
710-3182 |
SCREW 1/2-20X1.0 GR5 Not Available Price: |
| 8 |
86-5420 |
DISCONTINUED Price: Call Us |
| 9 |
3-1506 |
BUSHING Price: $2.42 |
| 9 |
532133795 |
DECAL CAUTION Price: $4.62 |
| 9 |
703-1943 |
PLATE ASSY, HITCH Not Available Price: |
| 10 |
532101892 |
DECAL Price: $6.60 |
| 10 |
703-0904-0498 |
DRAW BAR (CUB YELLOW) Not Available This part replaces 703-0904. Price: |
| 10 |
84-1610-03 |
SUPPORT-ROD, SHIFT This part replaces 84-1610. Price: $30.56 |
| 11 |
532137259 |
DECAL WARNING (ENGLISH/FRENCH) Price: $8.99 |
| 11 |
703-2156 |
BAFFLE-LOWER Not Available Price: |
| 11 |
84-0700 |
ROD-SHIFT Price: $50.33 |
| 12 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 12 |
726-3039 |
NUT Not Available Price: |
| 13 |
703-0026C |
SWITCH BRACKET Not Available This part replaces 703-0026B. Price: |
| 13 |
84-1600 |
DISCONTINUED Price: Call Us |
| 14 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 15 |
302-14 |
VENT Price: $8.03 |
| 15 |
532136832 |
DECAL V-BELT SCHEMATIC Price: $3.99 |
| 16 |
2812-11 |
BUSHING-REDUCER Price: $14.12 |
| 17 |
532273216 |
DECAL Price: $5.99 |
| 18 |
289-50 |
DISCONTINUED Price: Call Us |
| 19 |
2813-14 |
PIPE-ELBOW, 90 Price: $25.56 |
| 20 |
289-44 |
NIPPLE-PIPE Price: $7.27 |
| 21 |
27-3710 |
DIPSTICK Price: $24.62 |
| 22 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 23 |
86-5750 |
DISCONTINUED Price: Call Us |
| 24 |
237-30 |
O-RING Price: $2.50 |
| 25 |
340-101 |
FITTING-HYD, 45 DEG Price: $31.00 |
| 27 |
237-167 |
O-RING Price: $5.78 |
| 28 |
237-79 |
O-RING Price: $5.46 |
| 29 |
92-5830 |
TRACTION HOSE ASM Price: $199.33 |
| 30 |
92-5841 |
TRACTION HOSE ASM Price: $143.84 |
| 32 |
340-167 |
FITTING-HYD, TEE Price: $93.58 |
| 33 |
237-65 |
O-RING Price: $2.50 |
| 34 |
340-155 |
FITTING-STRAIGHT Price: $28.90 |
| 35 |
86-5860 |
NIPPLE Price: $42.90 |
| 36 |
353-947 |
CAP-DUST, RUBBER Price: $7.73 |
| 37 |
92-2556 |
MOTOR-HYD Price: $2,817.26 |
| 38 |
323-7 |
SCREW-HH Price: $0.65 |
| 39 |
82-5380 |
SHIM-PINION, .045 Price: $3.97 |
| 40 |
32151-62 |
RING-RETAINING Price: $1.49 |
| 41 |
76-6040 |
PLUG-PIPE Price: $3.65 |
| 42 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 43 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 44 |
325-2 |
SCREW-HH Price: $1.02 |
| 45 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 46 |
92-1364 |
GUIDE-PIN, SWITCH Price: $50.60 |
| 47 |
92-1365 |
PLUNGER-SWITCH Price: $52.46 |
| 48 |
237-30 |
O-RING Price: $2.50 |
| 49 |
2412-150 |
CLIP-J Price: $1.63 |
| 50 |
43-8610 |
GUIDE Price: $23.35 |
| 51 |
92-1366 |
SPRING-COMPRESSION Price: $9.78 |
| 532145246 |
PAD |
FOOTREST Price: $4.99 532145246 |
| 581724901 |
DECAL.TRACTOR.6MIL.H/ADJUST |
This part replaces 532138311. Price: $9.99 581724901 |
