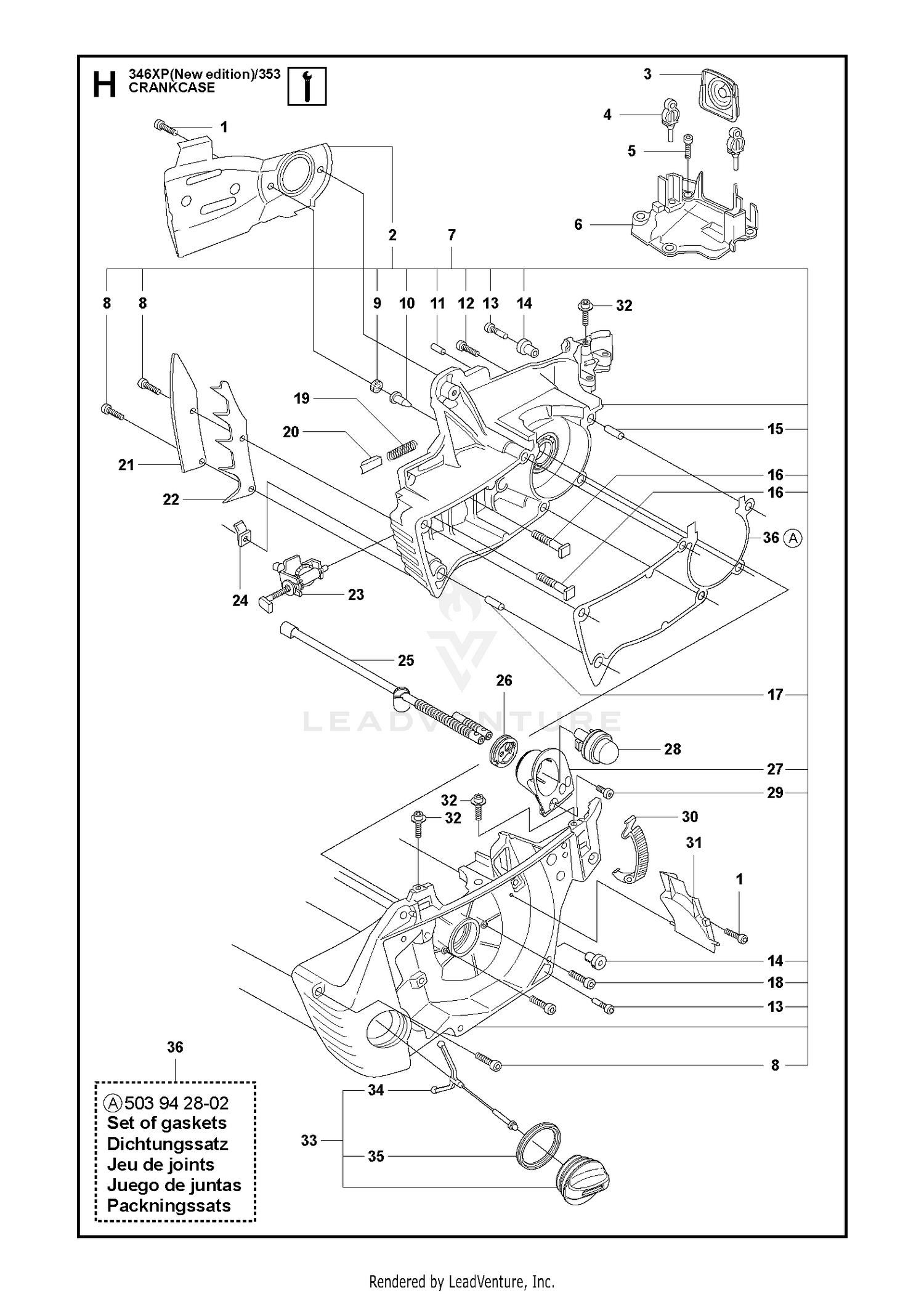

CRANKCASE
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503217412 | SCREW Price: $2.99 |
| 2 | 537405601 | CHAIN GUIDE PLATE Price: $9.99 |
| 3 | 537146501 | BELLOWS Price: $12.99 |
| 4 | 597909701 | DAMPNER This part replaces 503869301. Price: $5.99 |
| 5 | 503217512 | SCREW Price: $3.99 |
| 6 | 544360701 | CARBURETOR AREA BASE Price: $9.99 |
| 7 | 537171905 | CRANKCASE ASSY Price: $229.00 |
| 8 | 503200776 | SCREW Price: $3.99 |
| 9 | 537403502 | SINTERED BRONZE FILTER This part replaces 537403501. Price: $2.99 |
| 10 | 530026119 | VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 11 | 721120730 | PIN Price: $3.99 |
| 12 | 503200870 | SCREW Price: $2.99 |
| 13 | 503215101 | SCREW Price: $3.99 |
| 14 | 503869201 | MOVEMENT LIMITER Price: $7.99 |
| 15 | 503905601 | Sleeve Price: $3.50 |
| 16 | 503875401 | BOLT Price: $4.99 |
| 17 | 503905601 | Sleeve Price: $3.50 |
| 18 | 503202516 | SCREW Price: $2.99 |
| 19 | 503436501 | LOCK SPRING Price: $3.99 |
| 20 | 503892401 | CATCH Price: $5.99 |
| 21 | 503930401 | BUMPER Price: $7.99 |
| 22 | 503905901 | SPIKE Price: $7.99 |
| 23 | 537071201 | CHAIN TENSIONER Price: $17.99 |
| 24 | 503886301 | CHAIN CATCHER Price: $4.99 |
| 25 | 544331002 | HOSE This part replaces 544331001. Price: $9.99 |
| 26 | 504010901 | LINING Price: $19.99 |
| 27 | 504071503 | BRACKET Price: $6.99 |
| 28 | 503936601 | AIR PURGE BUBBLE Price: $9.99 |
| 29 | 544449701 | SCREW IHSCT Price: $5.99 |
| 31 | 503888601 | DEFLECTOR Price: $5.99 |
| 32 | 503213901 | SCREW Price: $3.99 |
| 34 | 503578901 | TANK LOCK Price: $4.99 |
| 35 | 501626801 | OILCAP GASKET Price: $3.99 |
