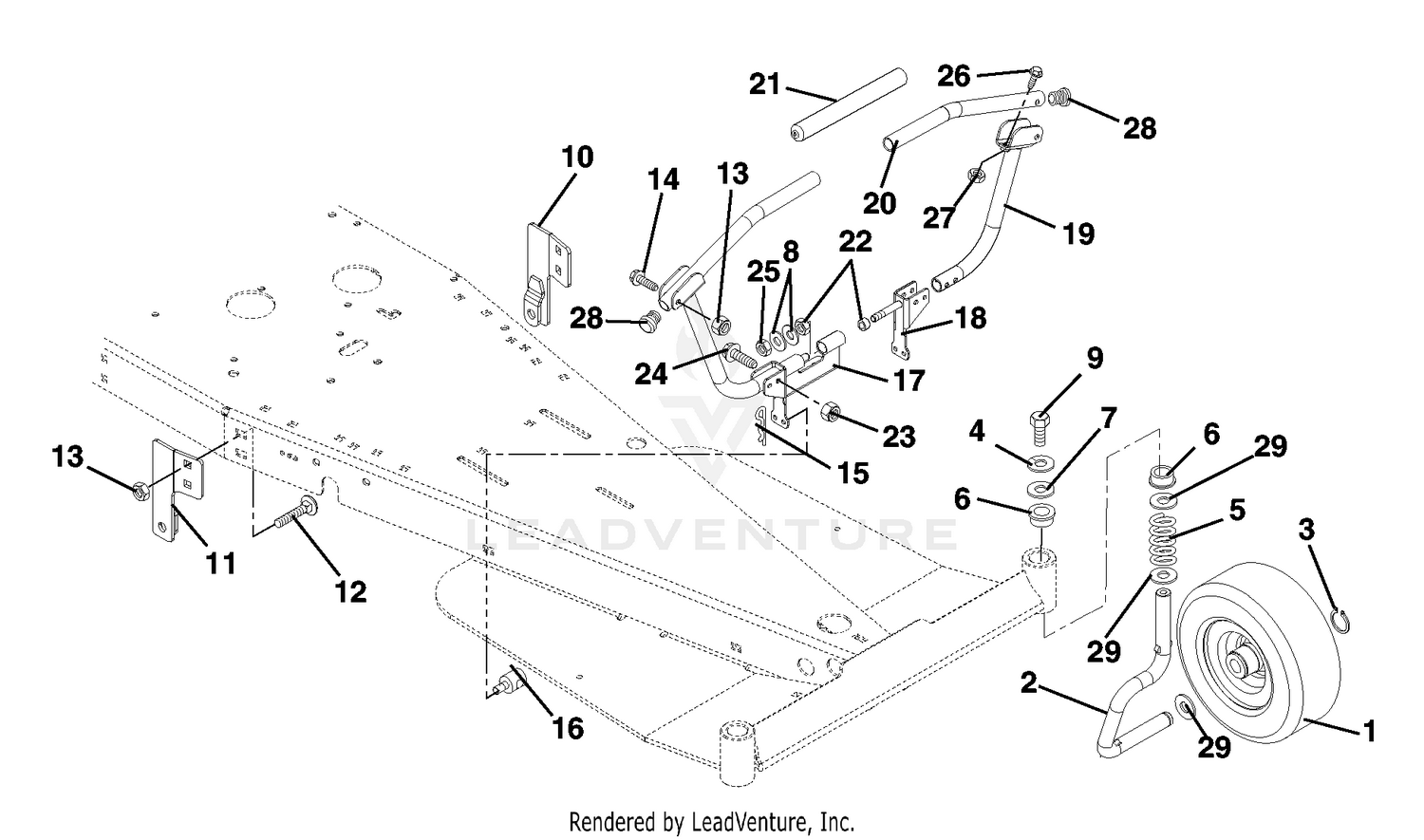

| Ref | Part Number | Description |
|---|
| 1 |
07130100 |
WHL 9X3.50 This part replaces 045205. Price: $104.45 |
| 2 |
01594800 |
SPINDLE, AXLE LH Price: $41.60 |
| 3 |
05707400 |
RG-RTNG-EXT .750X.050 This part replaces 036278. Price: $2.45 |
| 4 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 5 |
02765800 |
SPRING, SUSPENSION Price: $39.95 |
| 6 |
01591100 |
BUSHING-1"X.75"X1" Price: $8.95 |
| 7 |
06401121 |
WSHR,FLT .406X1.375X.135 ZCC This part replaces 06442400. Price: $5.45 |
| 8 |
06418100 |
WSHR-HDND-STL-THR.515X.97X.062 Price: $3.45 |
| 9 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 10 |
02773851 |
WLDM'T, DECK LINK LH Price: $9.95 |
| 11 |
02773751 |
WLDM'T, DECK LINK RH Price: $12.95 |
| 12 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06226600. Price: $2.45 |
| 13 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06544500. Price: $1.45 |
| 14 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC This part replaces 05958500. Price: $1.45 |
| 15 |
06700223 |
PIN, HAIR #225 .072X1.09 This part replaces 06714800. Price: $0.45 |
| 16 |
01596400 |
TRUNNION, BRAKE .31-18 UNC Price: $40.95 |
| 17 |
01595600 |
WLDM'T STEERING PIVOT Price: $9.95 |
| 18 |
01595700 |
WLDM'T HANDLEBAR PIVOT Price: $30.75 |
| 19 |
01607151 |
WLDM'T HANDLEBAR Price: $69.95 |
| 21 |
01570000 |
GRIP - HANDLEBAR Price: $15.45 |
| 22 |
05503100 |
BSHG-FLG.500X.750X.750X1.000BR Price: $8.95 |
| 23 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06544400. Price: $1.45 |
| 24 |
05901710 |
BLT, HEX .31-18X1.50 G5 ZCC This part replaces 05952400. Price: $1.45 |
| 25 |
06544000 |
NUT-LK-JAM-NYL .50-20 GR2 YWZC Price: $2.95 |
| 26 |
05980700 |
SCR-SKH .31-18X2.00 GR8 Price: $3.20 |
| 27 |
06500909 |
NUT-JAM .312-18 G2 ZCC This part replaces 06536100. Price: $0.95 |
| 28 |
07533300 |
CAPLUG, HANDLEBAR Price: $2.45 |
| 01594700 |
SPINDLE, |
AXLE RH Price: $41.55 01594700 |
