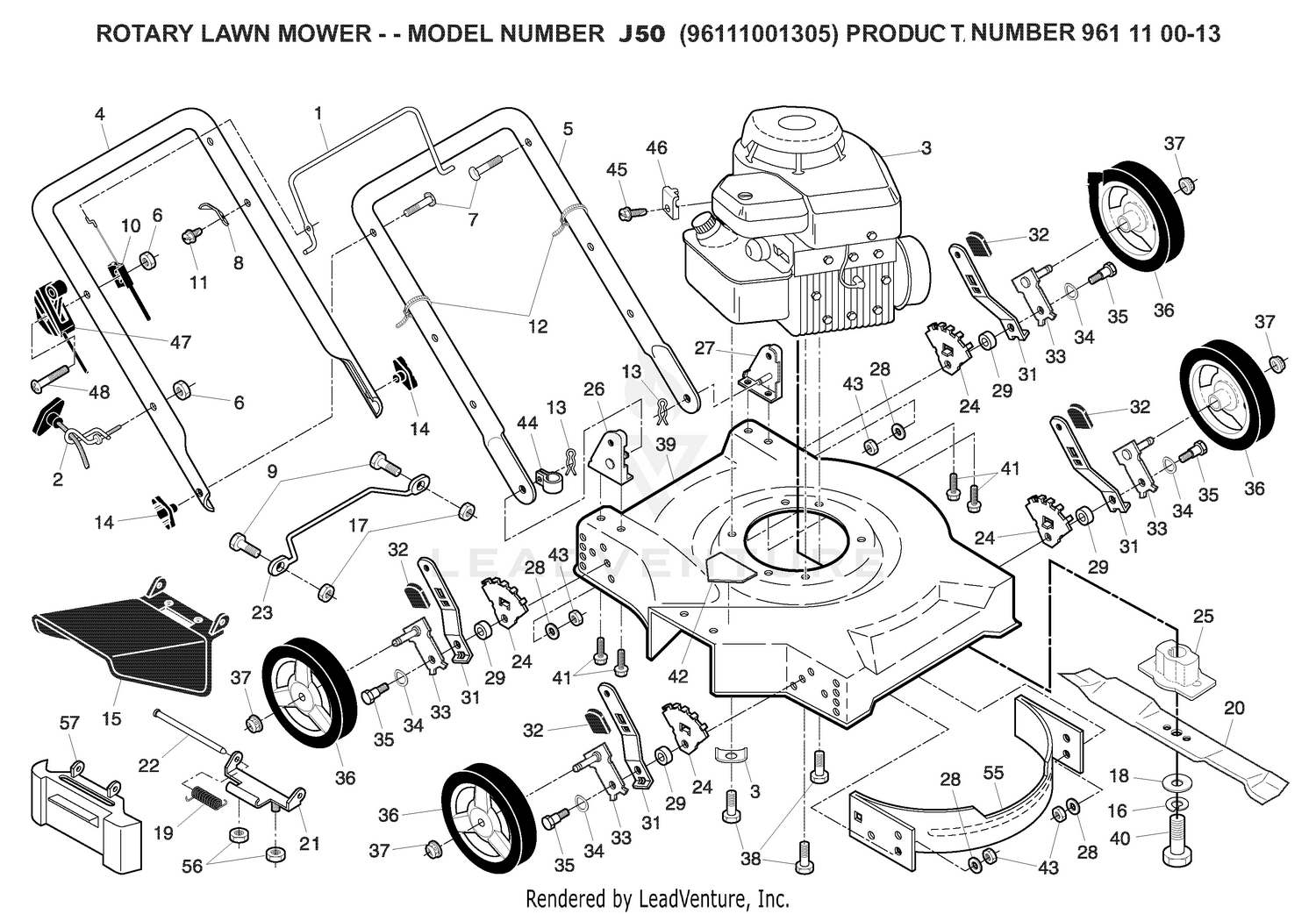

| Ref | Part Number | Description |
|---|
| 1 |
532196025 |
BAIL.CONT.D.STRAIGHT.PUSH.BLK Price: $9.99 |
| 2 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 3 |
532125078 |
WASHER.ENGINE.BZP Price: $4.99 |
| 4 |
532196024 |
NEEDS DESCRIPTION Price: Call Us |
| 5 |
532151590 |
HANDLE.LOWR.DLX.20RD.CLIP.BLAC This part replaces 532153406. Price: $19.99 |
| 6 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 8 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 9 |
817021008 |
SCREW This part replaces 532085825. Price: $3.99 |
| 10 |
532700892 |
CABLE.CONTROL.MZR.RH.SP/PUSH Price: $14.99 |
| 11 |
532750634 |
SCREW Price: $2.99 |
| 12 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 13 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 14 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 15 |
532413568 |
NEEDS DESCRIPTION Price: Call Us |
| 16 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 17 |
532069180 |
LOCKNUT Price: $2.99 |
| 18 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 19 |
532411832 |
SPRING.SIDE.DISCHARGE Price: $4.99 |
| 20 |
532145106 |
BLADE.20.MULCH.(50DK,6020MD) Price: $17.99 |
| 21 |
532088602 |
HINGE DEFLECTOR Price: $3.99 |
| 22 |
532150215 |
HINGE ROD Price: $4.99 |
| 23 |
532154147 |
PROTECTOR Price: $22.99 |
| 24 |
532410807 |
BRACKET.ADJ.WHEEL.5POS.ADS Price: $3.99 |
| 25 |
581547901 |
ADAPTOR.BLADE.7/8 This part replaces 532850977. Price: $14.99 |
| 26 |
532170345 |
BRACKET.ASM.HDL.RT.W/HOLE.BLAC This part replaces 532170975. Price: $5.99 |
| 27 |
532170346 |
BRACKET.ASM.HDL.LT.W/HOLE.BLAC This part replaces 532170977. Price: $5.99 |
| 28 |
596134901 |
GSPH This part replaces 532061537. Price: $2.99 |
| 29 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $3.99 |
| 31 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $4.99 |
| 32 |
532087877 |
KNOB Price: $3.99 |
| 33 |
532401179 |
ARM.ASM.AXLE.5/9.POS.BZP This part replaces 532407871. Price: $5.99 |
| 34 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $3.99 |
| 35 |
596203801 |
Hardware This part replaces 532401638. Price: $3.99 |
| 36 |
532401272 |
WHEEL.8.1.75,H3SPK.RAD3.GY.TB1 This part replaces 532413183. Price: $19.99 |
| 37 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 38 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
532416695 |
NEEDS DESCRIPTION Price: Call Us |
| 40 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 41 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 532149741. Price: $4.99 |
| 42 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 43 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 44 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 45 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 46 |
532111190 |
CABLE CLAMP(ENGINE) Price: $4.99 |
| 47 |
532700417 |
THROTTLE CONTROL Price: $17.99 |
| 48 |
532183365 |
SCREW Price: $4.99 |
| 55 |
588548801 |
BAFFLE.FRONT.20" ECON STL.GALV This part replaces 532141519. Price: $4.99 |
| 56 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 57 |
583337601 |
PLATE.MULCHER.20.ECONOMY.BLK. This part replaces 532412400. Price: $7.99 |
