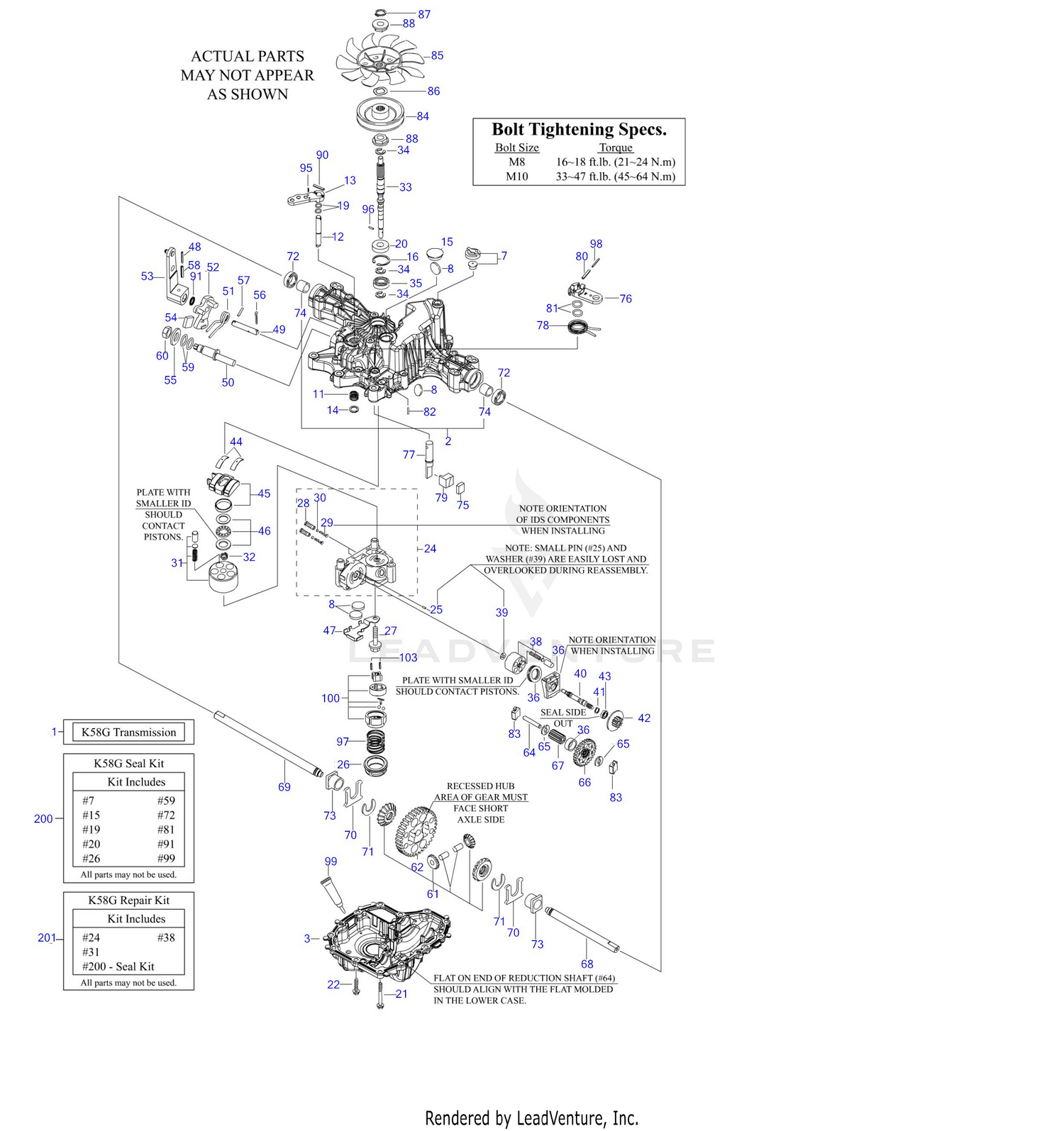

Transmission
Parts (89)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 918-07233A | TRANSMISSION ASSEMBLY This part replaces 918-07233. Price: $1,388.18 |
| 2 | TT-187Q0024080 | UPPER HOUSING ASSY Price: $306.46 |
| 3 | TT-187Q0024161 | LOWER CASE Price: $132.96 |
| 7 | TT-168T2024250 | VENT VALVE Price: $25.34 |
| 8 | TT-19216324360 | MAGNET 28 * 3.5 Price: $2.70 |
| 11 | TT-19215427281 | SPRING 25 Price: $2.29 |
| 12 | TT-1A646029510 | BYPASS SHAFT A Price: $23.67 |
| 13 | TT-1A632029520 | BYPASS LEVER Price: $6.06 |
| 14 | TT-22242000100 | SNAP RING Price: $0.35 |
| 15 | TT-187T0136300 | SEALING CAP, STEEL Price: $6.24 |
| 16 | TT-22252000350 | SNAP RING C 35 Price: $2.29 |
| 20 | TT-187T0134380 | SEAL 153507 Price: $3.70 |
| 21 | TT-26476080552 | TAPPING SCREW 8 * 55 Price: $1.56 |
| 22 | TT-26476080302 | TAPPING SCREW 8 * 30 Price: $2.92 |
| 24 | TT-1A646099220 | CENTER CASE H/FILTER IDS SERVICE KIT Price: $270.86 |
| 25 | TT-19216824760 | PIN 3 * 9.8 Price: $2.29 |
| 26 | TT-187Q0024950 | FILTER Price: $15.06 |
| 27 | TT-168T2099990 | BOLT 10*75 Price: $2.16 |
| 28 | TT-1A646024800 | IDS VALVE 1.2 Price: $9.16 |
| 29 | TT-1A646024761 | SPRING-IDS Not Available Price: |
| 30 | TT-1A646024790 | FILTER-IDS 300 Not Available Price: |
| 31 | TT-168T2025090 | CYLINDER BLOCK KIT Price: $108.31 |
| 32 | TT-1A646025200 | SPRING Price: $1.58 |
| 33 | TT-1A646088840 | PUMP SHAFT Price: $43.88 |
| 34 | TT-22272000120 | E-RING Price: $2.29 |
| 35 | TT-1A646034790 | BALL BEARING This part replaces TT-1A646034770. Price: $8.26 |
| 36 | TT-187Q0024810 | HOUSING Price: $12.18 |
| 37 | TT-187Q0099760 | THRUST BALL BEARING Price: $51.75 |
| 38 | TT-168T2025080 | CYLINDER BLOCK KIT(MOTOR Price: $149.14 |
| 39 | TT-19216825230 | WASHER 12 * 24 * 1 Price: $2.29 |
| 40 | TT-1A646025271 | MOTOR SHAFT Price: $24.30 |
| 41 | TT-19215425310 | SNAP RING S15 Price: $0.54 |
| 42 | TT-187Q0099400 | MOTOR GEAR (11T) Price: $13.65 |
| 43 | TT-187Q0089300 | BEARING 6202RSSH2-9TC3 Price: $19.73 |
| 44 | TT-187T0027060 | THRUST BUSHING Price: $2.29 |
| 45 | TT-168T2084570 | SWASH PLATE CMP Price: $27.30 |
| 46 | TT-19216399000 | THRUST BEARING (PUMP) KIT Price: $42.14 |
| 47 | TT-1A646029010 | MAGNET HOLDER Price: $3.43 |
| 48 | TT-22351035040 | ROLL PIN 3.5 * 40 Price: $2.29 |
| 49 | TT-1A646029911 | CONTROL SHAFT Price: $14.96 |
| 50 | TT-168T2029920 | FULCRUM Price: $21.91 |
| 51 | TT-168T2029800 | TORSION SPRING Price: $11.70 |
| 52 | TT-168T2029740 | CONTROL ARM A Price: $37.68 |
| 53 | TT-1A646029400 | CONTROL LEVER F Price: $10.72 |
| 54 | TT-168T2029360 | JERKY PLATE Price: $3.93 |
| 55 | TT-22137120000 | WASHER 12 Price: $1.96 |
| 56 | TT-1A646029940 | COTTER PIN 1/8" * 3/4" Price: $1.47 |
| 57 | TT-22351060036 | SPRING PIN 6 * 36 Price: $0.78 |
| 58 | TT-22351060040 | ROLL PIN 6 * 40 Price: $2.29 |
| 59 | TT-24311000140 | O-RING 1A P14 Price: $1.97 |
| 60 | TT-26776120002 | NUT 12 Price: $1.97 |
| 61 | TT-187Q0031501 | DIFF GEAR KIT Price: $66.91 |
| 62 | TT-187Q0033520 | FINAL GEAR Price: $111.61 |
| 63 | TT-187Q0033250 | FINAL COLLAR Price: $2.14 |
| 64 | TT-187Q0033410 | REDUCTION SHAFT Price: $8.36 |
| 65 | TT-19216833420 | WASHER 12 * 32 * 3.2 Price: $1.69 |
| 66 | TT-187Q0033451 | REDUCTION GEAR Price: $31.06 |
| 67 | TT-187Q0033530 | FINAL PINION Price: $40.10 |
| 68 | TT-187Q0034170 | AXLE SHAFT LEFT Price: $79.96 |
| 69 | TT-187Q0034180 | AXLE SHAFT RIGHT Price: $99.63 |
| 70 | TT-1A632034290 | THRUST WASHER Price: $5.23 |
| 71 | TT-19216734160 | RETAINING RING 23 Price: $1.86 |
| 72 | TT-1A632034390 | AXLE OIL SEAL Price: $10.99 |
| 73 | TT-187Q0034350 | BUSHING 25.4 Price: $2.58 |
| 74 | TT-19215434240 | BUSHING 25.4 Price: $6.20 |
| 75 | TT-1A646036121 | BRAKE SHOE Price: $2.29 |
| 76 | TT-1A646036160 | BRAKE LEVER Price: $6.30 |
| 77 | TT-1A646036171 | BRAKE SHAFT Price: $32.49 |
| 78 | TT-168T2036180 | BRAKE RETURN SPRING Price: $3.95 |
| 79 | TT-1A646036200 | BRAKE ACTUATOR Price: $2.15 |
| 80 | TT-22351050032 | SPRING PIN 5 * 32 Price: $2.29 |
| 81 | TT-24311000120 | O-RING 1A P12 Price: $2.29 |
| 82 | TT-22351040016 | SPRING PIN 4 * 16 Price: $1.97 |
| 83 | TT-187Q0033100 | SUPPORT BUSHING Price: $3.78 |
| 84 | TT-1A646025760 | PULLEY B Price: $20.39 |
| 85 | TT-187Q0083110 | FAN Price: $13.88 |
| 86 | TT-1A646083060 | WAVE WASHER Price: $2.29 |
| 87 | TT-19215489090 | SNAP RING Price: $2.29 |
| 88 | TT-1A646025300 | SPLINE COLLAR Price: $2.52 |
| 90 | TT-22351030020 | SPRING PIN 3.0A * 20 Price: $2.29 |
| 91 | TT-1A646024440 | OIL SEAL 16 * 22 * .03 Price: $3.37 |
| 95 | TT-22351030016 | SPRING PIN 3.0A * 16 Price: $2.29 |
| 96 | TT-1A646088410 | PIN 2.5* 9.8 Price: $2.13 |
| 97 | TT-1A646088450 | CHARGE SPRING Price: $4.00 |
| 98 | TT-22351030032 | ROLL PIN Price: $0.36 |
| 99 | TT-1A646099500 | SEALANT Price: $23.68 |
| 100 | TT-187Q0099080 | CHARGE PUMP KIT Price: $33.99 |
| 103 | TT-22351030018 | PIN 3.0 * 18 Price: $0.34 |
| 200 | TT-187Q0099203 | KIT-SEAL K58G NX-15 This part replaces TT-187Q0099202. Price: $69.79 |
