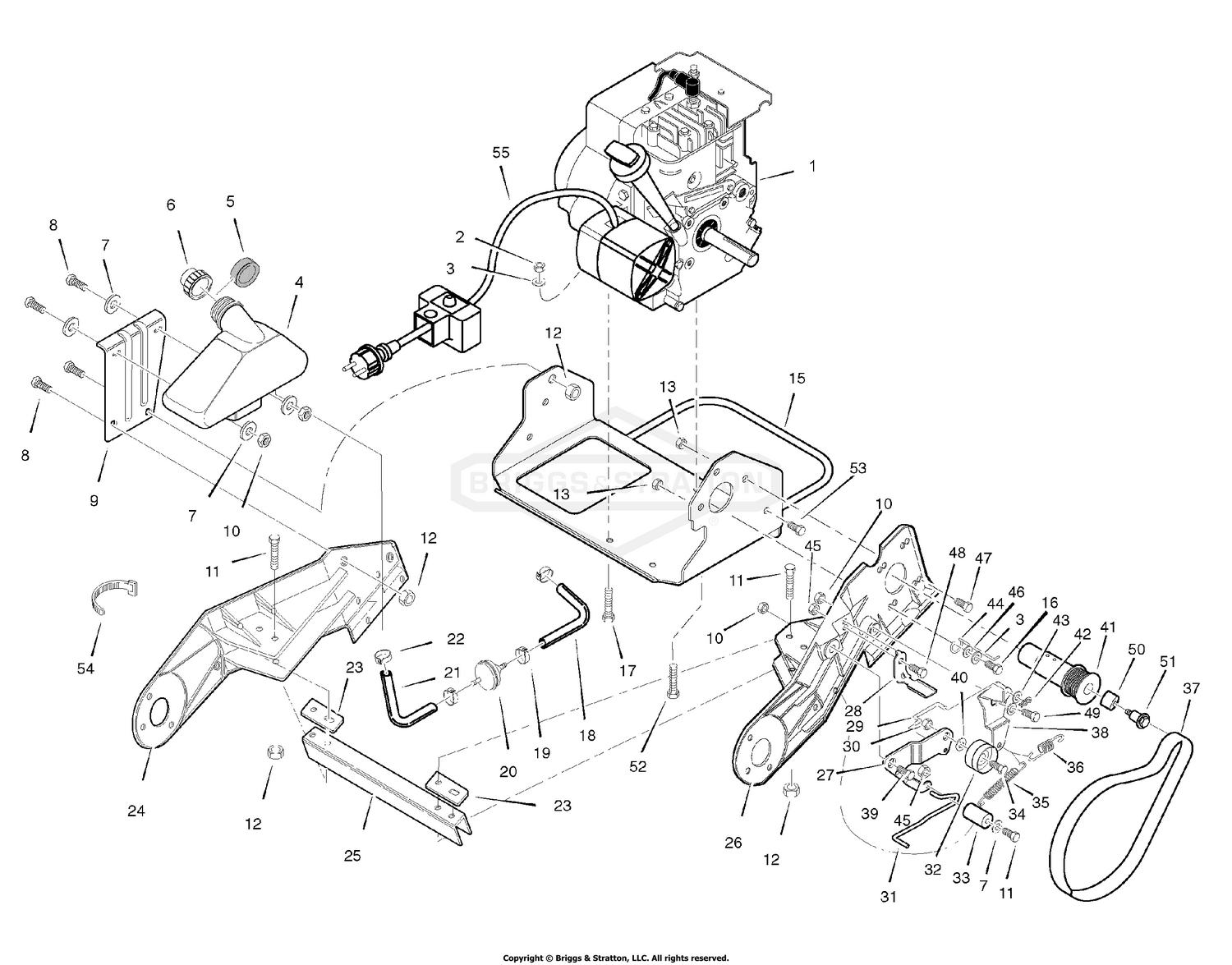

| Ref | Part Number | Description |
|---|
| 2 |
7091511SM |
HN, 5/16C GR5 YZ This part replaces 725320. Price: $3.06 |
| 3 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 725326. Price: $3.51 |
| 4 |
333739MA |
TANK, Fuel 1.5QT This part replaces 723628. Price: $112.28 |
| 5 |
762224MA |
RING, Foam, Fuel Tank This part replaces 728175. Price: $4.99 |
| 6 |
692046 |
CAP, Fuel Tank This part replaces 722262. Price: $4.62 |
| 7 |
703332 |
WASHER This part replaces 725330. Price: $3.72 |
| 8 |
5025010X6SM |
BOLT, 1/4-20 X 3/4" G This part replaces 723010. Price: $3.29 |
| 9 |
333749E701MA |
BRACKET, Fuel Tank This part replaces 728587. Price: $13.09 |
| 10 |
271163MA |
NUT, Keps No. 8 This part replaces 722892. Price: $3.29 |
| 11 |
180044MA |
SCREW, 1/4-20 x 2.00 This part replaces 727940. Price: $3.28 |
| 12 |
703127 |
NUT This part replaces 728134. Price: $3.06 |
| 13 |
703164 |
NUT This part replaces 725408. Price: $2.87 |
| 15 |
1501744E701MA |
CRADLE ASSEMBLY This part replaces 729752. Price: $144.99 |
| 16 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 722633. Price: $3.19 |
| 17 |
001X81MA |
BOLT, Hex, 5/16 - 18 This part replaces 720025. Price: $3.06 |
| 19 |
323387MA |
CLAMP, Fuel Line This part replaces 723462. Price: $3.63 |
| 20 |
298090S |
FILTER, Fuel This part replaces 298090. Price: $3.51 |
| 22 |
47345MA |
CLAMP, SCREW TYPE This part replaces 724068. Price: $7.39 |
| 23 |
335351MA |
PLATE, Mounting Support This part replaces 727517. Price: $3.31 |
| 24 |
1741988AYP |
FRAME, R.H. This part replaces 722320. Price: $87.73 |
| 25 |
333987MA |
CHANNEL, Frame Support This part replaces 726302. Price: $20.99 |
| 26 |
1501872E701MA |
FRAME, L.H. This part replaces 722321. Price: Call Us |
| 27 |
1741727YP |
ARM, Idler This part replaces 1741727. Price: $8.79 |
| 28 |
333970MA |
PAD, Brake This part replaces 723648. Price: $4.80 |
| 29 |
313436MA |
ROD, Clutch Linkage This part replaces 723256. Price: $4.80 |
| 30 |
703996 |
NUT, HEX, 3/8-16 This part replaces 724840. Price: $4.41 |
| 31 |
1501009MA |
WIRE, Brake This part replaces 722046. Price: $8.44 |
| 32 |
48924MA |
PULLEY, Idler This part replaces 724085. Price: $28.91 |
| 33 |
1501010MA |
PINCH ROLLER This part replaces 729335. Price: $5.45 |
| 34 |
302637MA |
SCREW, 3/8-16 x 1.50 This part replaces 723012. Price: $3.49 |
| 35 |
313473MA |
SPRING, Extension .38 O.D. x .039W This part replaces 723264. Price: $5.55 |
| 36 |
313471MA |
SPRING,EXT.75 OD X.06 This part replaces 723263. Price: $4.16 |
| 37 |
333721MA |
BELT, Drive This part replaces 727984. Price: $17.59 |
| 38 |
313444MA |
IDLER, Arm Pivot This part replaces 727078. Price: Call Us |
| 39 |
333594MA |
BOLT-SHD.500X.177 .31 This part replaces 723625. Price: $18.18 |
| 40 |
301188MA |
WASHER, Flat This part replaces 722944. Price: $2.39 |
| 41 |
1501908MA |
PULLEY, Model 9 Engine This part replaces 722331. Price: $25.13 |
| 42 |
121223MA |
PIN, Cotter This part replaces 727500. Price: $2.88 |
| 43 |
414106MA |
WASHER, FLAT No. 8 This part replaces 723979. Price: $2.89 |
| 44 |
334079MA |
GUIDE, Belt This part replaces 723651. Price: $6.84 |
| 45 |
1501216MA |
KIT,SHEAR BOLT.25-20X This part replaces 725429. Price: $4.40 |
| 46 |
703350 |
WASHER This part replaces 725331. Price: $3.72 |
| 47 |
48901MA |
SCREW, 5/16-18 x 1/16 This part replaces 727291. Price: $3.09 |
| 48 |
579052MA |
SCREW.25-20X0.62 HHC This part replaces 728095. Price: $4.07 |
| 49 |
311633MA |
SCREW, No. 8-32 x 3.00 This part replaces 723237. Price: $3.41 |
| 50 |
1740037MA |
SPACER, Drive Pulley This part replaces 1740037. Price: $6.89 |
| 51 |
1501907MA |
BOLT, Engine Pulley This part replaces 722330. Price: $8.34 |
| 52 |
1X216MA |
BOLT, Hex 5/16-18 x 0865 This part replaces 727947. Price: $3.29 |
| 53 |
703054 |
SCREW, 1/4-20X0.625 This part replaces 723210. Price: $3.82 |
| 54 |
57444MA |
TIE, Cable This part replaces 727633. Price: $2.89 |
