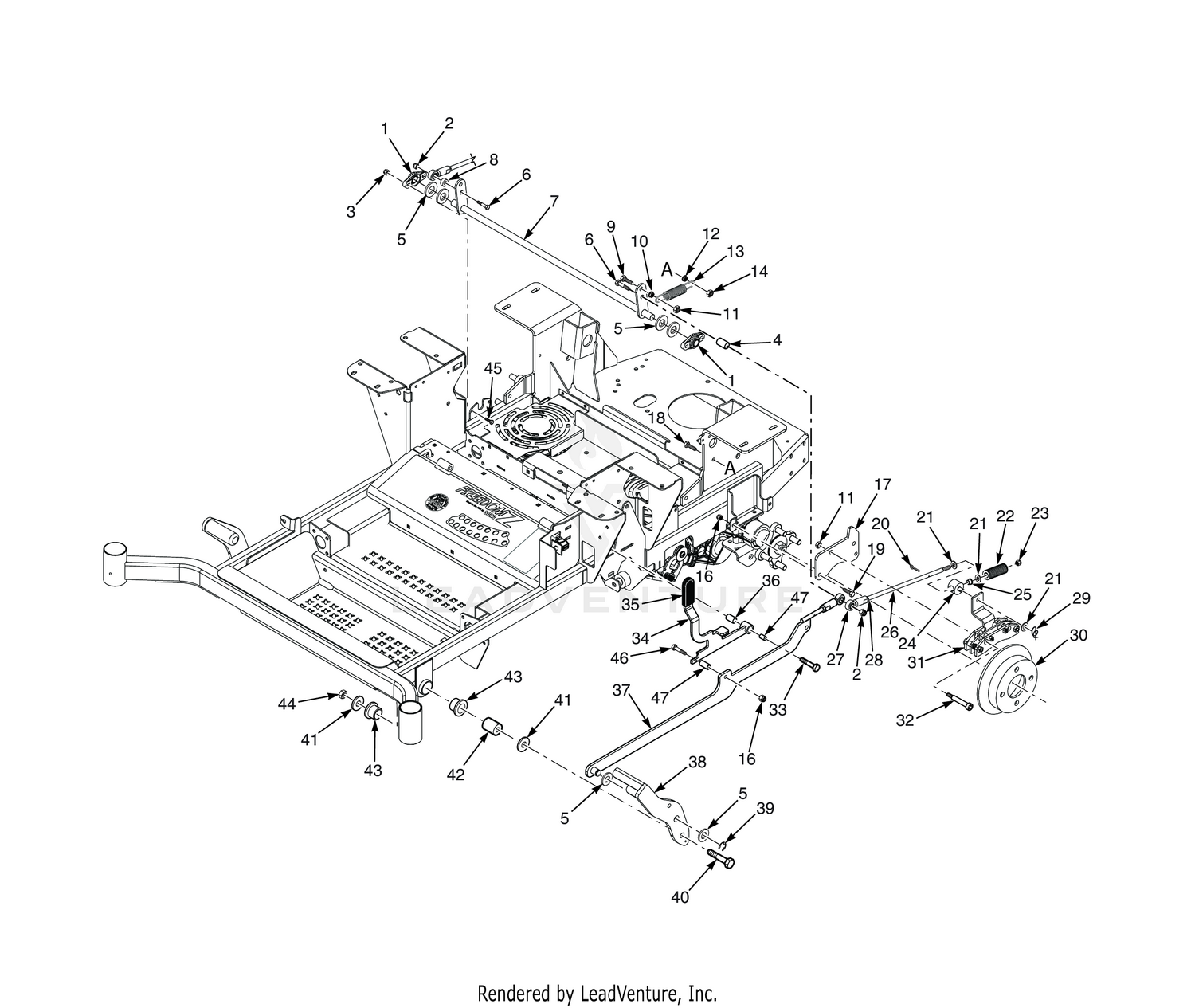

| Ref | Part Number | Description |
|---|
| 1 |
483504 |
Bearing Price: Call Us |
| 2 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 3 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 4 |
43720 |
Spacer, Idler Pulley - SFZ61 Price: Call Us |
| 5 |
04040-09 |
Flatwasher, 5/8" (.656 x 1.312 x .095") Price: Call Us |
| 6 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 7 |
452269 |
Weldment, Brake Lever Price: Call Us |
| 8 |
43674 |
Spacer, Idler Pulley - SFZ52 Price: Call Us |
| 9 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 10 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 11 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 12 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 13 |
484038 |
Spring, Deck Lift Price: Call Us |
| 14 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 15 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 16 |
04021-10 |
HEX NUT, ELASTIC STOP LOCK, 5/16-18 Price: Call Us |
| 17 |
425680 |
Mounting Bracket, Brake Price: Call Us |
| 18 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 19 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 20 |
04061-02 |
Pin, Cotter 3/32 x .75" Price: Call Us |
| 21 |
04040-05 |
Flatwasher, 3/8 (.406 x .812 x .065) Price: Call Us |
| 22 |
484535 |
Spring, Brake Price: Call Us |
| 23 |
04021-18 |
Nut, Elastic Stop 3/8-16, grade 8 black Price: Call Us |
| 24 |
462452 |
Swivel Assembly, Brake Price: Call Us |
| 25 |
483453-23 |
Bearing Price: Call Us |
| 26 |
04004-54 |
Link, Brake Price: Call Us |
| 27 |
482330 |
Rod End, 3/8-24 RH Female Price: Call Us |
| 28 |
04020-25 |
Nut, 3/8-24 UNF R.H. Thread Price: Call Us |
| 29 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 30 |
43853 |
Spacer, Axle Price: Call Us |
| 31 |
483701 |
Brake Caliper Price: Call Us |
| 32 |
04009-17 |
Bolt, Shoulder 1/2 x 2-1/2" Price: Call Us |
| 33 |
04009-16 |
Bolt, Shoulder 1/2 x 2" Price: Call Us |
| 34 |
462485 |
Latch Assembly, Brake Price: Call Us |
| 35 |
482102 |
Grip, Brake Handle Price: Call Us |
| 36 |
483453-22 |
Bearing Price: Call Us |
| 37 |
462419 |
Linkage Weldment Assembly, Brake Price: Call Us |
| 38 |
452922 |
Brake Pedal Weldment Price: Call Us |
| 39 |
04050-01 |
RETAINING RING, 5/8" EXTERNAL "E" Price: Call Us |
| 40 |
04001-74 |
Bolt, Hex Head 1/2-13 x 3" Price: Call Us |
| 41 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 42 |
43710 |
Spacer, Deck Lift Pivot Price: Call Us |
| 43 |
483453-03 |
Bearing, Plastic Price: Call Us |
| 44 |
04021-19 |
Locknut, Hex 1/2-13 Center Lock Price: Call Us |
| 45 |
04017-06 |
CAP SCREW, 1/4-20 X 1" SERRATED FLANGE HEX Price: Call Us |
| 46 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-1/2" - Front Price: Call Us |
