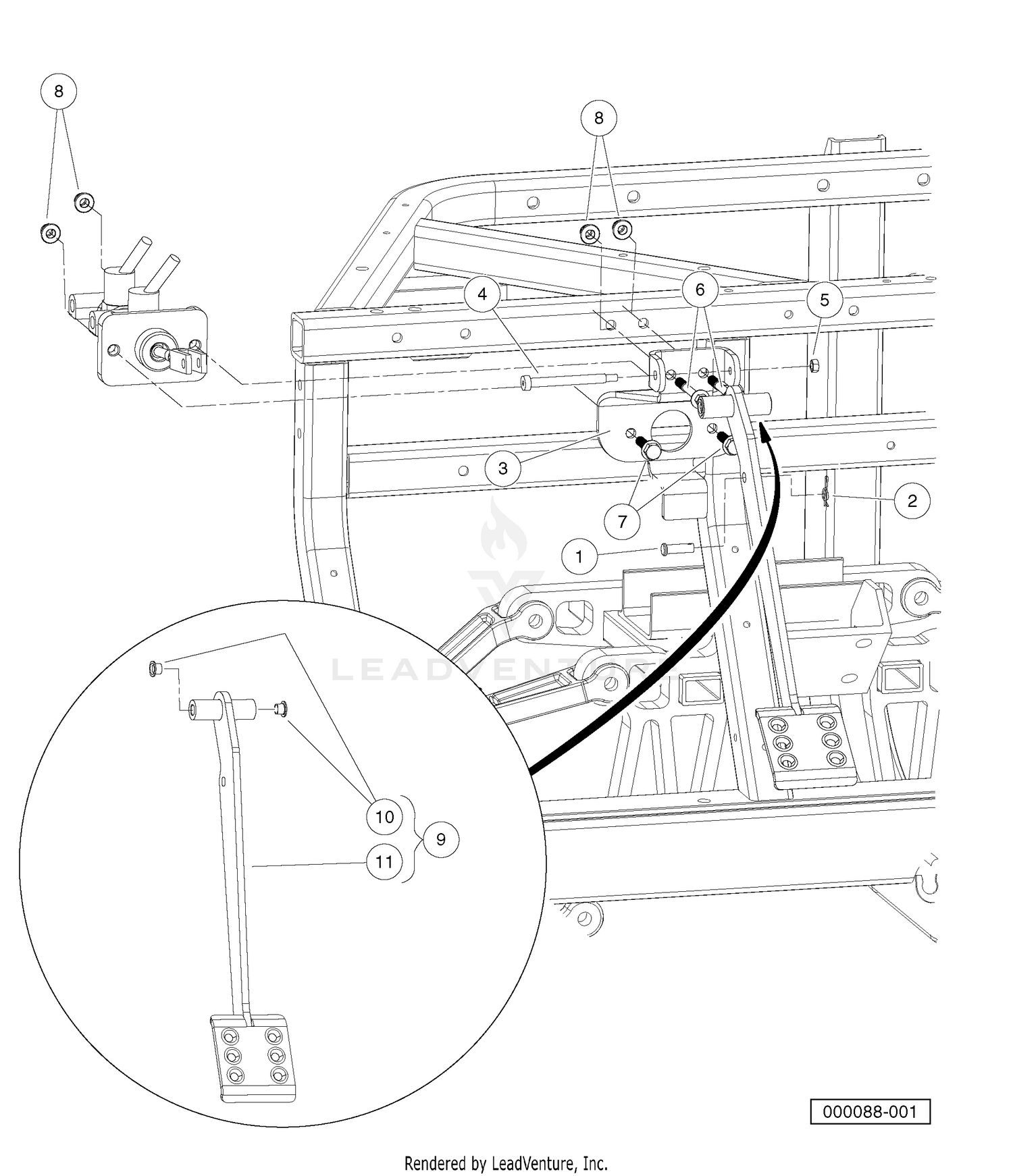

PEDALS
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 603000454 | CLEVIS PIN, 5/16 X 1 Price: $1.99 |
| 2 | 603000798 | PIN, RUE Price: $2.99 |
| 3 | 603000935 | BRACKET, PEDAL, BRAKE Price: $49.99 |
| 4 | 603003840 | BOLT, SHOULDER, M8 X 70, HC This part replaces 603001146. Price: $11.99 |
| 5 | 603001305 | NUT M6X1 MECH DEF CENTER Price: $2.99 |
| 6 | 603001306 | BOLT FLG, M8X1.25X65 Price: $4.99 |
| 7 | 603001307 | BOLT FLG, M8X1.25X35 Price: $4.99 |
| 10 | 603001055 | BUSHING, GREASELESS Price: $5.99 |
| 11 | 603001322 | WELDMENT, PEDAL, BRAKE, HUNG Price: $139.99 |
