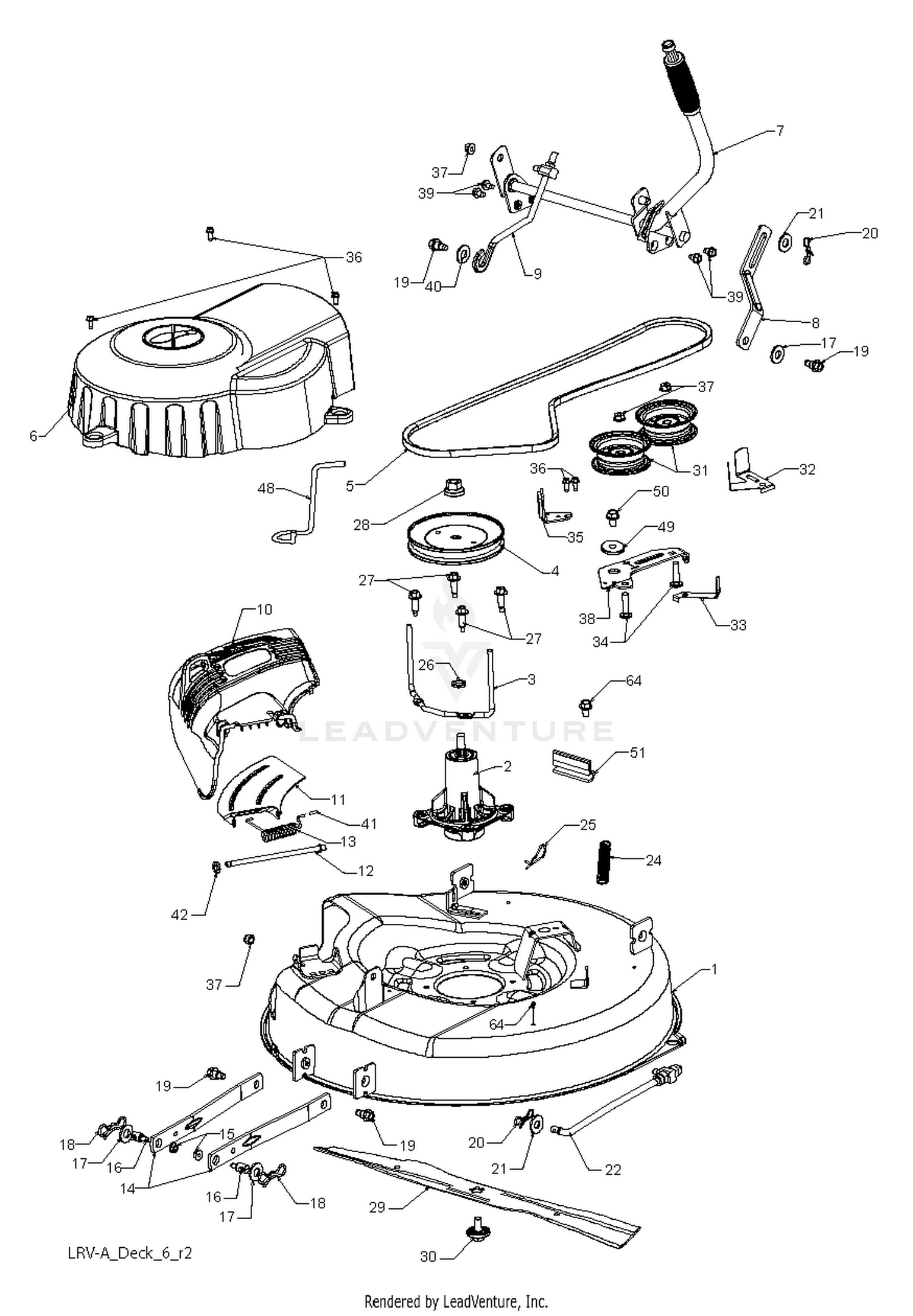

| Ref | Part Number | Description |
|---|
| 1 |
584344001 |
DECK.WELDMENT.26LRV This part replaces 532428193. Price: $159.99 |
| 1 |
93-7836 |
DECAL-PEDAL, TRACTION This part replaces 27-7320. Price: $14.38 |
| 2 |
21-2660-01 |
PLATE-SIDE This part replaces 21-2660. Price: $299.86 |
| 2 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192870. Price: $32.99 |
| 3 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 3 |
66-6390 |
DECAL-CAUTION This part replaces 27-7270. Price: $27.63 |
| 4 |
38-4550-03 |
COVER-INSTRUMENTS This part replaces 38-4550. Price: $448.71 |
| 4 |
532432594 |
PULLEY.MANDREL Price: $11.99 |
| 5 |
27-7290 |
DECAL-PTO Price: $17.38 |
| 5 |
532428578 |
BELT Price: $32.99 |
| 6 |
32103-2 |
NUT-WING Price: $0.68 |
| 6 |
532428242 |
COVER, MANDREL Price: $27.99 |
| 7 |
532429395 |
LIFT.ASM.DECK.LRV Price: $54.99 |
| 7 |
92-7802 |
DECAL-INSTR., START This part replaces 27-7280. Price: $22.12 |
| 8 |
39-8020 |
TRIM-COVER, INSTRUMENT This part replaces 36-0590. Price: $15.23 |
| 8 |
532429195 |
LINK, DECK LIFT Price: $5.99 |
| 9 |
532429397 |
LINK.ASM.LIFT.ADJUSTABLE Price: $17.99 |
| 9 |
92-7800 |
BATTERY COVER ASM This part replaces 24-9740. Price: $65.49 |
| 10 |
3290-144 |
SCREW-SHWH Price: $0.47 |
| 10 |
583536201 |
DEFLECTOR.LRV.26 This part replaces 532438923. Price: $32.99 |
| 11 |
249-21 |
CLAMP-SLOTTED Price: $18.93 |
| 11 |
532428968 |
SUPPORT, DEFLECTOR Price: $7.99 |
| 12 |
3253-17 |
WASHER-LOCK Price: $0.25 |
| 12 |
532131491 |
ROD.HINGE Price: $1.99 |
| 13 |
3217-26 |
NUT-HEX Price: $0.25 |
| 13 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 14 |
239-19 |
PUSH-ON BATTERY CAP Price: $4.41 |
| 14 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $4.99 |
| 15 |
106-5190 |
BATTERY This part replaces 13-6480. Price: $170.85 |
| 15 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 16 |
28-1280 |
DISCONTINUED Price: Call Us |
| 16 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 17 |
24-6420-03 |
HOLDDOWN-BATTERY This part replaces 24-6420. Price: $55.90 |
| 17 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.99 |
| 18 |
2412-61 |
TINNERMAN CLIP Price: $4.93 |
| 18 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 19 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
3217-7 |
NUT-HEX Price: $0.28 |
| 20 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 21 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 21 |
819171912 |
WASHER Price: $3.99 |
| 22 |
2412-4 |
CLAMP-R Price: $4.22 |
| 22 |
532429350 |
LINK.ASM.TOP.DECK.LRV Price: $19.99 |
| 23 |
323-6 |
SCREW-HH Price: $0.66 |
| 24 |
532429531 |
SPRING.EXTENSION.DECK.LRV Price: $2.99 |
| 24 |
67-1710 |
DECAL-WARNING This part replaces 28-3290. Price: $7.83 |
| 25 |
18-7040 |
DISCONTINUED Price: Call Us |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 26 |
27-7310 |
DECAL-REFUELING Price: $27.52 |
| 26 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 27 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 27 |
93-3183 |
TOOL BOX ASM This part replaces 38-4530. Price: $240.67 |
| 28 |
3229-10 |
SCREW-CARR Price: $0.22 |
| 28 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 29 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 29 |
532428500 |
BLADE.26" Price: $17.99 |
| 30 |
3217-5 |
NUT-HEX Price: $0.25 |
| 30 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 31 |
38-3760 |
DISCONTINUED Price: Call Us |
| 31 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 32 |
532141043 |
GUARD, BELT Price: $3.99 |
| 32 |
93-7830 |
DECAL-TORQUE This part replaces 36-8000. Price: $23.91 |
| 33 |
37-9650 |
TRIM-BOX, TOOL Price: $19.76 |
| 33 |
532193414 |
KEEPER BELT Price: $3.99 |
| 34 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 35 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 36 |
3217-6 |
NUT-HEX Price: $1.19 |
| 36 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 37 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 37 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 38 |
21-2770 |
PAD-FLOOR PLATE, RH Price: $96.81 |
| 38 |
532428435 |
ARM, IDLER Price: $5.99 |
| 39 |
21-2760 |
PAD-PLATE FLOOR, LH Price: $96.42 |
| 39 |
817490508 |
SCREW LT Price: $3.99 |
| 40 |
819171616 |
Washer 17/32 x 1-1/6 x 13 Gauge (AYP part number) Price: $5.99 |
| 41 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 42 |
532110452 |
NUT PUSH M Price: $1.99 |
| 48 |
532438610 |
KEEPER.BELT Price: $2.99 |
| 49 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 50 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 51 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $2.99 |
