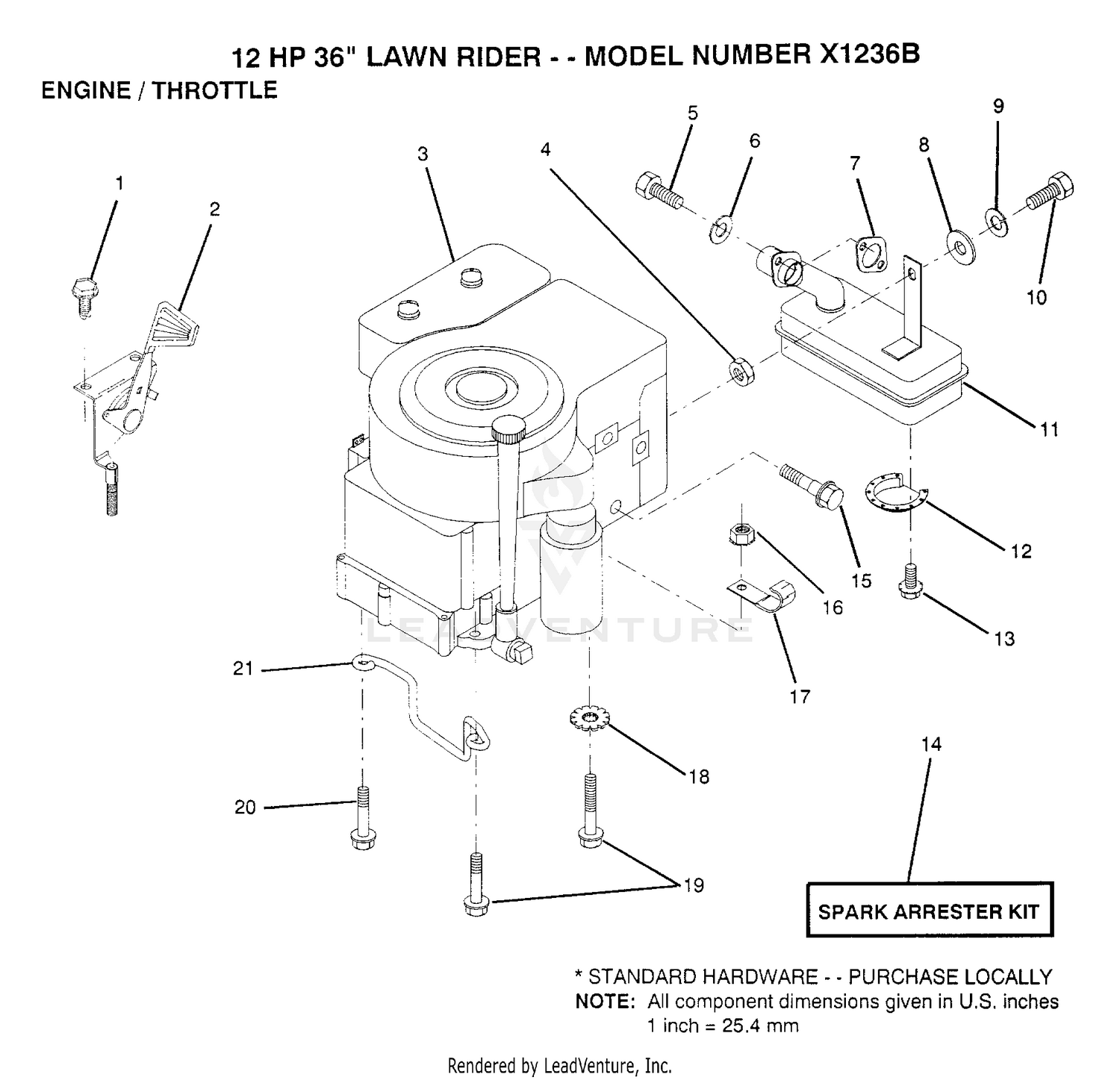

| Ref | Part Number | Description |
|---|
| 1 |
17720408 |
SCREW Price: Call Us |
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
122014X |
SUB= 132752 Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 3 |
124136X |
ENGINE BRIGGS AND STRATTON Price: Call Us |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 4 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 4 |
98-8172-03 |
SUPPORT-AXLE Price: $656.24 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 5 |
71070512 |
SCREW Price: Call Us |
| 6 |
10040500 |
LOCKWASHER Price: Call Us |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 7 |
125593X |
SUB= 272293 Price: Call Us |
| 8 |
19101216 |
WASHER Price: Call Us |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 9 |
10040400 |
LOCKWASHER Price: Call Us |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173-03. Price: $42.42 |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 10 |
74760416 |
BOLT Price: Call Us |
| 11 |
124097X |
MUFFLER Price: Call Us |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 12 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
17030808 |
SUB= 17030814 Price: Call Us |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 14 |
121851X |
SUB= 532137180 Price: Call Us |
| 15 |
121094X |
BOLT T Price: Call Us |
| 16 |
73510600 |
NUT Price: Call Us |
| 17 |
2751R |
CLIP T Price: Call Us |
| 18 |
11050600 |
LOCKWASHER Price: Call Us |
| 19 |
17490632 |
SCREW LT Price: Call Us |
| 20 |
17490624 |
SCREW LT Price: Call Us |
