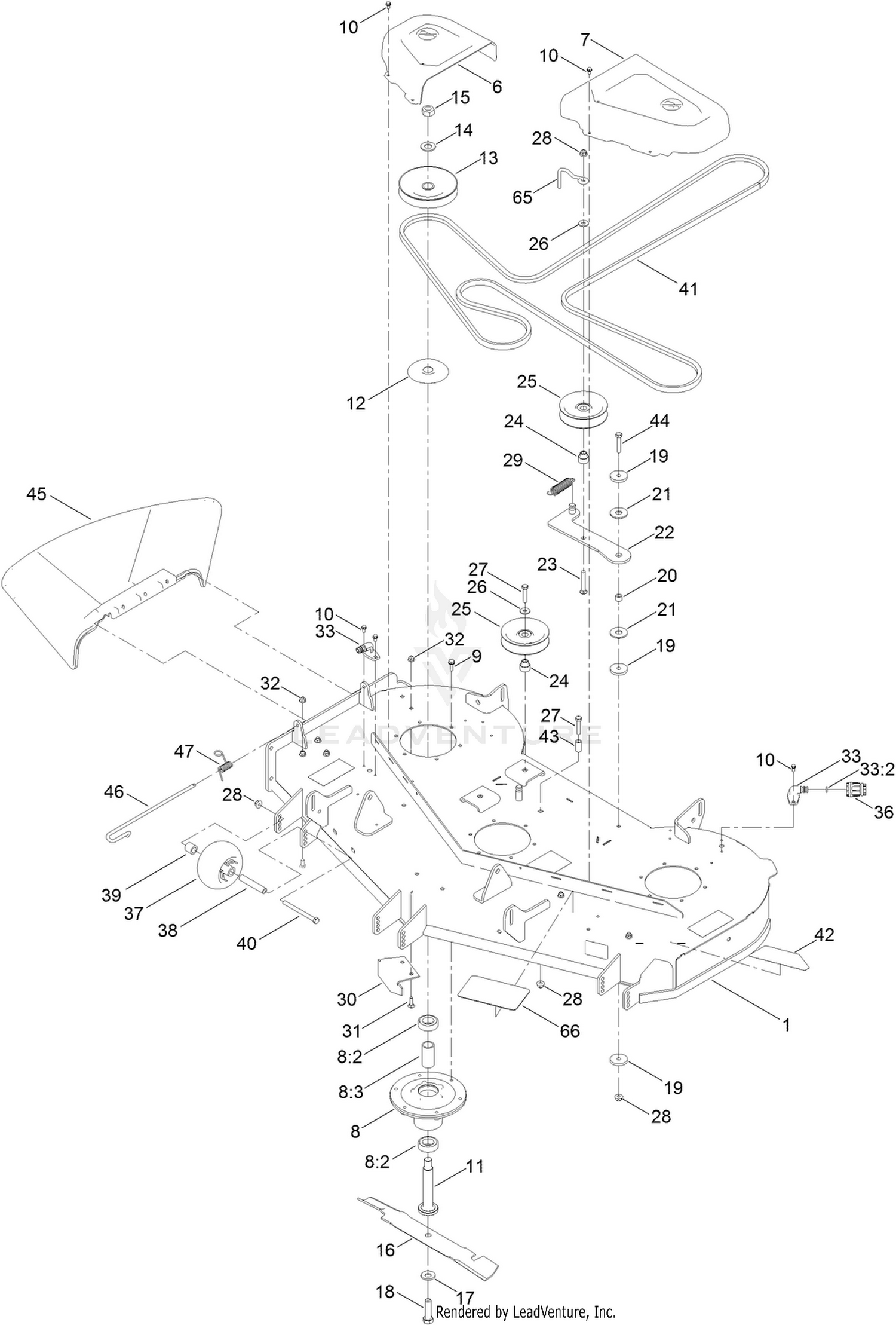

| Ref | Part Number | Description |
|---|
| 1 |
133-7068 |
DECK ASM Price: $863.78 |
| 6 |
133-9283 |
COVER-BELT, RH Price: $12.93 |
| 7 |
133-9282 |
COVER-BELT, LH Price: $14.23 |
| 8 |
120-5477 |
SPINDLE ASM Price: $76.60 |
| 9 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 10 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 11 |
115-2642 |
SHAFT-SPINDLE Price: $34.39 |
| 12 |
117-7210 |
SHIELD-BEARING Price: $6.59 |
| 13 |
138-7223 |
PULLEY This part replaces 115-5018. Price: $34.08 |
| 14 |
7-4150 |
WASHER Price: $1.19 |
| 15 |
3219-7 |
NUT-HEX Price: $1.53 |
| 16 |
115-9650-03 |
BLADE-HI FLO Price: $22.97 |
| 17 |
125-1736 |
WASHER-BELLEVILLE Price: $3.89 |
| 18 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 19 |
110-9981 |
WASHER-PLAIN Price: $13.99 |
| 20 |
1-413088 |
BUSHING-LEVER, LIFT Price: $6.74 |
| 21 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 22 |
115-5054 |
ARM-IDLER Price: $51.76 |
| 23 |
3231-31 |
SCREW-CARR Price: $1.29 |
| 24 |
115-2577 |
BUSHING-IDLER Price: $4.12 |
| 25 |
132-4718 |
PULLEY-IDLER, FLAT Price: $22.69 |
| 26 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 27 |
323-9 |
SCREW-HH Price: $1.29 |
| 28 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
108-4056 |
SPRING-EXTENSION Price: $5.38 |
| 30 |
115-9653-03 |
BAFFLE-CUTOFF Price: $15.97 |
| 31 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 32 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 33 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 36 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 37 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 38 |
98-7912 |
TUBE-SPANNER Price: $12.23 |
| 39 |
104-0892 |
SPACER-AXLE, REAR Price: $3.30 |
| 40 |
323-23 |
SCREW-HH Price: $2.07 |
| 41 |
133-7076 |
V-BELT Price: $123.66 |
| 42 |
117-5302 |
DECAL Price: $10.77 |
| 43 |
1-603401 |
SPACER Price: $4.58 |
| 44 |
323-10 |
SCREW-HH Price: $0.89 |
| 45 |
133-1212 |
DEFLECTOR-DISCHARGE Price: $51.81 |
| 46 |
109-8854 |
PIN-CHUTE Price: $10.21 |
| 47 |
121-2983 |
SPRING-TORSION Price: $2.71 |
| 65 |
136-5615 |
GUIDE-BELT, IDLER Price: $4.18 |
