| Ref | Part Number | Description |
|---|
| 1 |
232-24 |
STEM-VALVE Price: $4.03 |
| 2 |
28-3680 |
TIRE Price: $118.18 |
| 3 |
217-60 |
RIM Price: $110.16 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 5 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 6 |
10-6850 |
DRUM-BRAKE Price: $54.08 |
| 7 |
70-9880 |
SPRING-RETURN Price: $11.81 |
| 8 |
70-9840 |
SHOE-BRAKE Price: $60.36 |
| 9 |
325-11 |
SCREW-HH Price: $1.93 |
| 10 |
70-9870 |
PLATE-BACKING Price: $183.14 |
| 11 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 12 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000. Price: $8.08 |
| 13 |
237-80 |
O-RING Price: $6.10 |
| 14 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 15 |
237-65 |
O-RING Price: $2.50 |
| 16 |
32108-100 |
SCREW-FH Price: $3.02 |
| 17 |
321-11 |
SCREW-HH Price: $0.36 |
| 18 |
83-0190-01 |
COVER-RH This part replaces 83-0190. Price: $32.81 |
| 19 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 20 |
57-6140 |
CLAMP-TUBE, HALF Price: $5.16 |
| 21 |
83-1220 |
PLATE-CLAMP Price: $19.06 |
| 22 |
92-9199 |
MOTOR-WHEEL, HYD Price: $923.71 |
| 23 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9850. Price: $42.42 |
| 24 |
93-2096 |
LEVER-BRAKE Price: $89.45 |
| 25 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 26 |
321-5 |
SCREW-HH Price: $0.22 |
| 27 |
104-7708 |
BRAKE CAM & E-RING ASM This part replaces 70-9860. Price: $42.42 |
| 28 |
85-6540 |
STUD-DRIVE Price: $7.41 |
| 29 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 30 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 31 |
321-4 |
SCREW-HH Price: $0.99 |
| 32 |
32128-33 |
NUT-HF Price: $0.25 |
| 33 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 34 |
83-2450 |
HOSE ASSY - HYD Price: $164.30 |

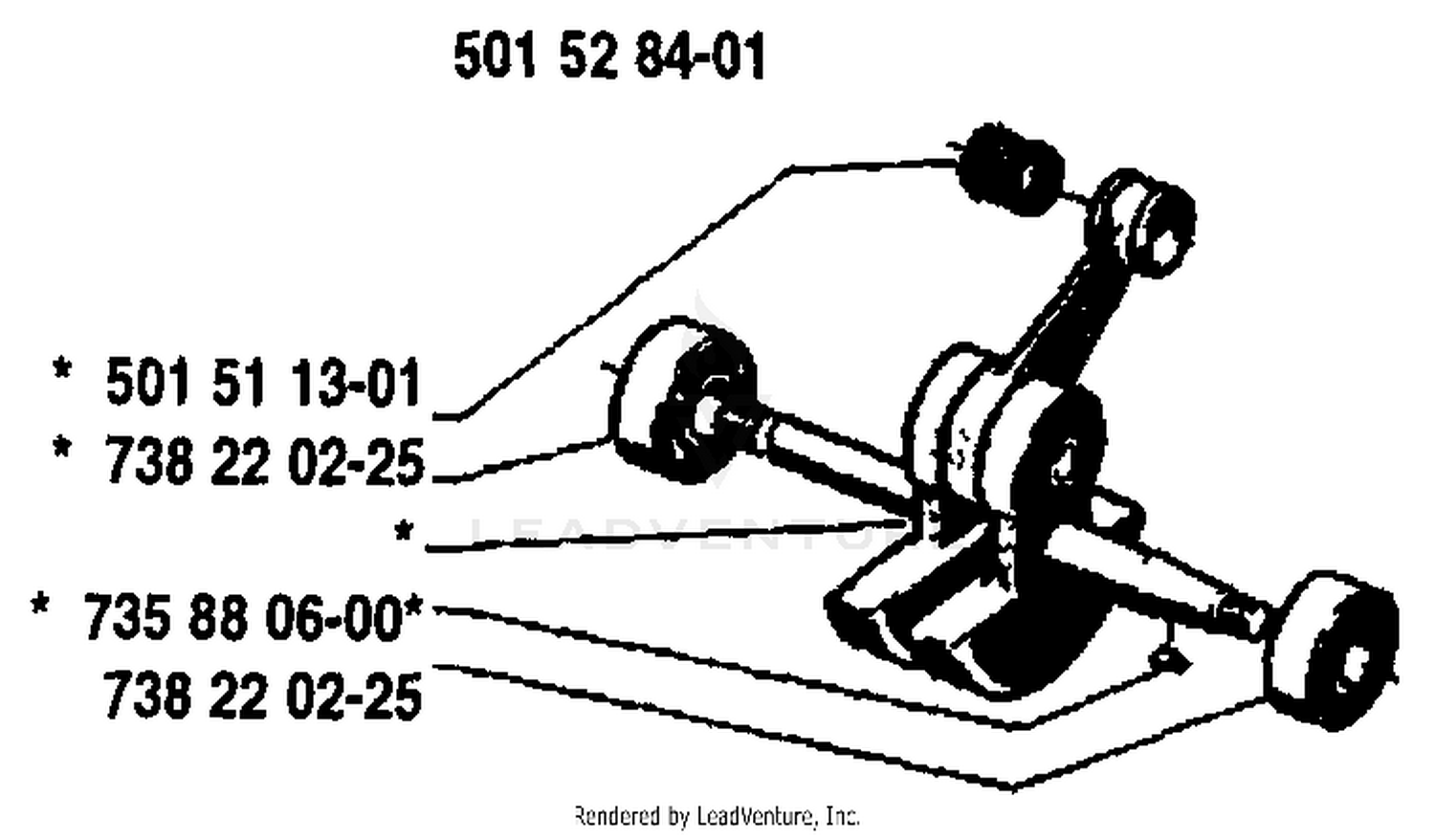

| 501511301 |
577572401 |
NEEDLE BEARING PISTON PIN 12X1 This part replaces 501511301. Price: $11.99 |
| 501528401 |
501528401 |
CRANKSHAFT,268 Price: $143.51 |
| 735880600 |
735880600 |
WOODRUFF KEY Price: $3.99 |
| 738220225 |
738220225 |
BALL BEARING-6202-C3 SKF Price: $19.99 |
