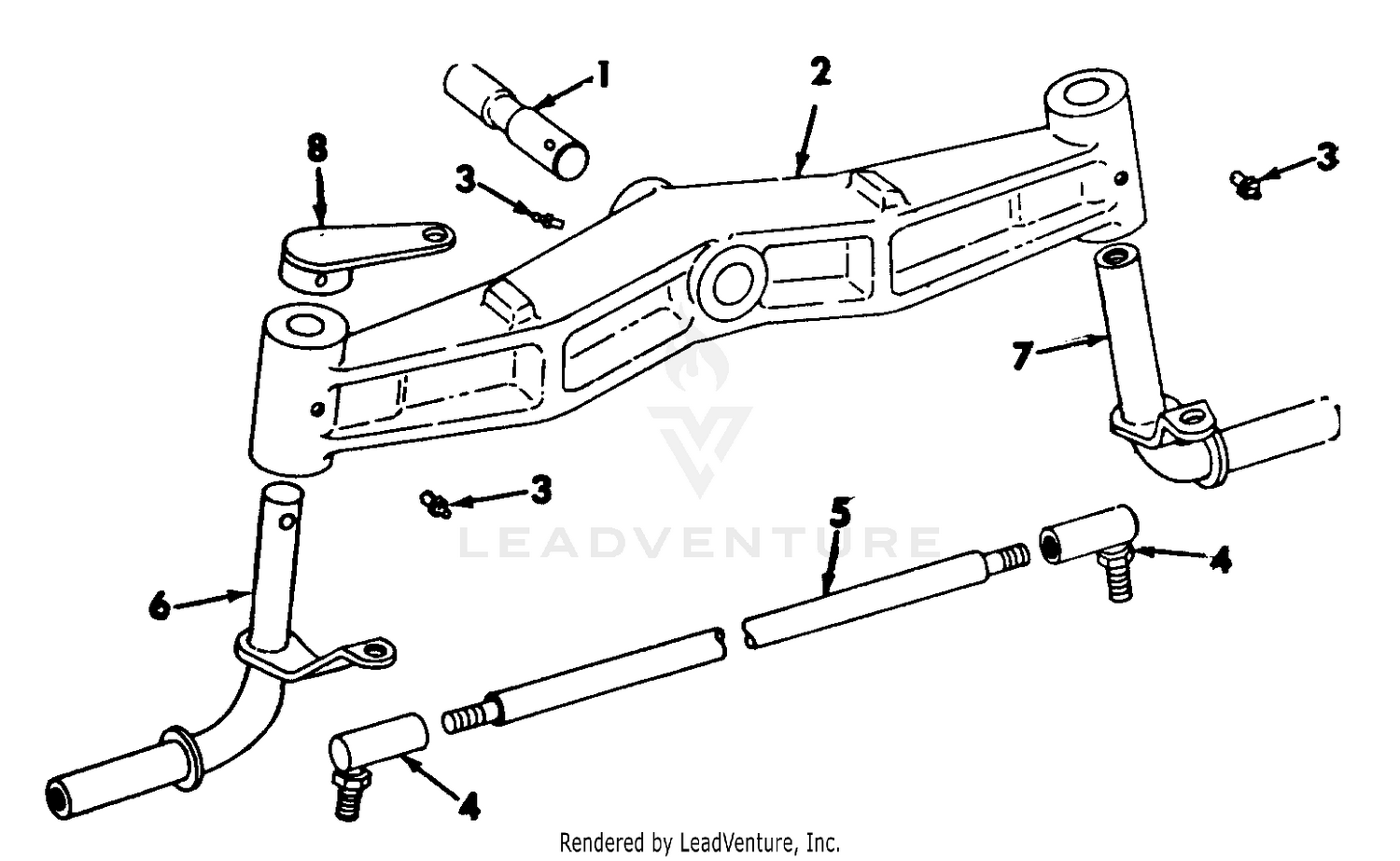

| Ref | Part Number | Description |
|---|
| 1 |
3220-3 |
NUT-HJ Price: $0.28 |
| 1 |
IH-384626-R3 |
PIN-FR AXLE Not Available Price: |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
959-3011 |
FRONT AXLE Not Available This part replaces 759-3011. Price: |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
937-3000 |
Grease Fitting This part replaces 7373000. Price: $4.04 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
923-3018 |
Ball Joint This part replaces 723-3018. Price: $15.50 |
| 5 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 5 |
IH-384632-R1 |
ROD, TIE Not Available Price: |
| 6 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
759-3004 |
Knuckle Assy, Steering LH Price: $148.45 |
| 7 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 7 |
759-3006 |
Knuckle Assy, Steering RH Price: $143.87 |
| 8 |
75-3270-03 |
HUB-PIVOT, TRACTION This part replaces 75-3270. Price: $144.73 |
| 8 |
959-3120 |
STEERING ARM ASSEMBLY This part replaces 759-3120. Price: $103.83 |
| 9 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 10 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 11 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 12 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 13 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 14 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 16 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 17 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 18 |
75-6710 |
DECAL - FAST/SLOW Price: $5.87 |
| 18 |
84-3500 |
DECAL - SPEED CONTROL Price: $13.52 |
| 18 |
93-6699 |
DECAL-FAST / SLOW Price: $18.07 |
| 19 |
233-42 |
KNOB Price: $12.88 |
| 20 |
75-6490 |
LEVER ASM Price: $78.45 |
| 21 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 23 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 24 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 28 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 29 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 30 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 31 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 32 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 33 |
75-1440-03 |
PEDAL-BRAKE, LH This part replaces 75-1440. Price: $207.74 |
| 34 |
256-42 |
BUSHING Price: $7.03 |
| 35 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 36 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 37 |
75-2170-03 |
TUBE-CONTROL, PUMP This part replaces 75-2170. Price: $103.73 |
| 38 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 40 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 41 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 503200235 |
725533755 |
SCREW MC6S 5X35 This part replaces 503200235. Price: $3.99 |
| 503289043 |
503289043 |
PISTON RING Price: $11.99 |
| 503712201 |
503712201 |
BEARING Price: $11.99 |
| 537014101 |
537014101 |
GASKET Price: $3.99 |
| 537053671 |
537221703 |
MUFFLER This part replaces 537053671. Price: $54.99 |
| 537070701 |
537070701 |
SCREEN Price: $7.99 |
| 537084671 |
537405902 |
PISTON This part replaces 537084671. Price: $69.99 |
| 537085101 |
537085103 |
CYLINDER COMPL This part replaces 537085101. Price: $129.99 |
| 724128759 |
724128759 |
SCREW Price: $2.99 |
| 737440800 |
737440800 |
CLIP RING Price: $2.99 |
