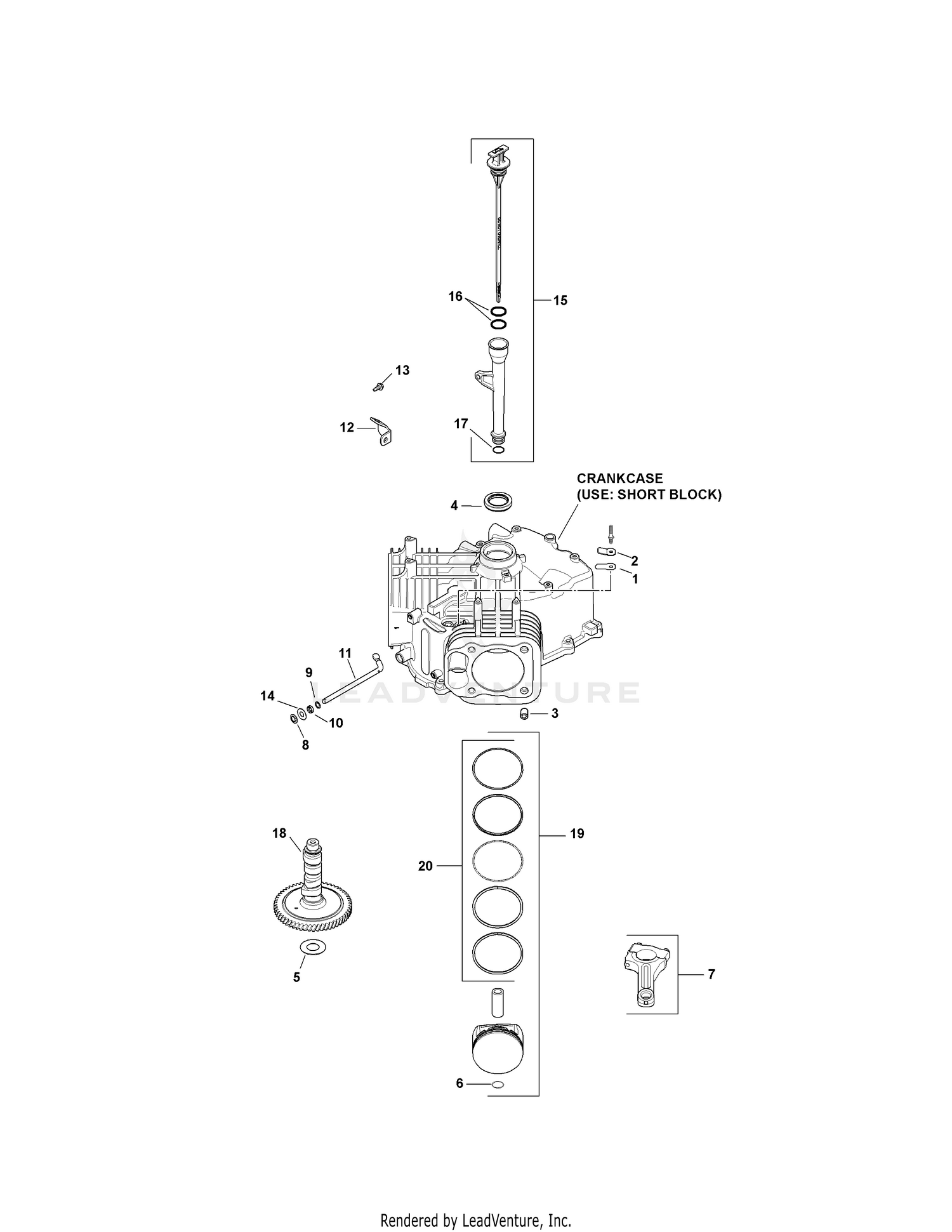

Kohler SV730-3031 Crankcase
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | KH-12-402-02 | Breather Reed Price: $3.50 |
| 2 | KH-24-018-04-S | REED RETAINER Not Available Price: |
| 3 | KH-24-380-16-S | Pin Price: $4.02 |
| 4 | KH-24-032-19-S | Oil Seal (Helix Lip) Price: $6.93 |
| 5 | KH-12-422-07-S | SHIM, CAMSHAFT (WHITE .028") Price: $4.23 |
| 6 | KH-24-018-01-S | Piston Pin Retainer Price: $2.29 |
| 7 | KH-25-067-04-S | CONNECTING ROD ASSEMBLY This part replaces KH-24-067-28-S. Price: $57.73 |
| 8 | KH-24-018-09-S | Ring Retainer Price: $2.11 |
| 9 | KH-24-468-15-S | Flat Washer, 11/32 Price: $2.29 |
| 10 | KH-28-032-09-S | Governor Cross Shaft Seal Price: $3.19 |
| 11 | KH-24-144-39-S | GOVERNOR SHAFT CRO Not Available This part replaces KH-24-144-38-S. Price: |
| 12 | KH-24-126-243-S | Lifting Strap This part replaces KH-24-126-19. Price: $9.30 |
| 13 | KH-M-545013-S | Flg. Thd. Frm. Screw, M5 x 0.8 x 13 Price: $2.09 |
| 14 | KH-M-931010-S | Flat Washer, 9mm Price: $2.11 |
| 15 | KH-32-755-04-S | TUBE KIT-DIPSTICK Not Available Price: |
| 16 | KH-25-153-09-S | Dipstick O-Ring Price: $3.24 |
| 17 | KH-12-153-01-S | O-Ring, Lower Oil Fill Tube Price: $4.54 |
| 18 | KH-32-010-05-S | CAMSHAFT ASSEMBLY Not Available Price: |
| 19 | KH-25-874-07-S | PISTON KIT (+0.08) Not Available This part replaces KH-25-874-02-S. Price: |
| 19 | KH-25-874-13-S | Piston Kit w/ Ring (STD) (Inc. 4 & 5) This part replaces KH-25-874-01-S. Price: $262.86 |
| 19 | KH-25-874-16-S | Piston Kit w/ Ring (.25) This part replaces KH-25-874-03-S. Price: $234.64 |
| 20 | KH-24-108-14-S | RING-SET (STD&.08) Not Available Price: |
| 20 | KH-24-108-15-S | RING SET(.08)STYLE A-1.5mm Tp RING THICK Price: $100.05 |
| 20 | KH-24-108-16-S | RING SET(.25)STYLE A-1.5mm Tp RING THICK Not Available Price: |
