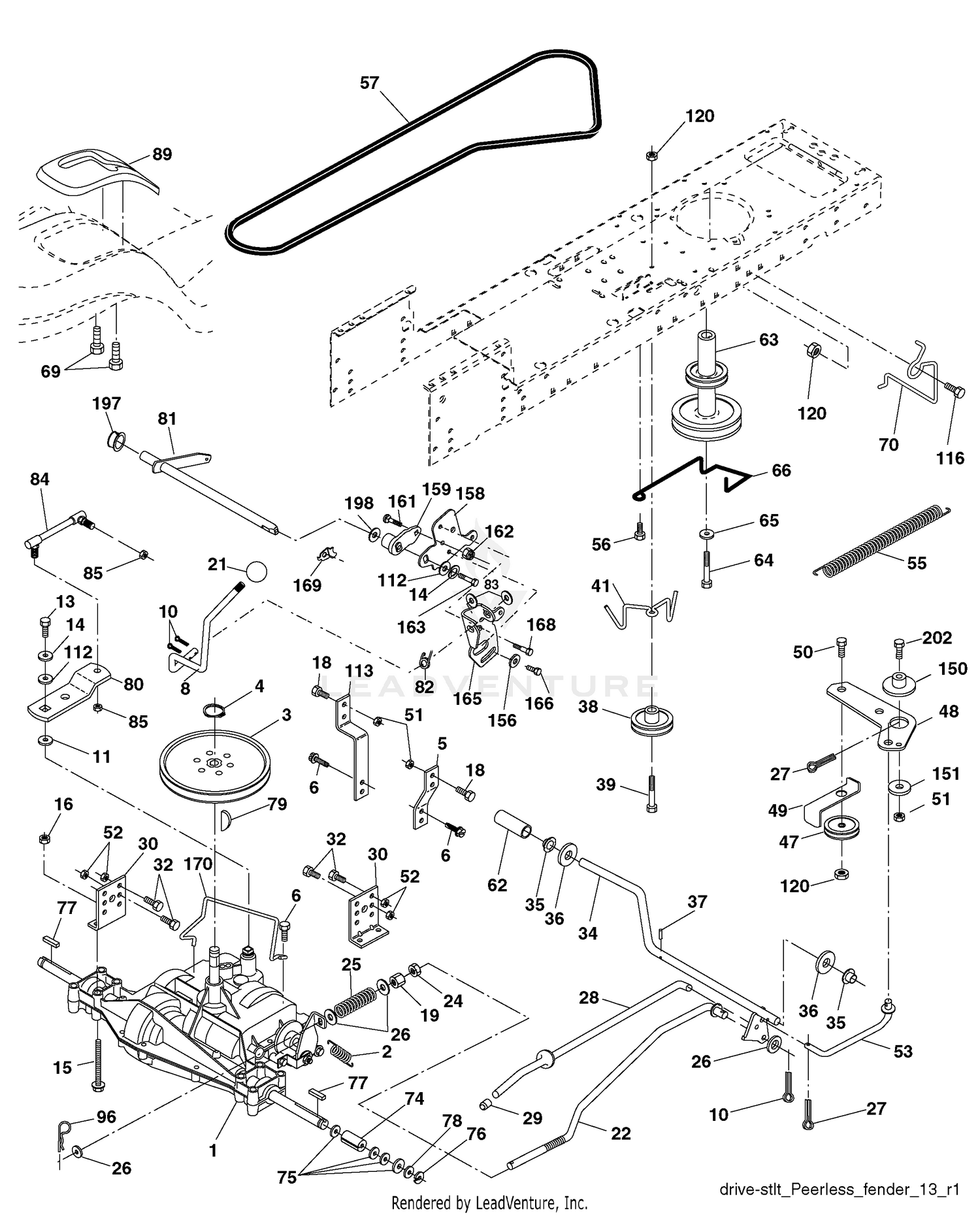

| Ref | Part Number | Description |
|---|
| 1 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 2 |
146682 |
Spring Return Brake Price: Call Us |
| 2 |
86-5580 |
HYD CYLINDER ASM Price: $665.22 |
| 3 |
123666X |
Pulley Transaxle 18" Tires Price: Call Us |
| 3 |
340-140 |
FITTING-TEE Price: $40.21 |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 4 |
322-2 |
SCREW-HH Price: $0.69 |
| 5 |
121520X |
Strap Torque 30 Degrees RH Price: Call Us |
| 5 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 6 |
131-4293 |
PIN PIVOT This part replaces 84-1350. Price: $27.48 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 7 |
86-3160 |
HOSE ASM Price: $77.30 |
| 8 |
192706 |
Rod Shifter Blk Price: Call Us |
| 8 |
86-3200 |
DISCONTINUED Price: Call Us |
| 9 |
3247-4 |
SCREW-SET Price: $0.54 |
| 10 |
2412-137 |
CLAMP-R, DOUBLE Price: $5.08 |
| 10 |
76020416 |
Pin Cotter 1/8 x 1 Cad Price: Call Us |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 11 |
70-1380 |
SLEEVE-PROTECTIVE Price: $42.56 |
| 12 |
340-125 |
FITTING-TEE Price: $64.10 |
| 13 |
74550412 |
Bolt 1/4-28 unf Gr. 8 w/Patch Price: Call Us |
| 13 |
86-3170 |
DISCONTINUED Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 14 |
88-1190 |
DISCONTINUED Price: Call Us |
| 15 |
74490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 15 |
86-2790-03 |
PIN-PIVOT, LH Price: $141.69 |
| 16 |
73800500 |
Nut 5/16-18 Price: Call Us |
| 16 |
88-1200-03 |
PIN-PIVOT, RH Price: $134.62 |
| 17 |
3220-7 |
NUT-JAM Price: $4.09 |
| 18 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 18 |
86-5450 |
COUPLER Price: $105.40 |
| 19 |
68-6480 |
BUSHING-FLANGE Price: $3.19 |
| 19 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
84-0730-03 |
ARM-LIFT, LH Price: $470.10 |
| 22 |
130804 |
Rod Brake LT Price: Call Us |
| 22 |
86-5890-03 |
ARM-LIFT, RH Price: $334.60 |
| 23 |
32108-58 |
SCREW-FH Price: $6.80 |
| 24 |
69-9300 |
PAD-BUMPER Price: $8.68 |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 26 |
93-7217 |
DISCONTINUED Price: Call Us |
| 27 |
76020412 |
Pin Cotter 1/8 x 3/4 Cad Price: Call Us |
| 27 |
94-8022 |
SWITCH-PRESSURE Price: $766.71 |
| 28 |
175765 |
Rod Brake Parking LT/YT Price: Call Us |
| 28 |
93-7204-03 |
MOUNT-PAD Price: $60.75 |
| 29 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 29 |
71673 |
Cap Brake Parking Black Price: Call Us |
| 30 |
174973 |
Bracket Transmission Price: Call Us |
| 30 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 31 |
325-11 |
SCREW-HH Price: $1.93 |
| 32 |
74760512 |
Bolt Fin Hex 5/16-18 x 3/4 Price: Call Us |
| 32 |
86-2280-01 |
TUBE-CARRIER, RH ASM Price: $252.07 |
| 33 |
86-2320-01 |
TUBE-CARRIER, LH ASM Price: $370.08 |
| 34 |
175578 |
Shaft Asm Pedal Foot Nibbed Price: Call Us |
| 34 |
21-3000-01 |
NUT-JAM, PUSH ARM Price: $37.02 |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
19211616 |
Washer 21/32 x 1 x 16 Ga. Price: Call Us |
| 36 |
86-8100-01 |
BALL JOINT ASM Price: $137.53 |
| 37 |
1572H |
Pin Roll 3/16 x 1" Price: Call Us |
| 37 |
69-7290-01 |
MOUNT-JOINT, BALL Price: $105.61 |
| 38 |
179114 |
Pulley Composite Flat Price: Call Us |
| 39 |
72110622 |
Bolt 3/8-16 x 2-3/4 Price: Call Us |
| 41 |
175556 |
Keeper Belt Idler Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
72110612 |
Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 unc Price: Call Us |
| 53 |
199652 |
Link Clutch Price: Call Us |
| 55 |
105709X |
Spring Return Clutch 6 75 Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
138255 |
V-Belt Traction Drive 95.25 Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Round Price: Call Us |
| 63 |
175410 |
Engine Pulley LT/YT Price: Call Us |
| 64 |
173937 |
Bolt Hex 7/16-20 x 4 Gr. 5 Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Price: Call Us |
| 69 |
142432 |
Screw 1/4 x 1/2 unc Price: Call Us |
| 70 |
134683 |
Guide Belt Mower Drive RH Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1 1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-ring #5133-75 Price: Call Us |
| 77 |
123583X |
Key Square 2 0 x 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 79 |
2228M |
Key Woodruff Price: Call Us |
| 80 |
131486 |
Arm Shift Transaxle Price: Call Us |
| 81 |
165594 |
Shaft Asm Cross Taper Price: Call Us |
| 82 |
165711 |
Spring Torsion Shift Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
166228 |
Link Transaxle Price: Call Us |
| 85 |
150360 |
Nut Lock Center 1/4-28 Price: Call Us |
| 89 |
192053X428 |
Console Shift Price: Call Us |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque 90 Degrees LH Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Lt Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrrtd 5/16 ID x 1.0 x .125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Price: Call Us |
| 170 |
187414 |
Keeper, Belt Transaxle Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8 Price: Call Us |
| 198 |
169593 |
Washer Nylon Price: Call Us |
