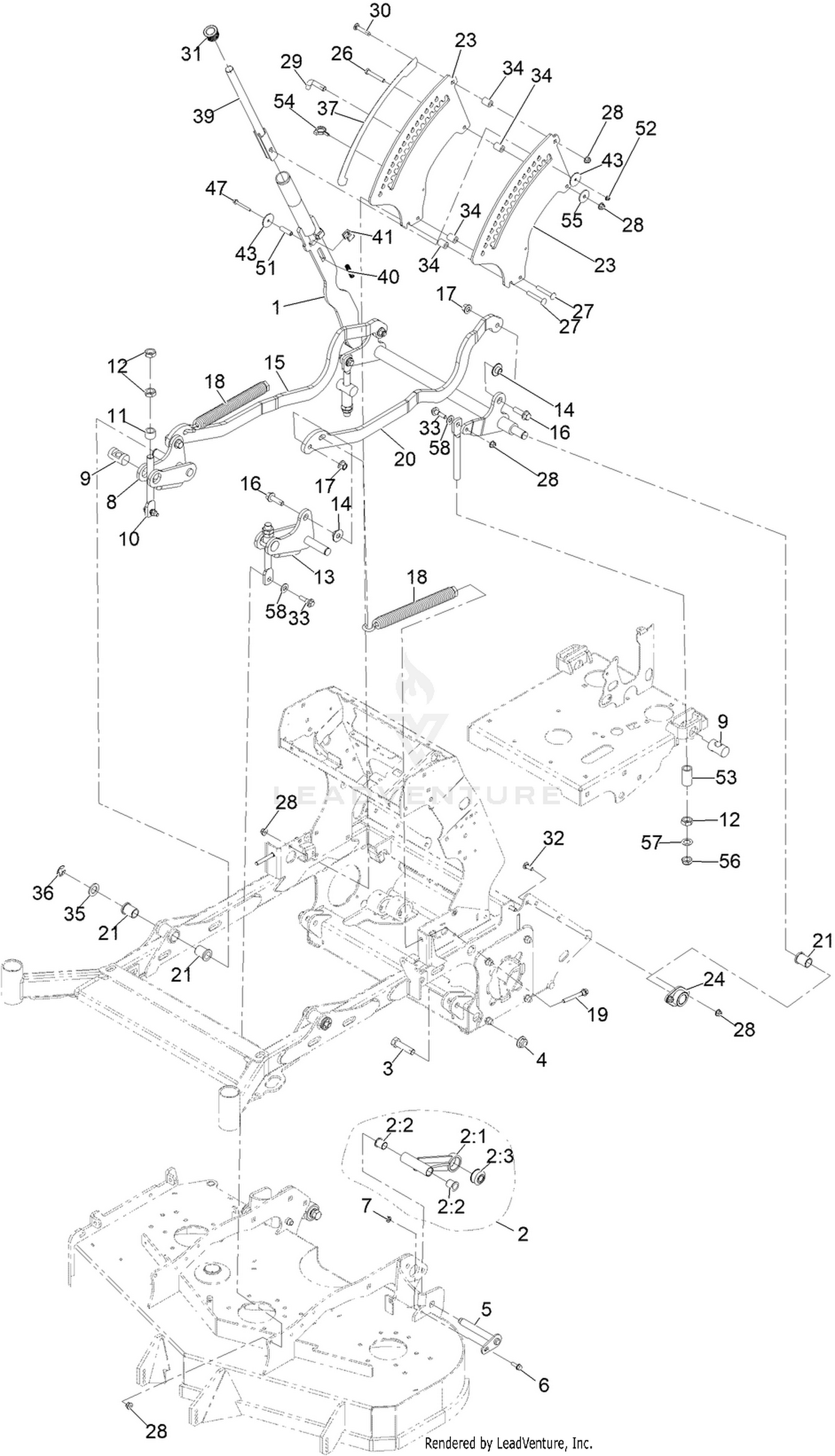

| Ref | Part Number | Description |
|---|
| 1 |
146-4535-03 |
Cross Shaft- Decklift- Rear [blac Price: $359.99 |
| 2 |
146-1271 |
ASM-DECK STRUT W/BUSHINGS Price: $41.99 |
| 3 |
121-2111 |
SCREW-HH Price: $28.99 |
| 4 |
142-8396 |
NUT-FLNG 5/8-18 CTRLOCK GR G Price: $3.19 |
| 5 |
146-5733 |
ASM-Deck Strut Pin Price: Call Us |
| 6 |
3234-29 |
SCREW-HHF Price: $2.49 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.89 |
| 8 |
146-5735-03 |
Weld-Arm-Decklift-Front-RH Price: Call Us |
| 9 |
142-7939 |
TRUNION-DECK LIFT Price: $20.99 |
| 10 |
146-3072 |
LINK-DECKLIFT Price: $19.99 |
| 11 |
142-7940 |
SPACER-DECKLIFT Price: $5.09 |
| 12 |
3220-7 |
NUT-JAM Price: $4.09 |
| 13 |
146-5734-03 |
Weld-Arm-Decklift-Front-LH Price: Call Us |
| 14 |
135-3954 |
SPACER Price: $13.99 |
| 15 |
146-1724-03 |
LINK-DECKLIFT-RH Price: $156.99 |
| 16 |
130-6481 |
SCREW-HHF Price: $4.29 |
| 17 |
99-5107 |
Nut-Lock 1/2-13 Price: $1.69 |
| 18 |
116-0886 |
SPRING-EXTENSION Price: $130.99 |
| 19 |
92-7674 |
BOLT-SHOULDER Price: $2.59 |
| 20 |
146-1725-03 |
LINK-DECKLIFT-LH Price: $156.99 |
| 21 |
142-4794 |
BUSHING-FLANGED Price: $14.99 |
| 23 |
146-4681-03 |
Plate-Selector-HOC Price: Call Us |
| 24 |
146-5176 |
SUPPORT-HOC SHAFT Price: $15.99 |
| 26 |
323-12 |
SCREW-HH Price: $2.29 |
| 27 |
3231-44 |
SCREW-CARR Price: $2.39 |
| 28 |
104-8301 |
NUT-HF, NI Price: $1.19 |
| 29 |
116-5584 |
PIN-HOC Price: $4.69 |
| 30 |
3231-6 |
SCREW-CARR Price: $2.69 |
| 31 |
146-0707 |
PLUG-PLASTIC HOC Price: $2.19 |
| 32 |
3231-22 |
SCREW-CARR Price: $3.09 |
| 33 |
130-0742 |
BOLT-SHOULDER Price: $2.29 |
| 34 |
106-5620 |
TUBE-INTERLOCK Price: $15.99 |
| 35 |
103-0357 |
WASHER Price: $2.29 |
| 36 |
32151-103 |
RING-RETAINING, EXT Price: $2.89 |
| 37 |
146-5364 |
Decal-Height Of Cut Price: Call Us |
| 39 |
146-4622 |
ASM-Plunger-HOC Price: $44.99 |
| 40 |
146-1198 |
SPRING Price: $2.29 |
| 41 |
146-1140 |
CHANNEL-HOC GUIDE Price: $2.29 |
| 43 |
146-0713 |
SPACER-HOC Price: $2.09 |
| 47 |
138-3326 |
SCREW-HHF Price: $2.49 |
| 51 |
146-0714 |
SPACER Price: $7.59 |
| 52 |
104-7201 |
NUT-HF Price: $1.29 |
| 53 |
142-8897 |
SPACER 1.13 O.D. X .81 I.D. X 2.05L Price: $20.99 |
| 54 |
105-1853 |
CLAMP-HOSE Price: $4.79 |
| 55 |
93-6099 |
WASHER Price: $3.69 |
| 56 |
3296-15 |
NUT-LOCK, NI Price: $2.49 |
| 57 |
9202574 |
Washer-Flat Price: $1.79 |
