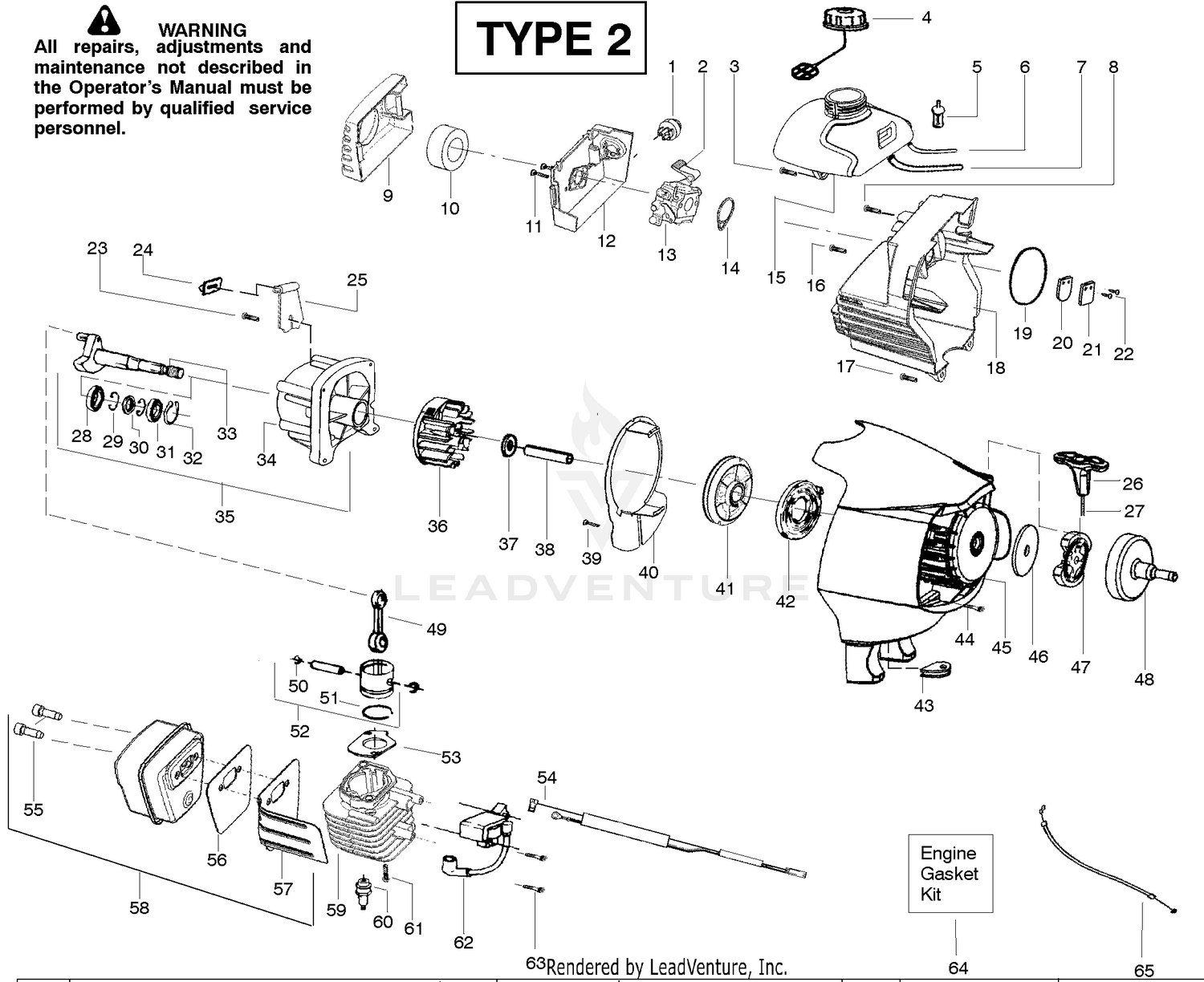

Engine - Type 2
Parts (88)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530047721 | Bulb-Purge Price: $3.99 |
| 2 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 2 | 530071717 | Kit-Choke Lever Price: $7.99 |
| 3 | 530015843 | Screw-tank Price: $1.99 |
| 3 | 67-8190-01 | BRACKET-SUPPORT, ENGINE Price: $50.66 |
| 4 | 2412-3 | CLAMP-HOSE Price: $3.49 |
| 4 | 530057973 | Assy-Fuel Cap This part replaces 530049386. Price: $7.99 |
| 5 | 2412-111 | CLAMP Price: $4.39 |
| 5 | 530095646 | Assy-Fuel pickup Price: $2.69 |
| 6 | 3334-945 | TIE-CABLE Price: $0.43 |
| 6 | 530069247 | Kit-Line Carb/Purge This part replaces 530071404. Price: $3.69 |
| 7 | 2412-130 | CLAMP-HOSE Price: $2.57 |
| 7 | 530069216 | Kit-Fuel/Purge line Price: $3.99 |
| 8 | 3234-5 | SCREW-HHF Price: $0.42 |
| 8 | 530015775 | Screw Price: $1.99 |
| 9 | 115-8155 | DECAL-WARNING This part replaces 93-7275. Price: $5.90 |
| 9 | 545000501 | Cover-Air box Price: $3.99 |
| 10 | 139-0686 | RAIN CAP ASM This part replaces 105-2539. Price: $25.83 |
| 10 | 545082301 | Filter-Air Price: $2.99 |
| 11 | 530015849 | Screw-Carb. Price: $1.99 |
| 12 | 3234-11 | SCREW-HHF Price: $1.23 |
| 12 | 545000601 | Box-Air Price: $4.99 |
| 13 | 32128-20 | NUT-HF Price: $0.99 |
| 14 | 545030102 | Seal-Carb.(kit) Price: $5.99 |
| 15 | 3234-36 | SCREW-HHF Price: $0.75 |
| 15 | 545075305 | Assy-Fuel Tank This part replaces 545075304. Price: $11.99 |
| 16 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 16 | 530015771 | Screw-Crankcase Price: $1.99 |
| 17 | 32128-23 | NUT-HF Price: $1.51 |
| 17 | 530015952 | Screw-Shroud Price: $1.99 |
| 18 | 545000701 | Assy-Rear Shroud Price: $17.99 |
| 18 | 98-4518-03 | BRACKET-CLEANER, AIR Price: $75.61 |
| 19 | 3290-378 | TIE-CABLE Price: $0.79 |
| 19 | 545030102 | O-ring-Shroud (kit) Price: $5.99 |
| 20 | 3234-32 | SCREW-HHF Price: $8.48 |
| 20 | 530027593 | Valve-Reed Price: $1.99 |
| 21 | 108-0638 | BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 21 | 530029781 | Stop-Reed Price: $1.99 |
| 22 | 105-0050-03 | RESERVOIR BRACKET ASM Price: $65.30 |
| 22 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 23 | 530015875 | Screw-Retainer Price: $1.99 |
| 24 | 110-3257 | HOSE-FUEL Price: $17.26 |
| 24 | 530055492 | Isolator-Tank Price: $1.99 |
| 25 | 530054941 | Ret.-Tank Price: $1.99 |
| 26 | 104-3428 | AIR CLEANER ASM Price: $271.20 |
| 26 | 530054834 | Handle-Starter Price: $1.99 |
| 27 | 104-3434 | HOSE-INLET, AIR Price: $108.76 |
| 27 | 545050409 | Kit-Rope Price: $4.99 |
| 28 | 545081601 | Bearing-Inner Price: $7.99 |
| 29 | 530015787 | Retainer Price: $1.99 |
| 29 | 99-3441 | HARNESS-WIRE, FUSIBLE LINK Price: $146.90 |
| 30 | 105-7807-03 | GUARD-BELT, FAN Price: $278.06 |
| 30 | 530019158 | Seal Price: $2.99 |
| 31 | 530032102 | Bearing-Outer Price: $8.99 |
| 32 | 3254-6 | WASHER-LOCK, INTERNAL Price: $0.31 |
| 32 | 530015789 | Ret.-Crankshaft Price: $2.99 |
| 33 | 530028807 | Assy-Crankshaft Price: $19.99 |
| 34 | 70-8470 | SCREW-HH Price: $1.76 |
| 36 | 2112-6 | CLAMP-MUFFLER Price: $7.53 |
| 36 | 530055524 | Assy-Flywheel Price: $22.99 |
| 37 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 37 | 530016030 | Washer Price: $1.99 |
| 38 | 104-3774-03 | BRACKET-BULKHEAD Price: $32.96 |
| 38 | 530055620 | Spacer Price: $4.99 |
| 39 | 240-7 | GROMMET-RUBBER Price: $16.51 |
| 39 | 530015775 | Screw-Baffle Price: $1.99 |
| 40 | 545115201 | Plate-Baffle Price: $2.99 |
| 41 | 545050408 | Kit-Pulley Price: $14.99 |
| 42 | 545008014 | KIT STARTER SPRING This part replaces 545054901. Price: $3.99 |
| 43 | 530019182 | Grommet Price: $1.99 |
| 44 | 530016386 | Screw-F/hsg. Price: $5.99 |
| 45 | 530055248 | Assy-Fan Housing Price: $17.99 |
| 46 | 530094189 | Washer-Clutch Price: $2.99 |
| 47 | 530055122 | Assy-Clutch Price: $8.99 |
| 48 | 530150247 | Assy-Drum/Adapter Price: $17.99 |
| 49 | 530010960 | Assy-Conn. Rod Price: $13.99 |
| 50 | 530015162 | Ret.-Piston pin Price: $1.99 |
| 51 | 530012595 | Ring-Piston Price: $4.99 |
| 53 | 545030102 | Gasket-Cylinder(kit) Price: $5.99 |
| 54 | 530058846 | Assy-Leadwire Price: $4.99 |
| 55 | 530016387 | Bolt-Muffler 1/4"-20 Price: $1.99 |
| 56 | 545030102 | Gasket-Muffler (kit) Price: $5.99 |
| 57 | 545033201 | Shield Price: $3.99 |
| 59 | 530012589 | Cylinder Price: $17.99 |
| 60 | 952030249 | Plug-Spark(RCJ-6Y) Price: Call Us |
| 61 | 530001624 | Bolt-Cyl. 1/4"-20 Price: $1.99 |
| 62 | 545081826 | KIT MODULE W/O INTERRUPT This part replaces 530039234. Price: $31.99 |
| 63 | 530016357 | Screw-Module Price: $1.99 |
