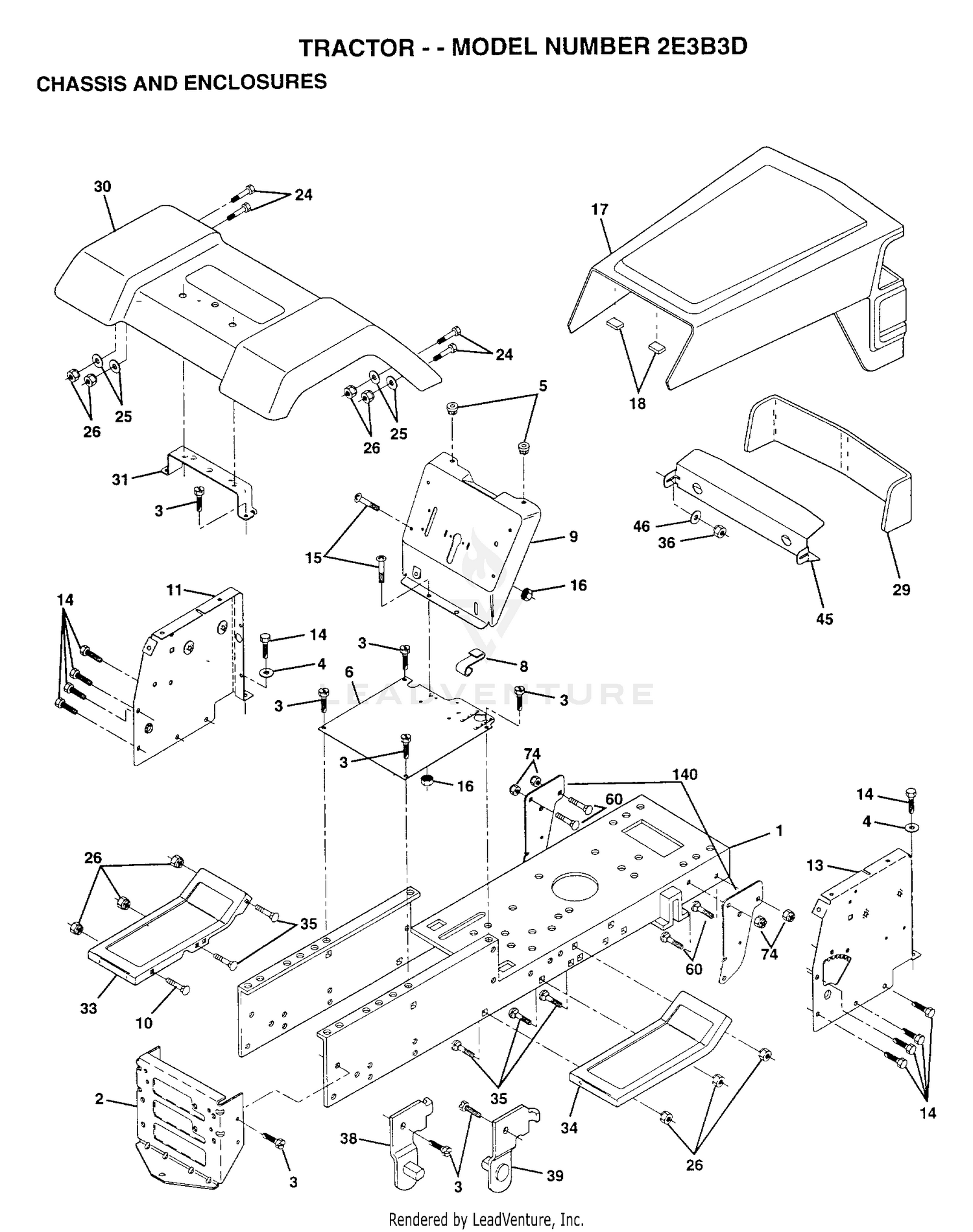

CHASSIS AND ENCLOSURES
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 151169 | CHASSIS WLDMT 11G Price: Call Us |
| 2 | 105-8122 | SEAL-BOOT Price: $19.70 |
| 2 | 140356 | SUB= 145009 Price: Call Us |
| 3 | 17490612 | SCREW Price: Call Us |
| 4 | 105-8120 | BEARING-CONE Price: $98.15 |
| 4 | 19131216 | WASHER Price: Call Us |
| 5 | 105-8119 | BEARING-CUP Price: $130.48 |
| 5 | 146077 | SUB= 155272 Price: Call Us |
| 6 | 105-8124 | STUD-WHEEL Price: $7.84 |
| 6 | 145208X016 | SUB= 155924X015 Price: Call Us |
| 7 | 105-8125 | BOLT-HEAD, SOCKET Price: $6.53 |
| 8 | 3253-18 | WASHER-LOCK Price: $0.68 |
| 9 | 146757X011 | DASH.SLKSC.LT.1PC Price: Call Us |
| 10 | 105-8121 | PIN-DOWEL Price: $0.41 |
| 10 | 72140608 | SUB= 72110608 Price: Call Us |
| 11 | 105-8117 | BEARING-CUP Price: $114.89 |
| 11 | 146956 | PANEL.DASH.LH. Price: Call Us |
| 12 | 105-8118 | BEARING-CONE Price: $87.73 |
| 13 | 146961X012 | SUB= 155934X010 Price: Call Us |
| 14 | 17490608 | SCREW LT Price: Call Us |
| 15 | 74180512 | SCREW Price: Call Us |
| 16 | 105-8113 | GEAR-RING Price: $633.38 |
| 16 | 73510500 | NUT Price: Call Us |
| 17 | 105-8132 | RING-RETAINING Price: $16.29 |
| 17 | 133956X505 | HOOD/GRILL ASM Price: Call Us |
| 18 | 126938X | SUB= 532126938 Price: Call Us |
| 18 | 353-990 | PLUG ASM Price: $10.01 |
| 19 | 105-8138 | CAP-END Price: $92.32 |
| 21 | 105-8133 | PLUG-THRUST Price: $36.88 |
| 22 | 105-8123 | WASHER-THRUST Price: $20.15 |
| 23 | 105-8131 | RING-RETAINING Price: $3.05 |
| 24 | 105-8114 | GEAR-PRIMARY Price: $100.24 |
| 24 | 74780616 | BOLT Price: Call Us |
| 25 | 105-8115 | SHAFT-DRIVE Price: $134.40 |
| 25 | 19131312 | WASHER Price: Call Us |
| 26 | 105-8129 | CARRIER-PRIMARY Price: $691.83 |
| 26 | 73800600 | NUT Price: Call Us |
| 27 | 105-8139 | GEAR-SECONDARY Price: $146.04 |
| 28 | 105-8130 | CARRIER-SECONDARY Price: $726.53 |
| 29 | 105-8136 | SHIM KIT Price: $177.70 |
| 29 | 133805 | SUB= 133954 Price: Call Us |
| 30 | 109872X505 | FENDER Price: Call Us |
| 31 | 136619 | BRKT FENDER Price: Call Us |
| 33 | 105476X505 | FOOTREST LH Price: Call Us |
| 34 | 105475X505 | FOOTREST RH Price: Call Us |
| 35 | 72110606 | BOLT Price: Call Us |
| 36 | 108067X | PAL NUT LT Price: Call Us |
| 38 | 139886 | BRACKET ASM LH Price: Call Us |
| 39 | 139887 | BRACKET ASM RH Price: Call Us |
| 45 | 132257 | SUB= 918132257 Price: Call Us |
| 46 | 127316X | RETAINER Price: Call Us |
| 60 | 72140606 | BOLT Price: Call Us |
| 74 | 73680600 | SUB= 73690600 Price: Call Us |
| 140 | 150556 | SUB= 158739 Price: Call Us |
