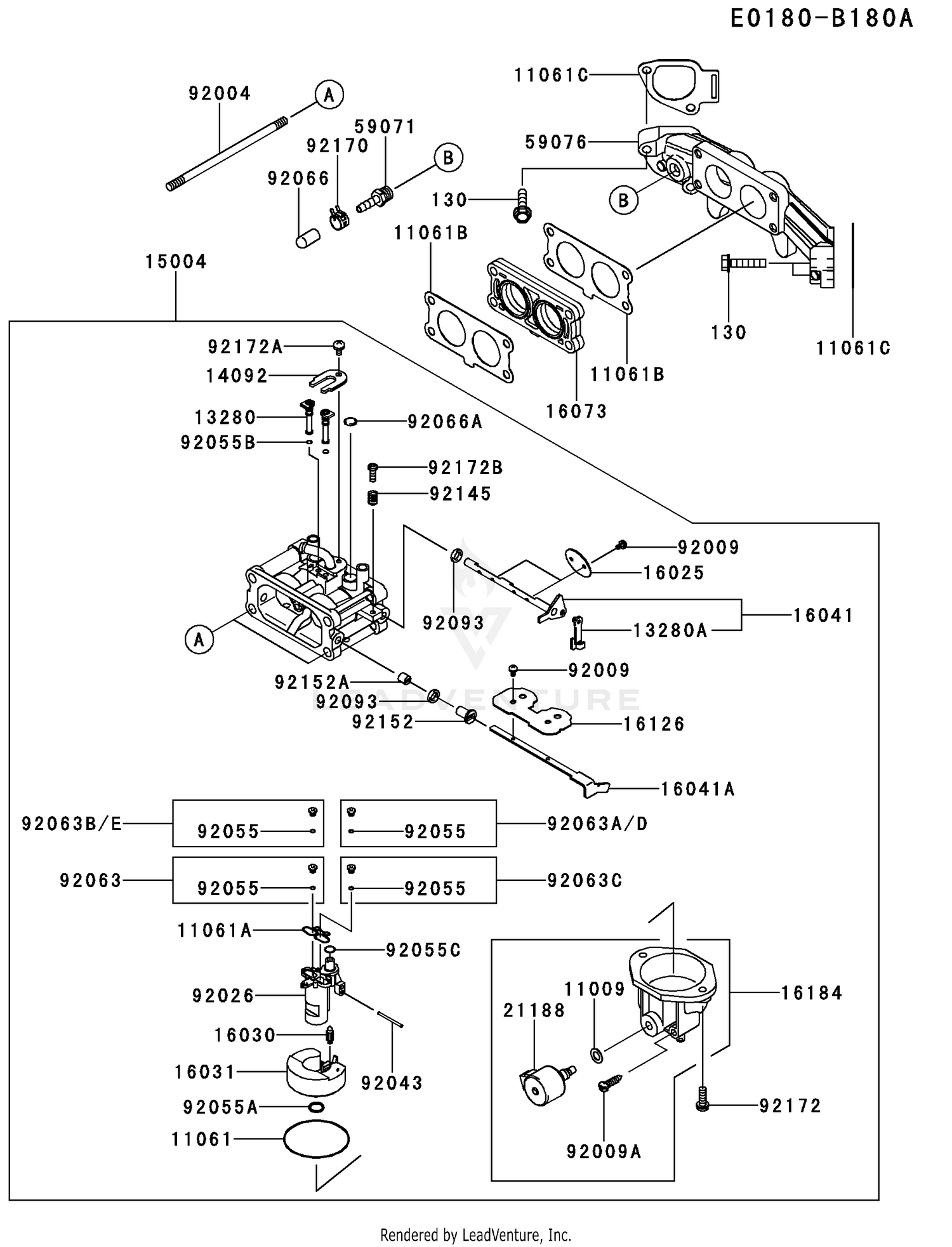

| Ref | Part Number | Description |
|---|
| 11009 |
11009-2056 |
GASKET,SCREW-CARBURETOR Price: $0.63 |
| 11061 |
11061-1286 |
GASKET,FLOAT CHAMBER Price: $1.94 |
| 11061A |
11061-7037 |
GASKET,CARB SPACER Price: $5.79 |
| 11061B |
11061-7092 |
GASKET,CARBURETOR/MANIFOLD Price: $1.03 |
| 11061C |
11061-7093 |
GASKET,MANIFOLD Price: $1.63 |
| 13280 |
13280-7003 |
HOLDER Price: $11.17 |
| 13280A |
13280-7004 |
HOLDER Price: $7.64 |
| 14092 |
14092-7001 |
COVER Price: $5.52 |
| 15004 |
15004-1011 |
CARBURETOR-ASSY Price: $388.02 |
| 16025 |
16025-0025 |
VALVE-THROTTLE Price: $21.22 |
| 16030 |
16030-7004 |
VALVE-FLOAT Price: $22.70 |
| 16031 |
16031-7005 |
FLOAT Price: $25.23 |
| 16041 |
16041-7052 |
SHAFT-CARBURETOR,THROTTLE Price: $34.77 |
| 16041A |
16041-7053 |
SHAFT-CARBURETOR,CHOKE Price: $35.03 |
| 16073 |
16073-0875 |
INSULATOR Price: $8.58 |
| 16126 |
16126-7022 |
VALVE Price: $4.74 |
| 16184 |
16184-7023 |
CHAMBER-ASSY-FLOAT Price: $195.13 |
| 21188 |
21188-7003 |
SOLENOID Price: $83.53 |
| 59071 |
59071-0740 |
JOINT,MANIFOLD-INTAKE Price: $4.17 |
| 59076 |
59076-0012 |
MANIFOLD-INTAKE Price: $106.07 |
| 92004 |
92004-0723 |
BOLT-STUD,6X115 Price: $2.28 |
| 92009 |
92009-7003 |
SCREW Price: $0.78 |
| 92009A |
92009-7006 |
SCREW,DRAIN Price: $1.11 |
| 92026 |
92026-7011 |
SPACER Price: $7.44 |
| 92043 |
92043-7016 |
PIN,FLOAT Price: $2.12 |
| 92055 |
92055-7013 |
RING-O Price: $0.84 |
| 92055A |
92055-7016 |
RING-O Price: $1.89 |
| 92055B |
92055-7023 |
RING-O Price: $5.45 |
| 92055C |
92055-7024 |
RING-O Price: $0.84 |
| 92063 |
92063-0723 |
JET-MAIN,#113 Price: $7.90 |
| 92063A |
92063-7069 |
JET-MAIN,#108, SEA-LEVEL TO 3,280FT ELEVATION Price: $27.00 |
| 92063B |
92063-7119 |
JET-MAIN,#106 Price: $26.91 |
| 92063C |
92063-7135 |
JET-MAIN,#115 Price: $17.08 |
| 92063D |
92063-7154 |
JET-MAIN,#111,3280FT Price: $11.07 |
| 92063E |
92063-7161 |
JET-MAIN,#109,3280FT Price: $7.54 |
| 92066 |
92066-0095 |
PLUG Price: $4.79 |
| 92066A |
92066-0780 |
PLUG,WELCH Price: $0.97 |
| 92093 |
92093-7002 |
SEAL,D=6.9 Price: $1.75 |
| 92145 |
92145-7039 |
SPRING Price: $2.39 |
| 92152 |
92152-7018 |
COLLAR Price: $2.76 |
| 92152A |
92152-7019 |
COLLAR Price: $1.76 |
| 92170 |
92170-2042 |
CLAMP Price: $1.18 |
| 92172 |
92172-7005 |
SCREW,M5 Price: $1.14 |
| 92172A |
92172-7006 |
SCREW,M4 Price: $1.08 |
| 92172B |
92172-7039 |
SCREW,THROTTLE ADJUST Price: $1.25 |
