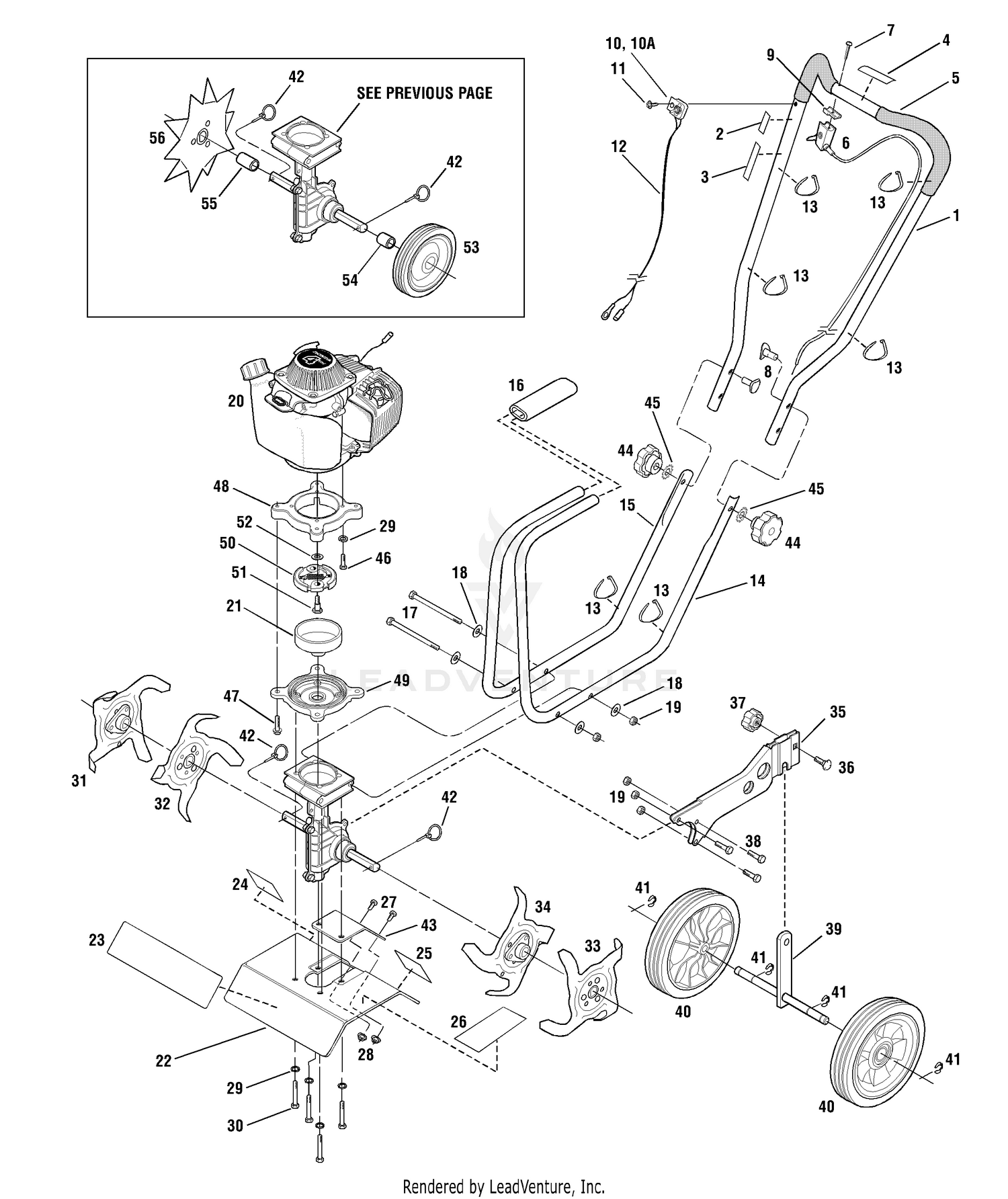

| Ref | Part Number | Description |
|---|
| 2 |
777I00008 |
LABEL-ON/OFF SWITCH Not Available Price: |
| 3 |
777I00007 |
LABEL-FREE HAND HERE Not Available Price: |
| 4 |
777I00009 |
LABEL-TINE ENGAGEMENT Not Available Price: |
| 5 |
1917451 |
HANDLEBAR GRIP, PVC Not Available Price: |
| 6 |
1917755P |
THROTTLE CABLE This part replaces 1917755. Price: $30.15 |
| 7 |
1750608 |
SCR-PH M10 Not Available Price: |
| 8 |
710-1174 |
SCREW 5/16-18 x 2.0 This part replaces 1731025. Price: $6.28 |
| 9 |
1909775 |
SPACER-THROTTLE CO Not Available Price: |
| 10 |
1983718 |
IGN. SWITCH 96 Not Available Price: |
| 10A |
1981012001 |
SWITCH BRACKET AS/850 Not Available This part replaces 1981012. Price: |
| 11 |
1766503 |
SCR-PH M12 Not Available Price: |
| 12 |
1918051 |
WIRE HARNESS Not Available Price: |
| 14 |
1917576001 |
HANDLEBAR-LOWER LT Not Available Price: |
| 15 |
1917575001 |
HANDLEBAR-LOWER RT Not Available Price: |
| 16 |
1909720 |
GRIP-LOWER H/BAR Not Available Price: |
| 17 |
1983663 |
SCREW 1/4- Not Available Price: |
| 18 |
736-0463 |
Flat Washer, 1/4-20 Price: $3.91 |
| 19 |
1110106 |
NUT-HK 1/4-20 Not Available Price: |
| 21 |
718-04039 |
CLUTCH DRUM Not Available This part replaces 1917531. Price: |
| 23 |
777D06104 |
LABEL-TILLER/EDGER Not Available Price: |
| 24 |
777S00012 |
LABEL-ROTATING TIN Not Available Price: |
| 25 |
777S30647 |
LABEL-HOT SURFACE Not Available Price: |
| 26 |
777S00013 |
LABEL-AVOID INJURY Not Available Price: |
| 27 |
1186292 |
SCR-HFLK 1 Not Available Price: |
| 28 |
1186387 |
NUT-HFLK 10-24 Not Available Price: |
| 29 |
936-0329 |
Lock Washer This part replaces 736-0329. Price: $3.90 |
| 30 |
710-0501 |
Hex Cap Screw, 1/4-20 x 2 Price: $6.24 |
| 31 |
1909540 |
BOLO TINE RIGHT OUTER Not Available Price: |
| 32 |
1909539 |
ASSEMBLY-BOLO RT INNER Not Available Price: |
| 33 |
1909712 |
ASSEMBLY-BOLO LT OUTER Not Available Price: |
| 34 |
1909711 |
ASSEMBLY-BOLO LT INNER Not Available Price: |
| 35 |
1909680001 |
ASSEMBLY-WHEEL BRACKET Not Available Price: |
| 36 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 This part replaces GW-90077. Price: $3.53 |
| 37 |
1909835 |
KNOB 5/16-18 INSERT Not Available Price: |
| 38 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 39 |
1909517001 |
AXLE Not Available Price: |
| 40 |
734-04261 |
Wheel This part replaces 1917754. Price: $18.51 |
| 41 |
GW-9532 |
E-Ring Price: $3.22 |
| 42 |
1185590 |
Ring Lock Pin Price: $4.26 |
| 43 |
1981022010 |
PLATE REAR Not Available Price: |
| 44 |
1763767 |
KNOB Not Available Price: |
| 45 |
1177038 |
WASHER-LK .9 x .31 Not Available Price: |
| 46 |
GW-90041 |
HEX SCREW Not Available Price: |
| 47 |
1186332 |
SCR-HFLK 5 Not Available Price: |
| 48 |
1917530 |
ADAPTER-ENGINE MAC Not Available Price: |
| 49 |
1917529 |
ADAPTER-TRANS MACH Not Available Price: |
