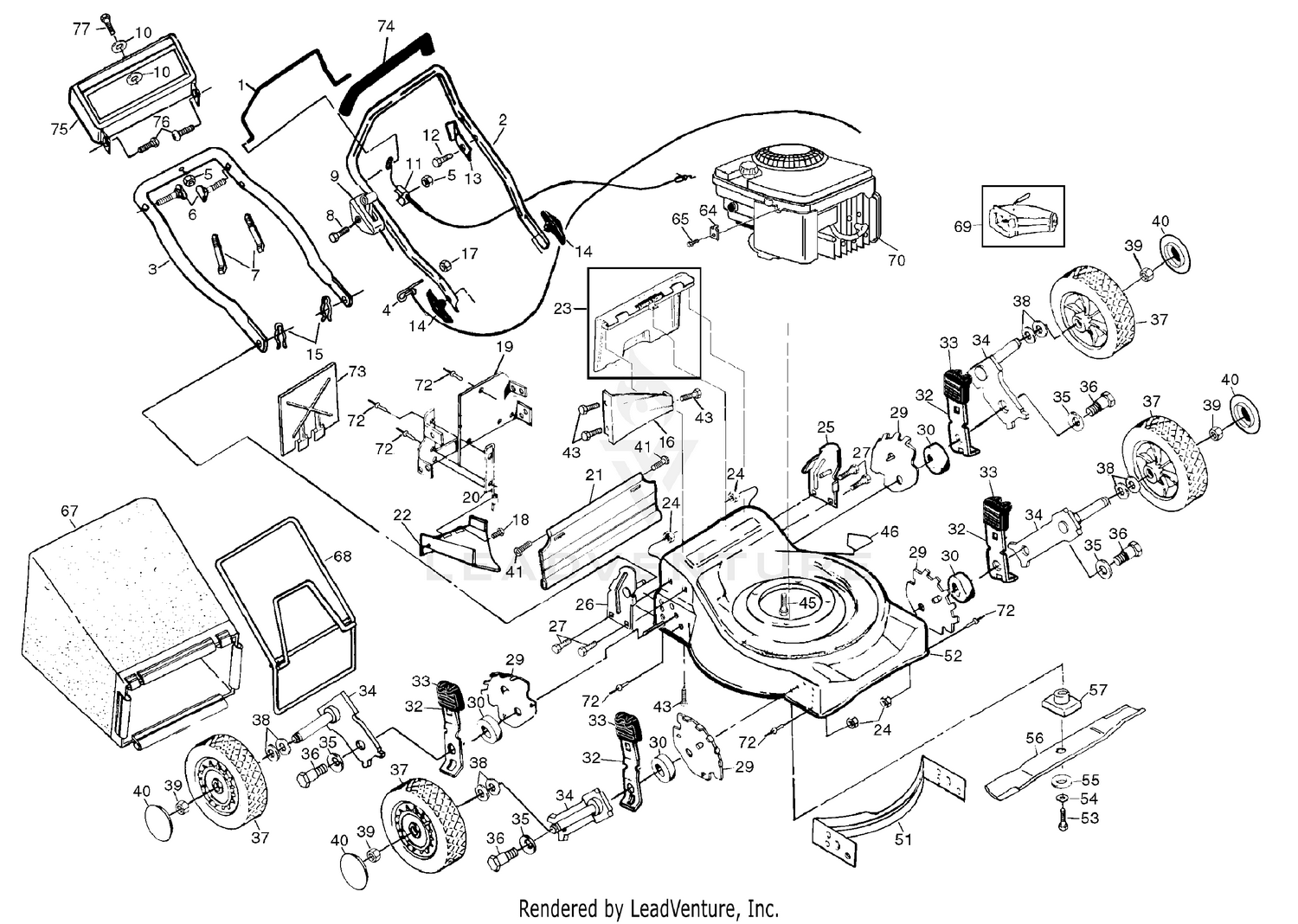

| Ref | Part Number | Description |
|---|
| 1 |
237-21 |
O-RING Price: $0.70 |
| 1 |
532850735 |
CONTROL BAR/BLACK Price: $4.69 |
| 2 |
532166268 |
UPPER HANDLE This part replaces 532150041. Price: $20.88 |
| 2 |
92-7637 |
HOSE ASM Price: $92.60 |
| 3 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 3 |
532157081 |
HANDLE.LOWER.BLACK This part replaces 532125293. Price: $54.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532132001. Price: $7.99 |
| 4 |
98-2438 |
SUPPORT ARM WA - LH This part replaces 93-2717. Price: $1,174.09 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532063601. Price: $1.99 |
| 5 |
93-2699 |
PIN Price: $48.15 |
| 6 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 6 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532131959. Price: $9.99 |
| 7 |
2412-93 |
CLAMP-R Price: $1.02 |
| 7 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 8 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 8 |
532158755 |
SCREW.PAN.HEAD This part replaces 532144929. Price: $4.99 |
| 9 |
532700417 |
THROTTLE CONTROL Price: $17.99 |
| 9 |
92-7643 |
HYD HOSE ASM Price: $118.39 |
| 10 |
237-78 |
O-RING Price: $3.85 |
| 10 |
532085723 |
WASHER PM Price: $2.99 |
| 11 |
532130861 |
CABLE.MZR.51.RT.SP./PU. Price: $10.99 |
| 11 |
92-7632 |
HARNESS - WIRE Price: $758.90 |
| 12 |
67-1750 |
BUSHING Price: $0.92 |
| 12 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 13 |
33105-040 |
SCREW-HHF Price: $1.49 |
| 13 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 14 |
53-6380 |
WASHER-FLAT Price: $8.62 |
| 14 |
532183724 |
KIT.KNOB.HANDLE.SERVICE This part replaces 532136376. Price: $9.99 |
| 15 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 15 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 16 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 16 |
532125035 |
REAR BAFFLE Price: $9.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 17 |
94-1449 |
FITTING-STR,ORIF Price: $112.90 |
| 18 |
138-6956 |
CYLINDER ASM-HYDRAULIC This part replaces 93-2631. Price: $692.61 |
| 18 |
532150050 |
SCREW.HXTAP.10-24 Price: $2.99 |
| 19 |
532700356 |
BACK PLATE This part replaces 532138865. Price: $13.98 |
| 19 |
93-2700 |
ROLLER-PLASTIC Price: $30.55 |
| 20 |
33029-00 |
NUT-LOCK, NI Price: $2.92 |
| 20 |
532700363 |
SIDE BAFFLE This part replaces 532138866. Price: $3.68 |
| 21 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 21 |
532188984 |
SKIRT.REAR.20RD This part replaces 532140657. Price: $10.99 |
| 22 |
532133188 |
DISCHARGE BAFFLE This part replaces 532125378. Price: $4.64 |
| 22 |
93-2705 |
LINK REAR *B Price: $9.45 |
| 23 |
93-2704-03 |
LINK-LEFT This part replaces 93-2704. Price: $23.18 |
| 24 |
256-115 |
WASHER-THRUST Price: $1.90 |
| 24 |
596322601 |
Nuts This part replaces 532751592. Price: $2.99 |
| 25 |
532150956 |
KIT.BRKT.HDLE.R/L This part replaces 532139699. Price: $12.30 |
| 25 |
94-8949 |
BUSHING-FLANGE This part replaces 93-7408. Price: $2.51 |
| 26 |
532150956 |
KIT.BRKT.HDLE.R/L This part replaces 532139698. Price: $12.30 |
| 26 |
93-2710 |
DISCONTINUED Price: Call Us |
| 27 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 27 |
93-6687 |
DECAL-NO STEP This part replaces 36-3400. Price: $14.45 |
| 28 |
93-4234 |
SCREW-HSH Price: $6.08 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 29 |
532410807 |
BRACKET.ADJ.WHEEL.5POS.ADS This part replaces 532139901. Price: $3.99 |
| 30 |
532401629 |
SPACER.HEIGHT.ADJUSTER This part replaces 532146630. Price: $3.99 |
| 30 |
94-8948 |
BUSHING - STRAIGHT This part replaces 93-7409. Price: $7.56 |
| 31 |
94-8947 |
BUSHING-FLANGE This part replaces 93-7561. Price: $4.54 |
| 32 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532141730. Price: $4.99 |
| 32 |
93-7524 |
DISCONTINUED Price: Call Us |
| 33 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 33 |
93-9181 |
KNUCKLE - PIVOT *B Price: $573.32 |
| 34 |
532145935 |
ARM.AXLE.ASM.BZP This part replaces 532149857. Price: $4.99 |
| 34 |
99-5610 |
PIN This part replaces 93-9161. Price: $40.16 |
| 35 |
532062335 |
WASHER.BELLEVILLE (3 2 LB) Price: $7.99 |
| 35 |
94-8946 |
WASHER-THRUST This part replaces 94-1427. Price: $1.96 |
| 36 |
532174719 |
BOLT SHOULDER 3/8 -16X1 This part replaces 532142748. Price: $7.99 |
| 36 |
82-8170 |
CLAMP Price: $17.27 |
| 37 |
532435276 |
WHEEL.8X1.75.CF5SPK.RAD.BLACK This part replaces 532800333. Price: $24.99 |
| 37 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 38 |
532428450 |
KIT.O-RING/WASHER This part replaces 532057143. Price: $3.99 |
| 38 |
93-7960 |
SPACER Price: $5.67 |
| 39 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 39 |
60-6700 |
BOLT-HH Price: $1.29 |
| 40 |
532850845 |
HUB CAP Price: $3.99 |
| 40 |
92-8754 |
DISCONTINUED Price: Call Us |
| 41 |
532088652 |
HINGE SCREW Price: $3.99 |
| 41 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 42 |
98-8188 |
PIN WA W/NUT This part replaces 93-9189. Price: $9.33 |
| 43 |
532054583 |
SCREW Price: $4.99 |
| 43 |
93-2707 |
LINK WA Price: $175.04 |
| 44 |
93-4248 |
DISCONTINUED Price: Call Us |
| 45 |
256-172 |
BUSHING Price: $4.57 |
| 45 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 46 |
33108-035 |
SCREW-HHF Price: $24.13 |
| 46 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 47 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 48 |
69-8980 |
WASHER Price: $0.58 |
| 49 |
94-1430 |
DISCONTINUED Price: Call Us |
| 50 |
340-78 |
NUT-LOCK Price: $1.63 |
| 51 |
532125311 |
FRONT BAFFLE Price: $10.83 |
| 51 |
94-1444 |
UNION-BULKHEAD Price: $33.59 |
| 52 |
92-7635 |
DISCONTINUED Price: Call Us |
| 53 |
340-75 |
BULKHEAD-TEE Price: $45.10 |
| 53 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 54 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 55 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 56 |
204340218 |
MULCHING BLADE 20" (340218) This part replaces 532134871. Price: $11.99 |
| 57 |
581547901 |
ADAPTOR.BLADE.7/8 This part replaces 532850977. Price: $14.99 |
| 65 |
532083816 |
SCREW.HEX.HEAD.WASHER.10-16 Price: $4.99 |
| 67 |
532134048 |
This part replaces 532800386. Price: $36.95 |
| 68 |
532088614 |
CATCHER.FRAME.WALK Price: $44.99 |
| 72 |
532128415 |
RIVET BLIND Price: $3.99 |
| 73 |
532166650 |
MULCH.PLUG.20RD This part replaces 532142167. Price: $17.99 |
| 74 |
585161003 |
GRIP.HANDLE.FOAM.438MM This part replaces 532850724. Price: $4.99 |
| 75 |
532800547 |
TRIM PLATE Price: $7.15 |
| 76 |
532036953 |
SCREW Price: $3.15 |
| 77 |
874760424 |
Bolt, Hex 1/4-20 x 1-1/2 This part replaces 532085436. Price: $2.42 |
| 532131843 |
HOUSING |
DECAL Price: $3.40 532131843 |
| 532150321 |
NAMEPLATE |
HUSQVARNA Price: $4.99 532150321 |
