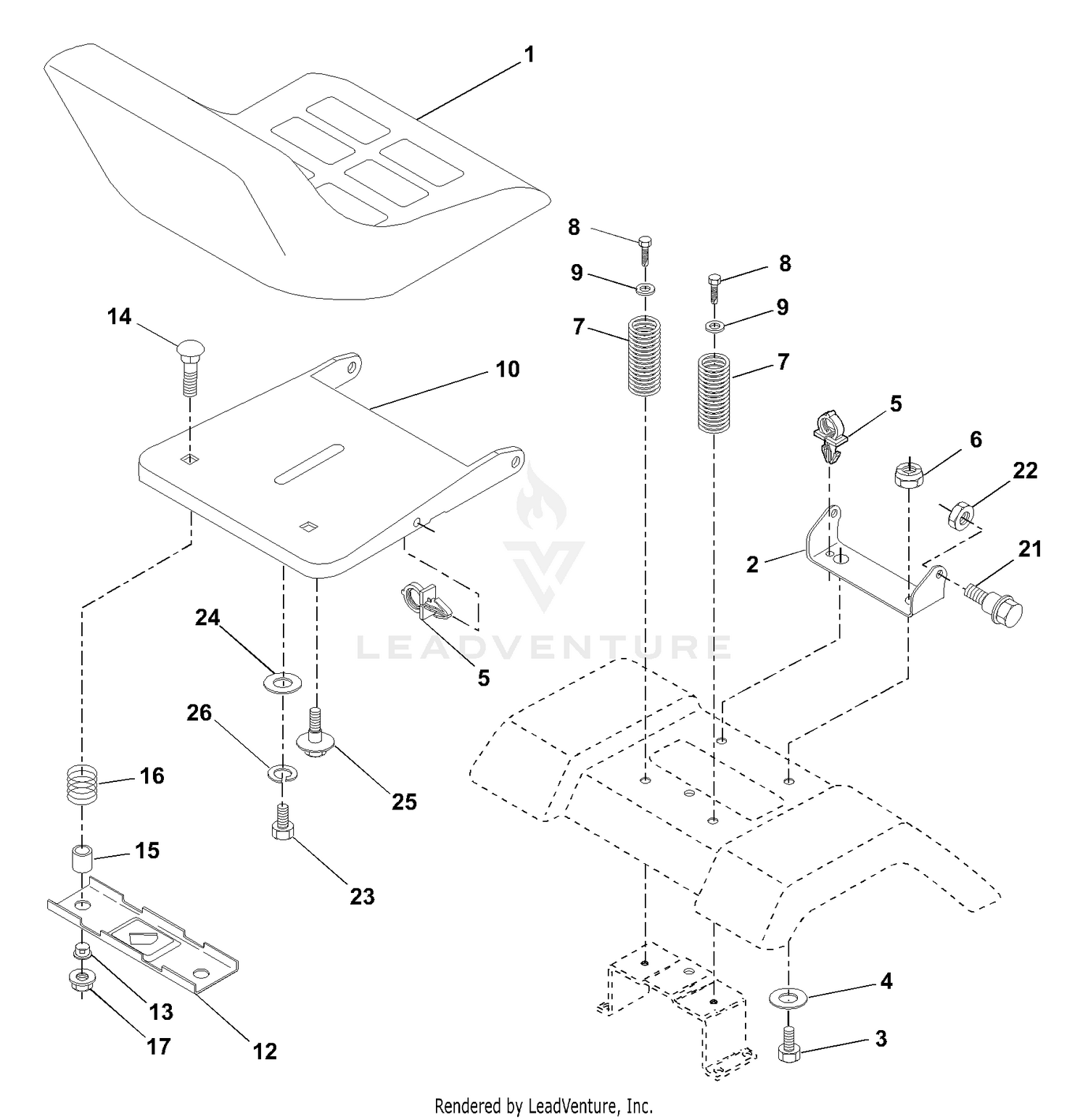

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG This part replaces 532130875. Price: $149.99 |
| 1 |
74-9080 |
DISCONTINUED Price: Call Us |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
323-9 |
SCREW-HH Price: $1.29 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
32148-10 |
NUT-CLINCH Price: $1.29 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
323-5 |
SCREW-HH This part replaces 323-33. Price: $0.41 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
130-2486 |
MOUNT This part replaces 53-9681. Price: $36.47 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532174894. Price: $17.99 |
| 10 |
74-5470-03 |
MOUNT-ENGINE, LH This part replaces 74-5470. Price: $44.48 |
| 11 |
33115-100 |
SCREW-HH This part replaces 48-7840. Price: $1.57 |
| 12 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 13 |
32128-37 |
NUT-HF Price: $3.63 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 14 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 16 |
33114-025 |
SCREW-HH This part replaces 57-6380. Price: $0.70 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 18 |
33114-016 |
SCREW-HH This part replaces 42-9230. Price: $0.27 |
| 19 |
33114-030 |
SCREW-HH Price: $0.50 |
| 20 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
76-4120-03 |
MOUNT-ENGINE, RH This part replaces 76-4120. Price: $79.57 |
| 22 |
48-7810 |
SCREW Price: $7.98 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
48-7570 |
SCREW-HH Price: $8.48 |
| 23 |
871110814 |
BOLT.HEX.BLACK Price: $8.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 24 |
84-0760-03 |
ADAPTER-PUMP This part replaces 84-0760. Price: $876.02 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 25 |
93-5398 |
SCREW-HH Price: $3.22 |
| 26 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 27 |
322-3 |
SCREW-HH Price: $0.79 |
| 28 |
74-3650 |
FAN Price: $269.64 |
| 29 |
114-3988 |
FAN DRIVE ASM This part replaces 74-5520. Price: $342.27 |
| 30 |
76-4220-03 |
MOUNT-ENGINE, LH This part replaces 76-4220. Price: $127.64 |
| 31 |
53-9682 |
MOUNT-ENGINE Price: $108.69 |
| 32 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 33 |
84-1440 |
DISCONTINUED Price: Call Us |
| 34 |
33113-012 |
SCREW-HH This part replaces 48-7610. Price: $0.71 |
| 35 |
77-3600 |
SHIELD-ADAPTER Price: $24.35 |
| 36 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 37 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 38 |
76-4310-03 |
SUPPORT-BASE, BATTERY This part replaces 76-4310. Price: $22.33 |
| 39 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 40 |
14-0949 |
BATTERY BASE WA *B Price: $97.58 |
| 41 |
323-4 |
SCREW-HH Price: $1.02 |
| 42 |
100-3794 |
DISCONTINUED This part replaces 93-4233. Price: Call Us |
| 43 |
94-5615 |
BRACKET-HOSE, RETURN Price: $58.90 |
| 44 |
53-9682 |
MOUNT-ENGINE Price: $108.69 |
| 45 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 46 |
93-7276 |
DECAL-DANGER Price: $15.13 |
