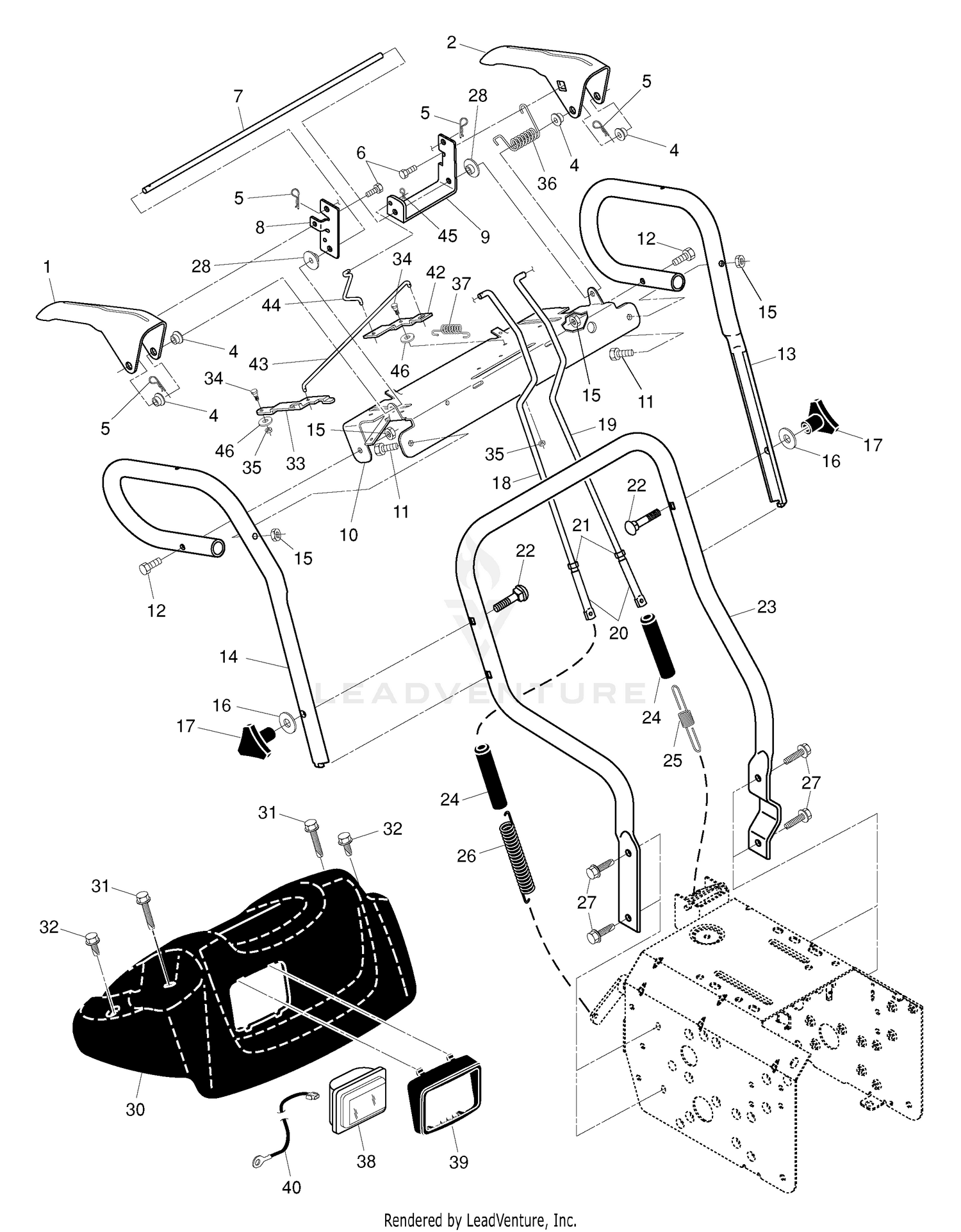

| Ref | Part Number | Description |
|---|
| 1 |
32144-5 |
SCREW Price: $0.97 |
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532407649. Price: $22.99 |
| 2 |
532405783 |
LEVER-TRACTION DRIVE CONTROL This part replaces 532407648. Price: $11.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
817060408 |
SCREW Price: $4.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 8 |
532429098 |
ARM.IMPELLER.ROD.SNOW This part replaces 532199576. Price: $3.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
532196334 |
ARM.TRACTION.ROD.YZ. This part replaces 532199575. Price: $3.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
532196619 |
PANEL.CONTROL This part replaces 532199531. Price: $19.99 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
874780528 |
SCREW Price: $4.99 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
532436114 |
TUBE.HANDLE.LOOP.LH.BLACK This part replaces 532184107. Price: $54.99 |
| 14 |
532407857 |
TUBE.HANDLE.LOOP.RH.BLACK This part replaces 532184108. Price: $39.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 18 |
532184594 |
ROD.AUGER.CONTROL Price: $54.99 |
| 19 |
3210-8 |
SCREW-HH Price: $1.02 |
| 19 |
532193081 |
ROD.CABLE.TRACTION.LONG Price: $11.99 |
| 20 |
532180428 |
ROD, END CONTROL Price: $8.99 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3600 |
SHIM-BEARING, FRONT (.151) Price: $23.68 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 26 |
93-3619 |
UPPER HOUSING ASM Price: $1,825.32 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 27 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 28 |
532198559 |
BUSHING, IDLER PIVOT Price: $2.99 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 30 |
532182906 |
PANEL.CONSOLE.SNOW Price: $39.99 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 33 |
532196335 |
LATCH.INTERLOCK.YELLOW This part replaces 532199577. Price: $11.99 |
| 34 |
532199640 |
SCREW HEX This part replaces 532180402. Price: $3.99 |
| 34 |
75-0721 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 35 |
873850400 |
This part replaces 532068038. Price: $2.51 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
532193885 |
SPRING LATCH Price: $3.99 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 38 |
532183784 |
BULB.HEADLIGHT.FLOOD.1156-12V Price: $27.99 |
| 39 |
532178668 |
BEZEL.HEADLIGHT.BLACK Price: $5.99 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 40 |
532178770 |
HARNESS, HEADLIGHT (FLOOD) Price: $8.99 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 42 |
532196336 |
LEVER.INTERLOCK This part replaces 532199578. Price: $2.99 |
| 43 |
532199638 |
ROD.LATCH.INTERLOCK Price: $7.99 |
| 44 |
532196338 |
ROD.ASM INTERLOCK Price: $5.99 |
| 45 |
532700279 |
RETAINER CLIP Price: $2.99 |
