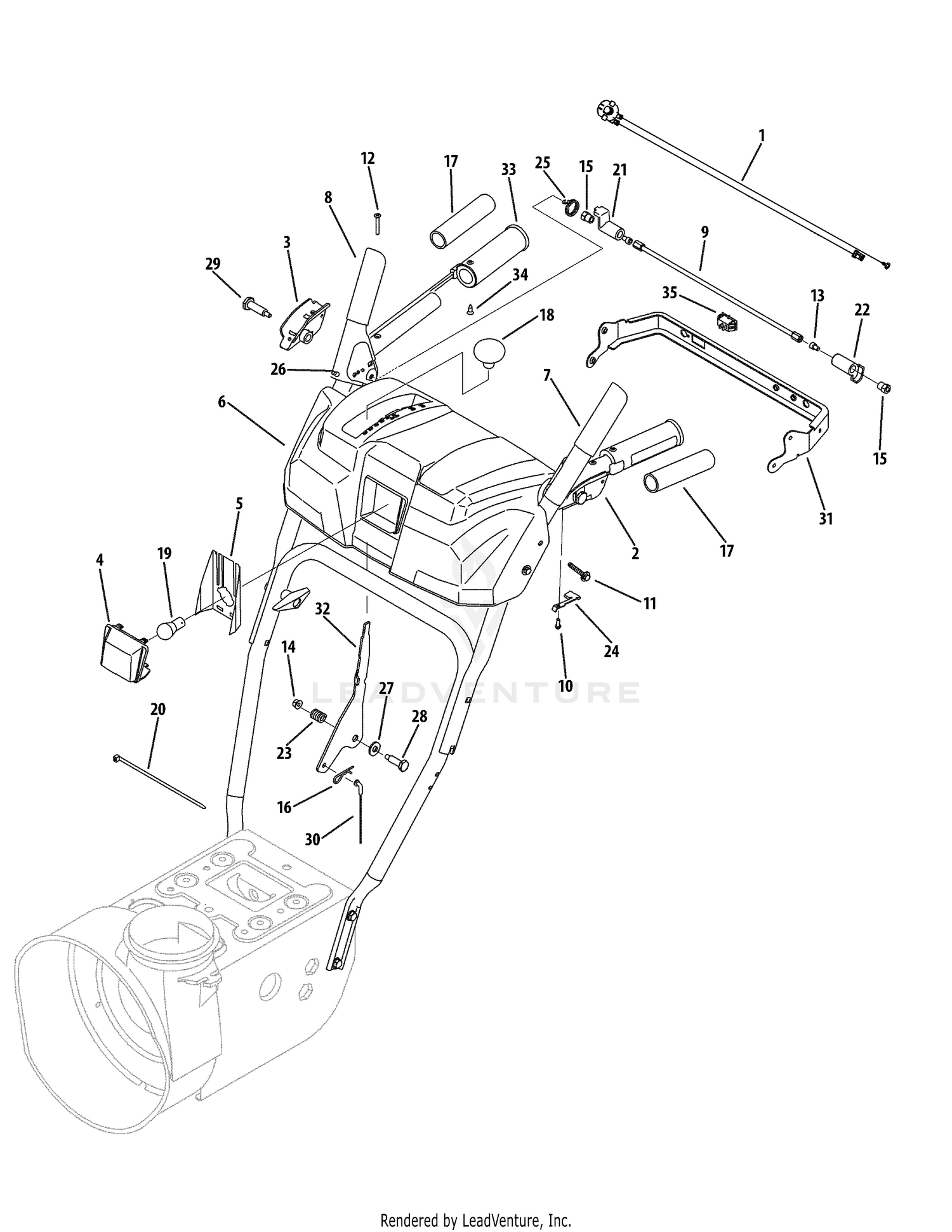

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Wire Harness |
| 2 |
631-04133A |
Clutch Lock Handle Assembly, LH Price: $13.42 |
| 3 |
631-04134B |
Clutch Lock Handle Assembly, RH Price: $13.42 |
| 4 |
731-05319 |
Lens Price: $12.25 |
| 5 |
777X41805 |
Lens Label Price: $8.16 |
| 6 |
731P05334C |
HANDLE PANEL (TROY-BILT) This part replaces 731-05334. Price: $63.24 |
| 7 |
684-04105D |
HANDLE ASSEMBLY (LH) This part replaces 684-04105B. Price: $20.10 |
| 8 |
684-04106D |
HANDLE ASSEMBLY (RH) This part replaces 684-04106B. Price: $19.00 |
| 9 |
684-04250 |
Clutch Pivot Lock Rod Assembly Price: $11.00 |
| 10 |
710-04326 |
Plastic Screw, #8-16 x .50 Price: $3.37 |
| 11 |
710-04586 |
Hex Washer Screw, 1/4-20 x 1.625 Price: $6.07 |
| 12 |
710-1233 |
Screw, #10-24 x 1.375 Price: $3.95 |
| 13 |
710-3069 |
Socket Screw, 1/4-20 x .50 Price: $4.08 |
| 14 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 15 |
712-04081A |
Hex Nut, 1/4-20 Price: $6.49 |
| 16 |
714-0145 |
Click Pin, .092 x 1.64 Price: $4.42 |
| 17 |
720-0274 |
Grip, 1.0 x 5.0 Price: $9.99 |
| 18 |
720-04039 |
Shift Knob Price: $9.09 |
| 19 |
925-1629 |
Lamp This part replaces 725-1629. Price: $9.70 |
| 20 |
926-0154 |
Cable Tie, Push Mount This part replaces 726-0154. Price: $5.50 |
| 21 |
731-04894D |
Plate Lock Price: $4.61 |
| 22 |
731-04896C |
CLUTCH LOCK CAM This part replaces 731-04896B. Price: $3.56 |
| 23 |
732-0193 |
Compression Spring .39 x .60 x .88 Price: $4.11 |
| 24 |
732-04219C |
Clutch Lock Spring Price: $3.70 |
| 25 |
732-04238B |
Torsion Spring, 0.8156 x .3038 This part replaces 732-04238. Price: $4.66 |
| 26 |
735-0199A |
Rubber Bumper, .62 OD x .22 Price: $6.89 |
| 27 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 28 |
738-04125 |
Shoulder Screw, .374 x 1.05 Price: $4.08 |
| 29 |
738-04348 |
Shlder. Screw, .437 x 1.345 x 1/4-20 Price: $3.14 |
| 30 |
946-04396A |
Speed Selector Cable This part replaces 746-04396. Price: $18.04 |
| 31 |
790-00248E-0637 |
HANDLE SUPPORT BRACKET This part replaces 790-00248B. Price: $21.49 |
| 32 |
790-00311C-0637 |
Shift Lever This part replaces 790-00311. Price: $24.22 |
| 33 |
725-1757 |
Heated Grip Price: $97.54 |
| 34 |
710-0837 |
Screw, #10-16 x .625 Price: $3.85 |
