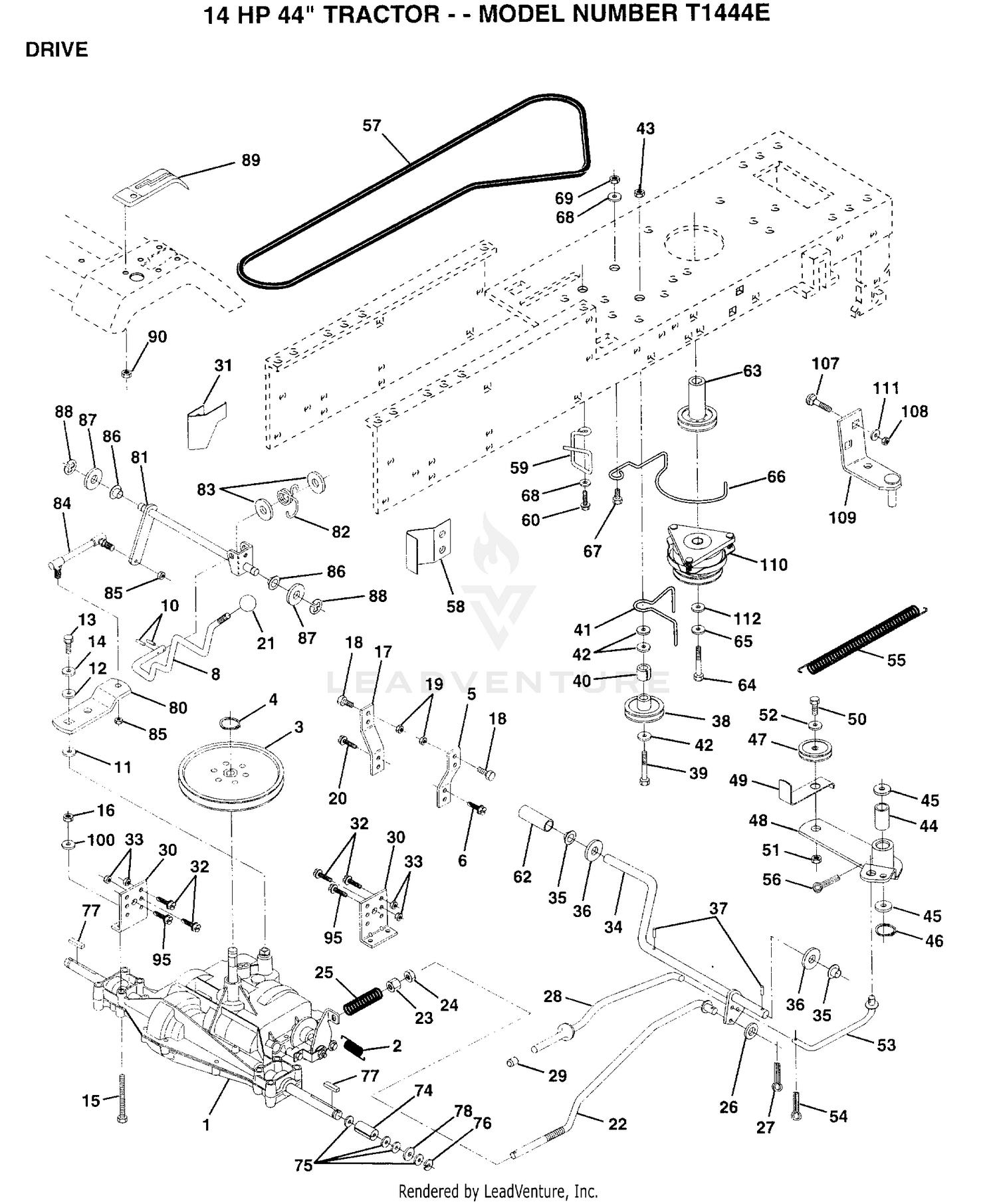

DRIVE

DRIVE

Parts (98)

RefPart NumberDescription
1 142607 SUB= 145605 Price: Call Us
2 110422X SUB= 146682 Price: Call Us
3 123666X PULLEY TRANS Price: Call Us
4 12000028 SUB= 2267J Price: Call Us
5 121520X STRAP TORQUE Price: Call Us
6 17490512 SCREW Price: Call Us
8 141003 ROD SHIFT FEND LT Price: Call Us
10 105-3735 CONTROL PLATE ASM Price: $167.82
10 76020416 PIN COTTER 1/8 Price: Call Us
11 105701X WASH-SHFT PLT LT Price: Call Us
12 19151216 WASHER Price: Call Us
13 71040412 SUB= 74550412 Price: Call Us
14 10040400 LOCKWASHER Price: Call Us
15 74780544 BOLT HEX Price: Call Us
16 73680500 SUB= 73690500 Price: Call Us
17 121520X STRAP TORQUE Price: Call Us
18 74760616 BOLT Price: Call Us
20 98-9662 LEVER-CONTROL, SPEED Price: $72.44
21 106279X CONTROL KNOB LT Price: Call Us
22 130804 BRAKE ROD Price: Call Us
23 73800600 NUT Price: Call Us
24 73350600 NUT Price: Call Us
25 106888X SPRING ROD LT Price: Call Us
26 19131316 WASHER Price: Call Us
27 76020412 COTTER PIN Price: Call Us
28 133261 BRAKE PARK ROD Price: Call Us
29 7733J SUB= 71673 Price: Call Us
30 130807 TRANSAXLE MTG BKT Price: Call Us
30 98-9572 LEVER-CONTROL, SPEED Price: $47.15
32 74760512 BOLT Price: Call Us
33 73800500 NUT Price: Call Us
34 122424X SUB= 149001 Price: Call Us
35 120183X NYLON BEARING Price: Call Us
36 19211616 WASHER LT Price: Call Us
37 1572H SUB= 2882J Price: Call Us
38 123674X PULLEY.IDLER.FLAT Price: Call Us
39 74760644 BOLT Price: Call Us
40 105-3788 O-RING Price: $2.90
40 4470J SPACER T Price: Call Us
41 109070X BELT KEEPER LT Price: Call Us
42 19131312 WASHER Price: Call Us
43 73800600 NUT Price: Call Us
45 110812X WASHER LT Price: Call Us
46 12000039 KLIP RING Price: Call Us
47 127783 SUB= 139245 Price: Call Us
48 123789X ARM IDLER Price: Call Us
49 123205X RETAIN BELT Price: Call Us
50 74760624 SUB= 74930624 Price: Call Us
50 98-7602 PIN-SPRING Price: $0.64
51 73680600 SUB= 73690600 Price: Call Us
52 19131316 WASHER Price: Call Us
54 76020412 COTTER PIN Price: Call Us
56 76020412 COTTER PIN Price: Call Us
57 130801 SUB= 138255 Price: Call Us
59 140312 KEEPER BELT CNTSP Price: Call Us
60 98-9594 WASHER-PLAIN Price: $2.49
62 8883R PEDAL COVER T Price: Call Us
63 140189 PULLEY CLU ELEC Price: Call Us
64 71170768 SUB= 150280 Price: Call Us
65 10040700 LOCKWASHER Price: Call Us
66 131218 KEEPER, BELT ENGINE Price: Call Us
67 74760616 BOLT Price: Call Us
68 19131312 WASHER Price: Call Us
69 73680500 SUB= 73690500 Price: Call Us
70 98-9589 NUT Price: $1.46
74 109502X SPACER LT Price: Call Us
75 121749X WASHER Price: Call Us
76 12000001 E-RING LT Price: Call Us
77 123583X SQUARE KEY Price: Call Us
78 121748X WASHER Price: Call Us
80 131487 ARM SHIFT TRANS Price: Call Us
80 98-9658 GOVERNOR LEVER ASM Price: $34.84
81 136933 SHAFT ASM.SHIFT Price: Call Us
83 19171216 WASHER Price: Call Us
84 132183 TIE ROD Price: Call Us
85 73530400 NUT 1/4-28 Price: Call Us
86 71208 BUSHING Price: Call Us
87 19212016 WASHER D Price: Call Us
88 12000008 KLIP RING Price: Call Us
89 139964 SUB= 918139964 Price: Call Us
90 124346X NUT Price: Call Us
90 98-9663 LEVER-STOP, ENGINE Price: $13.34
95 17490612 SCREW Price: Call Us
100 19111216 WASHER M Price: Call Us
100 98-7601 SEAL-OIL Price: $7.88
107 72140506 BOLT Price: Call Us
108 73680500 SUB= 73690500 Price: Call Us
109 137141 BRACKET.ASM.MTG Price: Call Us
110 137140 SUB= 142600 Price: Call Us
110 98-9472 SPRING-RETURN Price: $8.91
111 19111012 WASHER T Price: Call Us
120 98-9664 SHAFT-LEVER, STOP Price: $33.92
130 98-9637 GASKET Price: $3.98
140 98-7692 BOLT Price: $0.92
150 99-8348 BOLT Price: $0.24
160 98-7654 GASKET Price: $8.84
170 105-3710 STUD Price: $1.16
180 98-7572 NUT Price: $0.32
