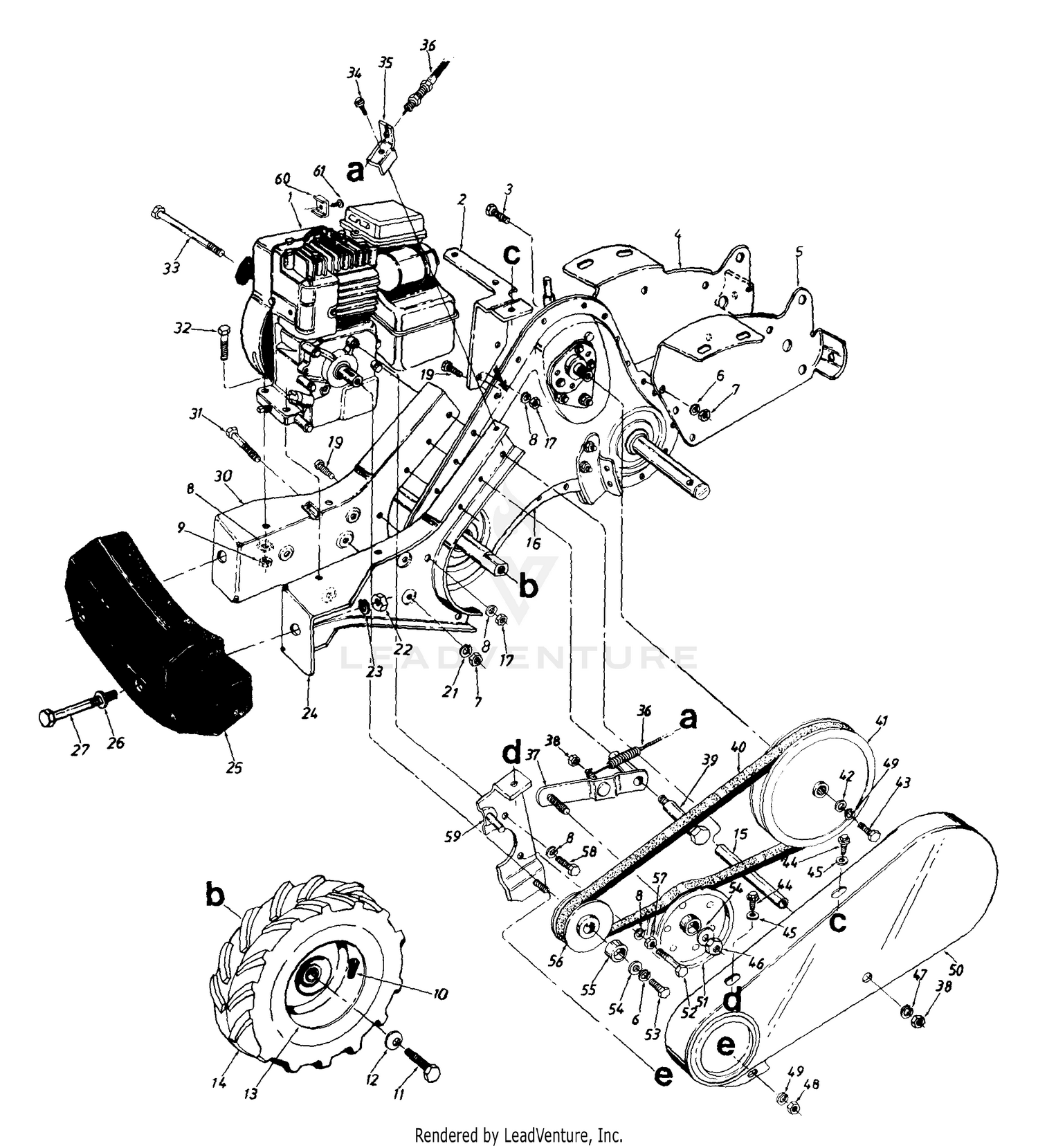

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Engine |
| 2 |
784-0199A |
BELT COVER MOUNTING BRKT Not Available Price: |
| 4 |
784-0178 |
MOUNTING BRACKET(RH) Not Available Price: |
| 5 |
784-0177 |
MOUNTING BRACKET(LH) Not Available Price: |
| 10 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 12 |
736-0242 |
Bell-Wash..345" I.D. x .88" Price: $3.75 |
| 13 |
734-1376 |
Wheel Rim Ass'y. Only Price: Call Us |
| 14 |
734-1377 |
WHEEL ASSEMBLY W/TIRE (LH) Not Available Price: |
| 15 |
750-0688 |
SPACER Not Available Price: |
| 16 |
784-0150 |
GEAR CASE Not Available Price: |
| 21 |
736-0217 |
L-Wash. 3/8" I.D.- H.D. Price: $3.86 |
| 23 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 24 |
784-0155 |
ENGINE MOUNTING RAIL (RH) Not Available Price: |
| 25 |
723P0381 |
COUNTERWEIGHT This part replaces 723-0381. Price: $123.63 |
| 26 |
736-0326 |
Fl-Wash. .510" I.D. x 1.0" Price: $3.89 |
| 30 |
784-0154 |
RAIL-ENGIN Not Available Price: |
| 33 |
710-0974 |
Hex Bolt 5/16-18 x 4.75" Lg.- Gr. 2 Price: $10.48 |
| 34 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 35 |
784-0203 |
BRACKET Not Available Price: |
| 36 |
946-0612 |
Clutch Control Cable 53" Lg. This part replaces 746-0612. Price: $62.93 |
| 37 |
784-0175 |
BRACKET ASSY-IDLER Not Available Price: |
| 38 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 39 |
738-0681 |
SHOULDER SCREW Not Available Price: |
| 40 |
954-0325 |
V-BELT 1/2 x 57.0 Not Available This part replaces 754-0325. Price: |
| 41 |
756-0472 |
V-PULLEY Not Available Price: |
| 42 |
736-0176 |
Fl-Wash. 1/4" I.D. x .93" O.D. Price: $3.95 |
| 43 |
710-0412 |
Hex Bolt 1/4-28 x .75" Lg. Price: $4.95 |
| 44 |
710-0599 |
Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86 |
| 45 |
736-0463 |
Fl-Wash. .281" I.D. x .625" Price: $3.91 |
| 46 |
712-0262 |
Hex Cent. L-Nut 3/8-24 Thd. Price: $3.90 |
| 47 |
936-0123 |
WASHER-FL NLAUD Not Available This part replaces 736-0123. Price: |
| 50 |
784-0158B |
BELT COVER This part replaces 784-0158. Price: $67.55 |
| 51 |
756-0405 |
Fl-Idler w/Flanges 3.75" O.D. Price: $66.84 |
| 54 |
736-0258 |
Fl-Wash. 3/8" I.D. x 1.00" Price: $3.93 |
| 55 |
750-0345 |
SPACER Not Available Price: |
| 56 |
748-0282 |
HALF PULLEY-ENGINE Not Available Price: |
| 59 |
784-0197 |
BELT KEEPER ASS'Y. Not Available Price: |
| 60 |
751B221535 |
Casing Clamp This part replaces 751-0360A. Price: $8.93 |
