| Ref | Part Number | Description |
|---|
| 1 |
94-4031 |
SHAFT-AXLE Price: $1,779.41 |
| 2 |
94-4030 |
WHEEL BEARING ASM Price: $208.67 |
| 3 |
94-4036 |
SCREW Price: $41.13 |
| 4 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 5 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 6 |
95-2617 |
BRACKET-BRAKE MOUNTING This part replaces 94-4038. Price: $727.85 |
| 7 |
94-4033 |
HOUSING - AXLE, IHT Price: $1,671.35 |
| 8 |
33106-035 |
SCREW-HHF This part replaces 94-4007. Price: $8.35 |
| 9 |
94-4015 |
GASKET-HOUSING, AXLE Price: $36.13 |
| 10 |
99-5777 |
GEAR HOUSING ASM This part replaces 94-3920. Price: $8,298.17 |
| 11 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 12 |
94-3913 |
SHAFT-FRONT, PTO Price: $689.95 |
| 13 |
94-4052 |
DISCONTINUED Price: Call Us |
| 14 |
93-5966 |
BEARING KIT This part replaces 94-3964. Price: $157.64 |
| 15 |
94-4003 |
DISCONTINUED Price: Call Us |
| 16 |
99-5777 |
GEAR HOUSING ASM This part replaces 94-3972. Price: $8,298.17 |
| 17 |
99-5780 |
DIFFERENTIAL ASM W/RING & PINION This part replaces 94-3970. Price: $10,483.15 |
| 18 |
99-5777 |
GEAR HOUSING ASM This part replaces 94-3938. Price: $8,298.17 |
| 19 |
100-1356 |
SCREW-HF This part replaces 94-4002. Price: $11.92 |
| 20 |
94-4143 |
STUD-WHEEL Price: $4.07 |
| 21 |
94-4035 |
SHAFT-AXLE Price: $2,556.48 |
| 22 |
94-4144 |
COLLAR-BEARING Price: $159.58 |
| 23 |
94-4142 |
RING-RETAINING Price: $6.16 |
| 24 |
94-4032 |
SEAL-LIP Price: $43.91 |
| 25 |
94-3975 |
PIN Price: $5.80 |
| 26 |
94-3971 |
BEARING-BALL Price: $122.44 |
| 27 |
94-3959 |
GASKET-HOUSING Price: $70.76 |
| 28 |
94-3997 |
RING-RETAINING Price: $7.62 |
| 29 |
94-3961 |
DISCONTINUED Price: Call Us |
| 30 |
94-9178 |
BEARING-HEAD, PINION This part replaces 94-3907. Price: $334.68 |
| 31 |
94-3912 |
GEAR-DRIVE, FINAL Price: $703.98 |
| 32 |
94-3958 |
SPACER-PINION Price: $84.81 |
| 33 |
75-0520 |
BEARING-BALL Price: $88.98 |
| 34 |
94-4024 |
WASHER -.812 X 1.5 X .134 Price: $3.23 |
| 35 |
94-4025 |
DISCONTINUED Price: Call Us |
| 36 |
98-1812 |
SCREW This part replaces 94-4014. Price: $8.78 |
| 37 |
94-3953 |
NUT-HEX Price: $27.51 |
| 38 |
94-3914 |
SHAFT-DRIVE, PTO Price: $899.83 |

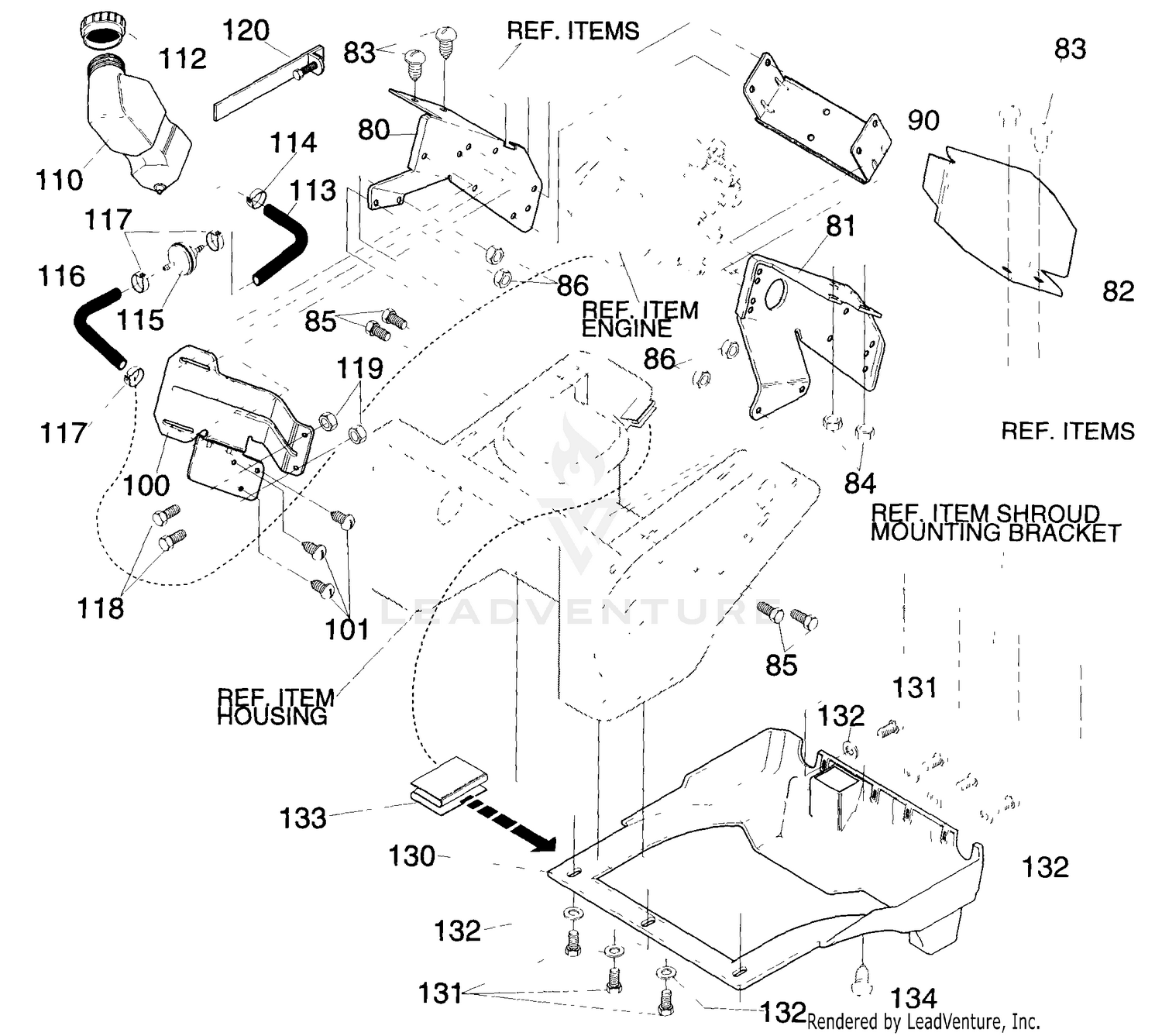

| 80 |
601001767 |
PLATE, REAR MT RH Price: $26.99 |
| 81 |
601400023 |
PLATE, REAR This part replaces 601001768. Price: $40.99 |
| 82 |
601001769 |
SHIELD, ENGINE HEAT Price: $24.53 |
| 83 |
601001770 |
SCREW, 1/4-20X.63 Price: $1.99 |
| 84 |
601000827 |
NUT 1/4-20 Price: $3.99 |
| 85 |
601001640 |
SCREW 5/16-18X.50 Price: $3.99 |
| 86 |
601000059 |
NUT, 5/16-18 REGHEXCTRLK Price: $5.99 |
| 90 |
601001771 |
SUPPORT, FRAME Price: $29.99 |
| 100 |
601001772 |
BRACKET, GAS TANK 2 CY Price: $9.99 |
| 101 |
601001792 |
SCREW, #10-24 X .63 This part replaces 601001773. Price: $2.71 |
| 110 |
601001774 |
TANK, FUEL, 1.62 QT. Price: $149.99 |
| 112 |
601001775 |
CAP, FUEL, W/2654 SEAL Price: $25.99 |
| 113 |
601001776 |
TUBING, GAS LINE 8 IN. Price: $6.28 |
| 114 |
601000554 |
CLAMP, HOSE Price: $7.09 |
| 115 |
601001777 |
FILTER, IN-LINE Price: $7.77 |
| 116 |
601001778 |
TUBING, GAS LINE 3 IN. Price: $4.81 |
| 117 |
601001779 |
CLAMP, HOSE Price: $3.13 |
| 118 |
601001366 |
SCREW Price: $2.53 |
| 119 |
601001367 |
NUT Price: $3.99 |
| 120 |
601001780 |
CLAMP, WORM DR Price: $6.99 |
| 130 |
601001781 |
SHROUD, BOTTOM Price: $30.99 |
| 131 |
601001792 |
SCREW, #10-24 X .63 This part replaces 601001782. Price: $2.71 |
| 132 |
601001703 |
WASHER Price: $3.99 |
| 133 |
601001783 |
CLIP, "S" TINNERMAN Price: $2.99 |
