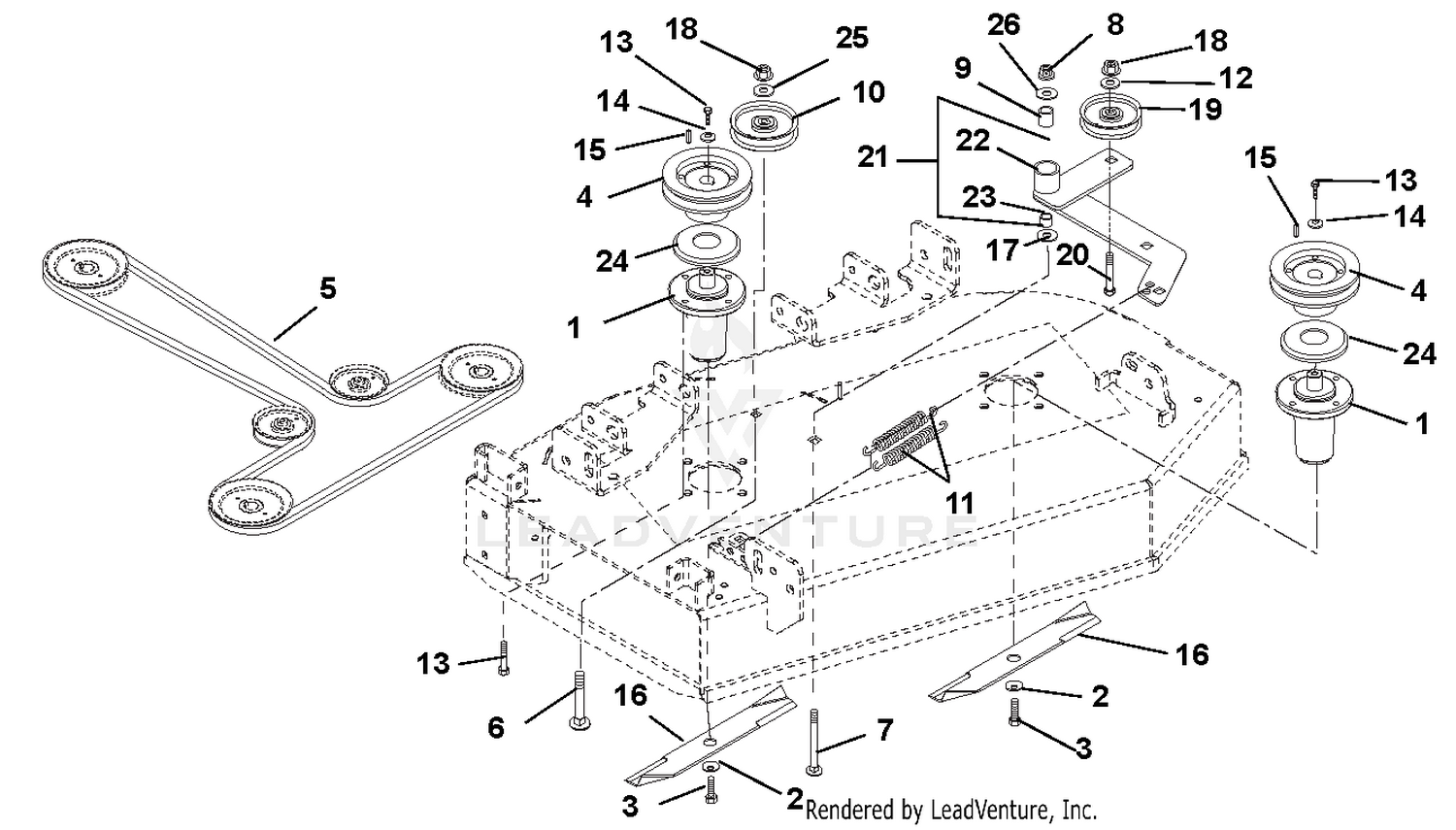

| Ref | Part Number | Description |
|---|
| 1 |
69221200 |
ASSEMBLY, SPINDLE-SHORT G3500 Price: Call Us |
| 2 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 3 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 5 |
07200011 |
V-BELT, HB-WRAPPED Price: $87.95 |
| 6 |
06200418 |
BLT, RHSN .38-16X3.00 G5 ZCC This part replaces 06228100. Price: $3.95 |
| 7 |
06200340 |
BLT, RHSSN .50-13X3.50 G5 ZCC This part replaces 06200003. Price: $5.45 |
| 8 |
06500810 |
NUT,NYL-FLG .50-13 GF ZCC This part replaces 06500010. Price: $1.45 |
| 9 |
01581700 |
BSHG, SPCR .502X.997X2.03 PM Price: $5.95 |
| 11 |
08300513 |
SPRING, EXTENSION 1.0 X 6.65 Price: $30.95 |
| 12 |
06401139 |
WSHR- FLT .375X1.125X.065 ZCC This part replaces 06425500. Price: $2.45 |
| 13 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 14 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 06400006. Price: $3.95 |
| 15 |
06611200 |
KEY, SQ .25X.25X1.00 RC 40-50 Price: $2.95 |
| 16 |
08866800 |
BLD,MULCHING 50" MWR Price: $28.95 |
| 17 |
06401012 |
WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45 |
| 18 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 20 |
06200314 |
BLT, RHSN .38-16X2.00 G5 ZCC This part replaces 06224300. Price: $3.45 |
| 22 |
09296751 |
WMT, IDLER PIVOT ARM Price: $111.95 |
| 23 |
05501234 |
BSHG, 1.00X1.125X1.937 This part replaces 05500123. Price: $9.95 |
| 24 |
09238200 |
SLINGER, DUST Price: $15.45 |
| 25 |
00440700 |
SEAL, IDLER BEARING Price: $61.45 |
