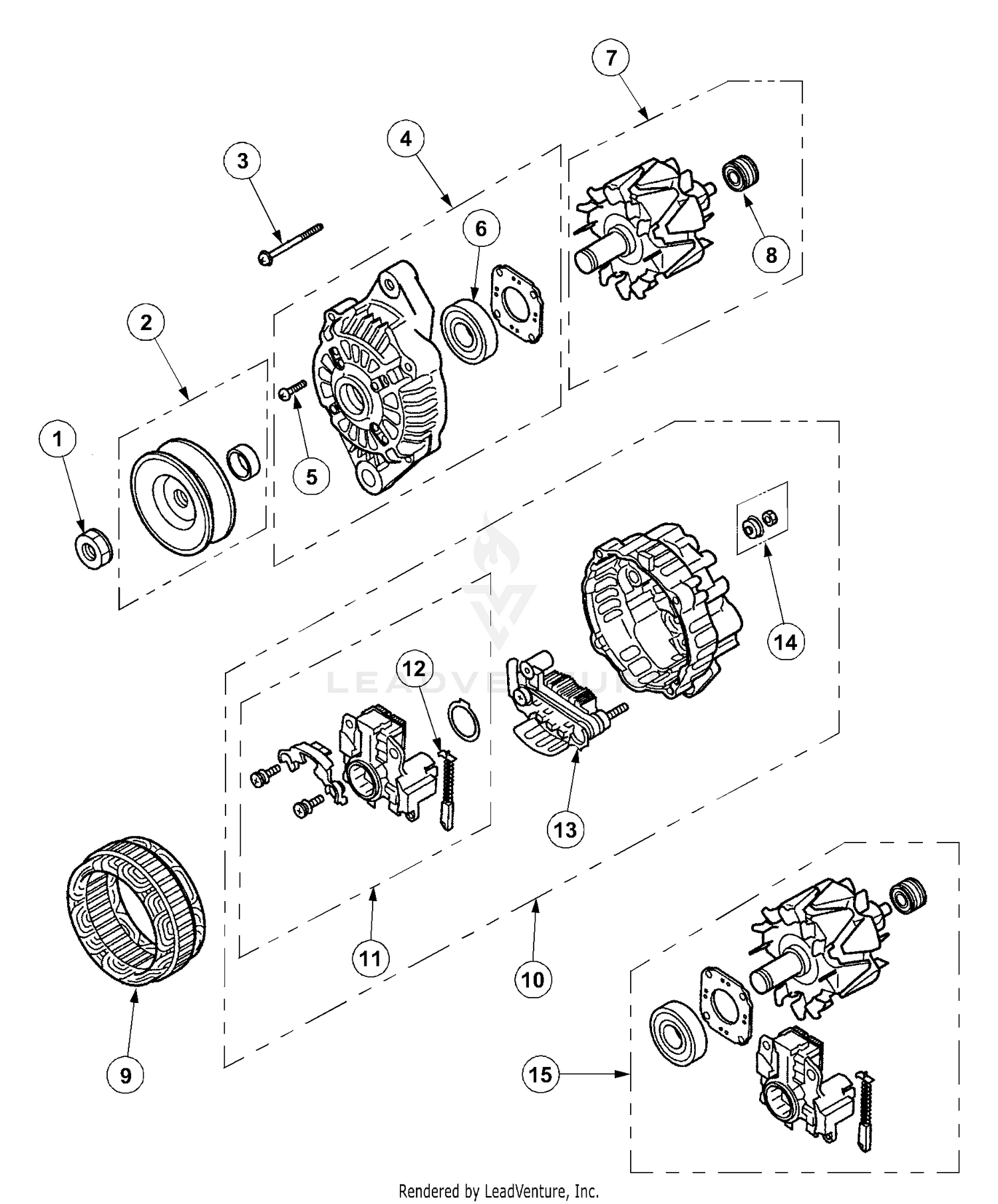

| Ref | Part Number | Description |
|---|
| 1 |
MA-A981X-20771 |
Nut Set Price: Call Us |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 2 |
93-7977 |
SEAL Price: $74.14 |
| 2 |
MA-A628T-62170 |
Pulley Ass'y Price: Call Us |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
93-7978 |
ROD-PULL Price: $171.95 |
| 3 |
MA-A414X19271 |
BOLT SET-ALTERNATO Not Available Price: |
| 4 |
93-7983 |
PIN-CLEVIS Price: $3.19 |
| 4 |
MA-A640X67070 |
HOUSING ASSEMBLY-ALTERNATOR Not Available Price: |
| 5 |
93-7980 |
LINK Price: $13.85 |
| 5 |
MA-A414X21271 |
SCREW-SET Not Available Price: |
| 6 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 6 |
93-7979 |
PIN-HITCH Price: $1.70 |
| 6 |
MA-A930X-94570 |
Bearing,Front Price: Call Us |
| 7 |
532140507 |
HUB ASMBLY Price: $149.99 |
| 7 |
93-7986 |
DISC-STATIONARY Price: $26.25 |
| 7 |
MA-A880X-83770 |
Rotor Ass'y Price: Call Us |
| 8 |
93-7981 |
DISC-ROTATING Price: $177.64 |
| 8 |
MA-S930P63670 |
BEARING-REAR ALTER Not Available Price: |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 9 |
93-7976 |
RING-RETAINING Price: $12.48 |
| 9 |
MA-A383X56570 |
ALTERNATOR STATOR Not Available Price: |
| 10 |
93-7984 |
GASKET Price: $20.21 |
| 10 |
MA-A642XA9970 |
HOUSING ASSEMBLY-ALTERNATOR Not Available Price: |
| 11 |
93-7982 |
ACTUATOR Price: $187.96 |
| 11 |
MA-A866X-44682 |
Regulator Set Price: Call Us |
| 12 |
93-7987 |
SPRING-EXTENSION Price: $9.47 |
| 12 |
MA-A647X50170 |
BRUSH ASSEMBLY-ALTERNAT Not Available Price: |
| 13 |
MA-A860T-40670 |
Rectifier Ass'y Price: Call Us |
| 14 |
MA-A529X-07871 |
Nut Set Price: Call Us |
| 20 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 22 |
532180235 |
LOWER SHIFT LEVER ASM Price: $27.99 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 29 |
532176600 |
BRAKE, ROD Price: $14.99 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 35 |
532137648 |
PARKING BRAKE ROD Price: $9.99 |
| 36 |
532149412 |
SPRING DRIVE GROUND Price: $4.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 38 |
532150035 |
NYLINER Price: $3.99 |
| 39 |
874321016 |
Screw, Fin. #10-24 x 1 Price: $2.99 |
| 40 |
532178575 |
ACTUATOR INTERLOCK SWITCH Price: $3.99 |
| 41 |
873931000 |
Nut Centerlock 10-24 unc Price: $4.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 46 |
532145170 |
RETAINER SPRING Price: $3.99 |
| 48 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 52 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 55 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 56 |
532161597 |
BELT, V GROUND DRIVE Price: $39.99 |
| 58 |
874760724 |
BOLT.HEX.7/16-14.FINISHED Price: $3.99 |
| 61 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 64 |
532176601 |
SHAFT.ASM.PEDAL.BRAKE Price: $37.99 |
| 65 |
532179613 |
BOLT.SHLDR.3/8-16 Price: $4.99 |
| 68 |
532005142 |
ROLL PIN STD Price: $3.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532181788 |
CONSOLE AUTOMATIC YT.GT Price: $8.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 77 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 89 |
873680700 |
Nut Crownlock 7/16-14 unc Price: $2.99 |
| 94 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 98 |
532141004 |
SHIFT BRACKET Price: $3.99 |
| 106 |
532142918 |
O-RING KIT 70110 Price: $22.99 |
| 107 |
532154739 |
LINE.VENT.HYDRO-GEAR Price: $4.99 |
| 108 |
532142578 |
VENT CAP 70109 This part replaces 532142917. Price: $37.99 |
| 111 |
532156240 |
SPACER SHIFT LEVER VGTH Price: $2.99 |
| 112 |
532178558 |
WASHER NYLON HIGH TEMP Price: $4.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 117 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 120 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 123 |
532183254 |
ROD SHIFT Price: $24.99 |
| 124 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 125 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 126 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 127 |
532177362 |
LINK CONTROL CLUTCH Price: $7.99 |
| 128 |
532176624 |
SPRING DRIVE GRND Price: $4.99 |
| 129 |
532179473 |
BRACKET ARM IDLER TENSIONING Price: $22.99 |
| 130 |
819131016 |
WASHER Price: $2.99 |
| 131 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 132 |
532175467 |
BRACKET MTG HYDRO 3500 LH VGT Price: $3.99 |
| 133 |
532175468 |
BRACKET MTG HYDRO 3500 RH VGT Price: $4.99 |
| 135 |
532177364 |
LINK ASM CONTROL HYDRO 3500 Price: $48.99 |
| 137 |
532124949 |
LOCKNUT Price: $3.99 |
| 138 |
532001370 |
THRUST WASHER Price: $4.99 |
| 142 |
532175469 |
STRAP TORQUE HT-3500 Price: $32.99 |
| 143 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 146 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 147 |
532141322 |
WASHER Price: $3.99 |
| 151 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 152 |
532178705 |
BOLT HEX 5/16X1 W/PATCH Price: $2.99 |
