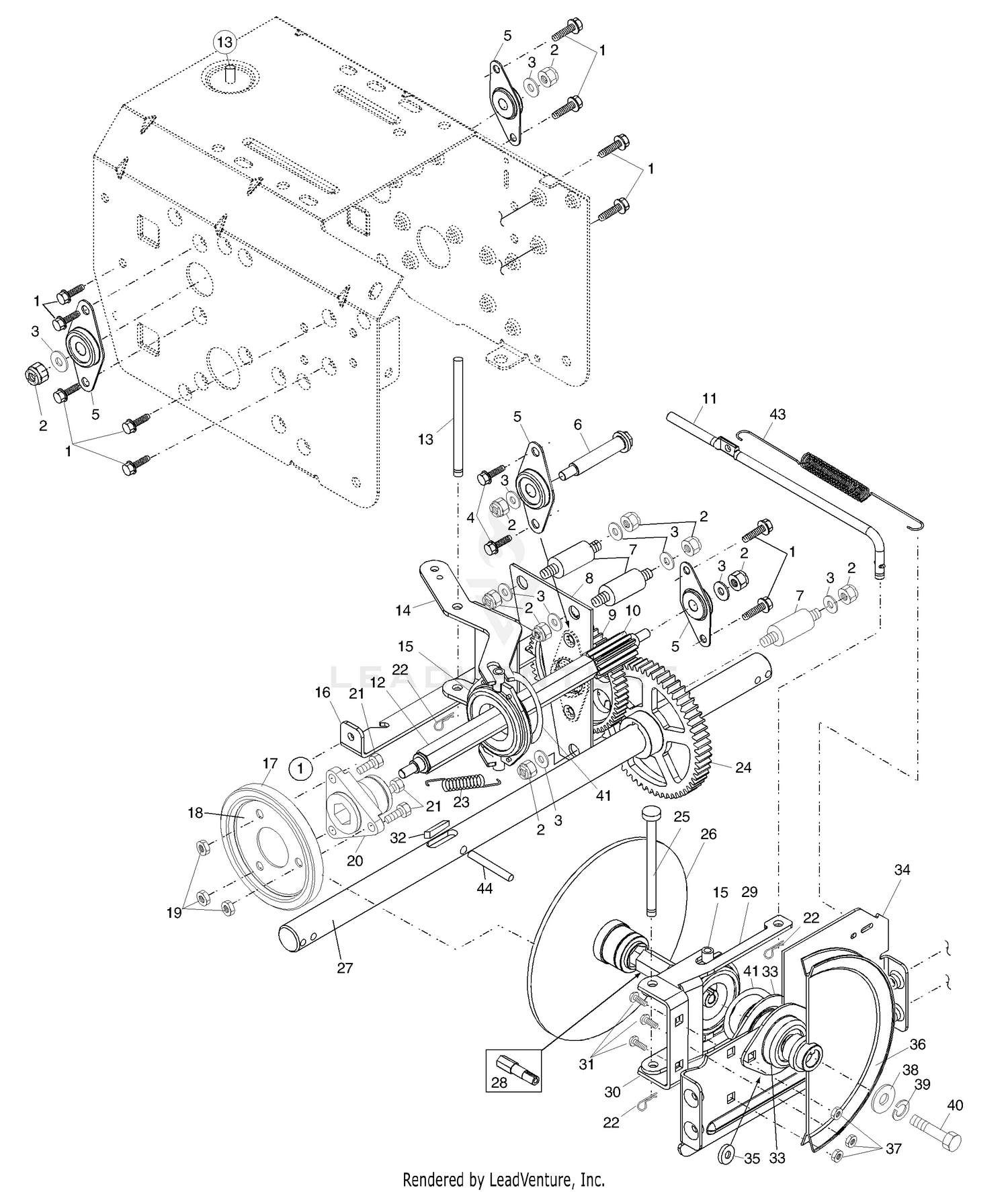

| Ref | Part Number | Description |
|---|
| 1 |
532146315 |
SCREW Price: $8.99 |
| 1 |
86-2740 |
HOSE ASSY Price: $201.47 |
| 2 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 2 |
86-2760 |
HOSE ASSY - RH TRACTION Price: $225.49 |
| 3 |
237-65 |
O-RING Price: $2.50 |
| 3 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 4 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 5 |
237-80 |
O-RING Price: $6.10 |
| 5 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 6 |
354-79 |
CAP-DUST Price: $7.81 |
| 6 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 7 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 7 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 8 |
237-78 |
O-RING Price: $3.85 |
| 8 |
532184079 |
PLATE AUXILIARY Price: $6.99 |
| 9 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180082. Price: $199.99 |
| 9 |
82-5320 |
TUBE - ASSY,CHARGE LINE Price: $85.25 |
| 10 |
532180065 |
GEAR, PINION Price: $12.99 |
| 10 |
82-5360 |
DISCONTINUED Price: Call Us |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
532178812 |
ROD, CLUTCH Price: $22.99 |
| 12 |
321-9 |
SCREW-HH Price: $0.27 |
| 12 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 13 |
32144-26 |
SCREW-FLOW, TAPTITE Price: $5.75 |
| 13 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 14 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 14 |
82-5340 |
PUMP BRACKET *B Price: $65.66 |
| 15 |
237-30 |
O-RING Price: $2.50 |
| 15 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 16 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532184081. Price: $5.99 |
| 16 |
84-0900 |
DISCONTINUED Price: Call Us |
| 17 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 17 |
82-5361 |
CLAMP -PIPE, SINGLE Price: $3.40 |
| 18 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532184078. Price: $7.99 |
| 18 |
82-5310 |
TUBE ASSY - TRACTION LH Price: $181.73 |
| 19 |
86-2750 |
DISCONTINUED Price: Call Us |
| 19 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 20 |
32128-37 |
NUT-HF Price: $3.63 |
| 20 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 21 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 21 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 22 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 22 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 23 |
324-6 |
SCREW-HH Price: $0.81 |
| 23 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 24 |
340-105 |
FITTING-ELBOW, 90 DEG Price: $39.67 |
| 24 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180081. Price: $199.99 |
| 25 |
237-22 |
O-RING Price: $2.43 |
| 25 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 26 |
532197763 |
DRIVE PLATE WELDMENT This part replaces 532175341. Price: $54.99 |
| 26 |
84-0890 |
HOSE ASM Price: $84.76 |
| 27 |
532178621 |
SHAFT.AXLE.16".POWER.STEER.SNO Price: $84.99 |
| 27 |
82-5110 |
DISCONTINUED Price: Call Us |
| 28 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 28 |
532197764 |
SHAFT.HEX.SHORT This part replaces 532175340. Price: $11.99 |
| 29 |
354-78 |
FITTING-STR Price: $49.33 |
| 29 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 30 |
237-146 |
O-RING Price: $3.75 |
| 30 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 31 |
237-79 |
O-RING Price: $5.46 |
| 31 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 32 |
532189282 |
KEY, SQUARE 1/4 X .875 This part replaces 532178879. Price: $4.99 |
| 32 |
82-5080 |
HOSE ASSY Price: $95.71 |
| 33 |
532188909 |
BEARING FLANGE This part replaces 532175323. Price: $24.99 |
| 33 |
74-5890 |
DISCONTINUED Price: Call Us |
| 34 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 34 |
84-0840 |
DISCONTINUED Price: Call Us |
| 35 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 35 |
84-0850 |
DISCONTINUED Price: Call Us |
| 36 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 36 |
532175348 |
PULLEY, TRACTION DRIVE Price: $21.99 |
| 37 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 38 |
532059289 |
STEEL WASHER Price: $3.99 |
| 38 |
82-5210 |
DISCONTINUED Price: Call Us |
| 39 |
56-7977 |
CLAMP-TUBE Price: $1.76 |
| 39 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 40 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 41 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 41 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 42 |
82-5330 |
DISCONTINUED Price: Call Us |
| 43 |
322-7 |
SCREW-HH Price: $0.89 |
| 43 |
532179095 |
SPRING.RETURN Price: $3.99 |
| 44 |
82-5350 |
HOSE ASSY - LH REEL Price: $149.56 |
| 45 |
56-7982 |
SLEEVE-PROTECTIVE Price: $12.28 |
