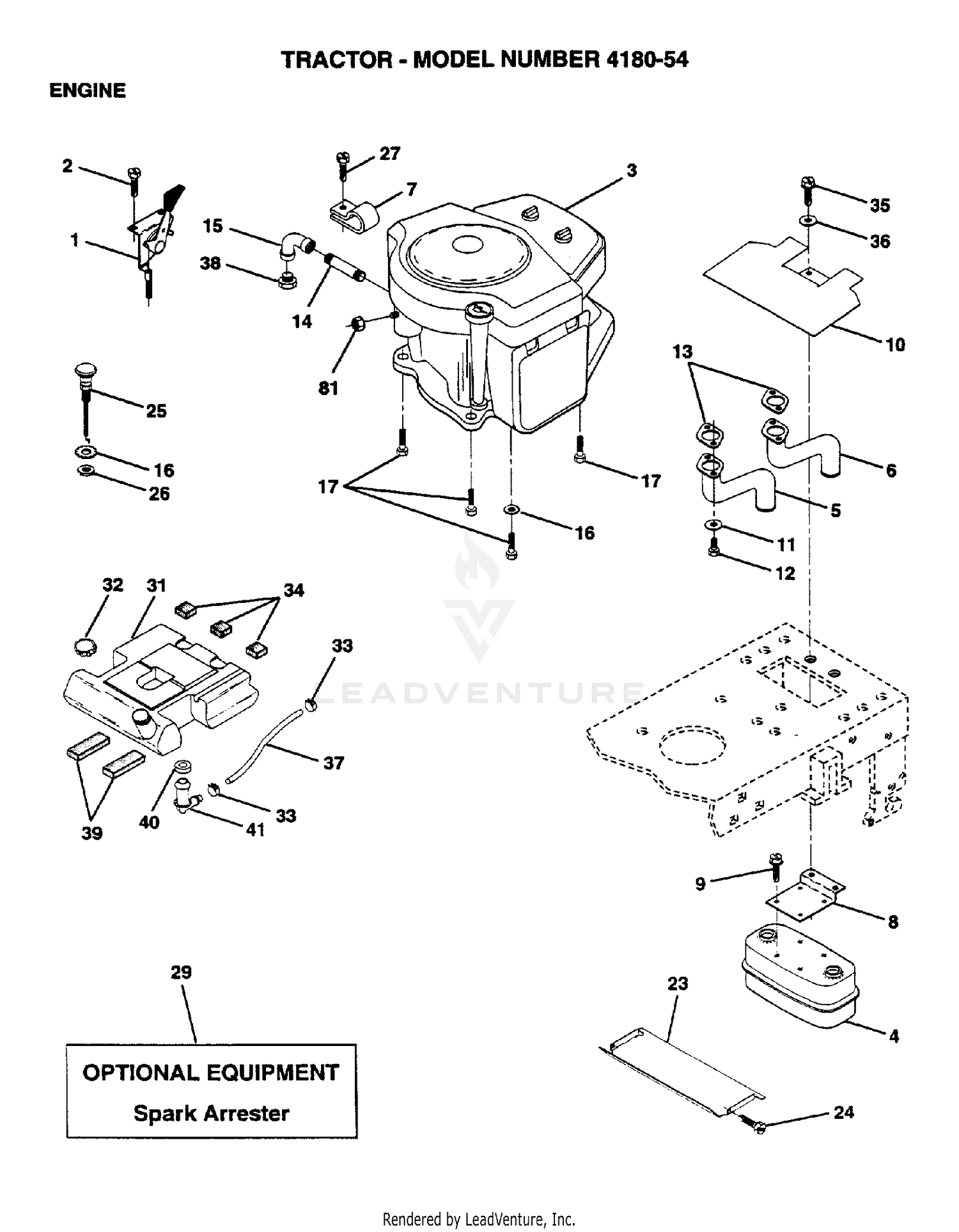

| Ref | Part Number | Description |
|---|
| 1 |
230020 |
Rotator Price: Call Us |
| 1 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532132747. Price: $22.99 |
| 2 |
235011 |
Retainer-Spring Price: Call Us |
| 2 |
817720410 |
Screw, Hex, Thread Cutting 1/4 - 20 x 5/8 TY23 (AYP part number) Price: $5.99 |
| 3 |
235168 |
Spring Price: Call Us |
| 3 |
TBD |
Price: Call Us |
| 4 |
235193 |
Pin-Camshaft Price: Call Us |
| 4 |
532122440 |
Price: $86.29 |
| 5 |
532144069 |
EXHAUST ASM. LEFT Price: $39.99 |
| 5 |
D-235327 |
Tappet Price: Call Us |
| 6 |
235582 |
Valve-Intake Price: Call Us |
| 6 |
532144068 |
EXHAUST ASM. RIGHT Price: $22.99 |
| 7 |
237672 |
Valve exhaust Price: Call Us |
| 7 |
532138129 |
CLAMP Price: $2.99 |
| 8 |
41_755_10 |
Kit-Retainer Price: Call Us |
| 8 |
532122439 |
Bracket Muffler Mounting (AYP part number) Price: $6.27 |
| 9 |
275066 |
Spacer Price: Call Us |
| 9 |
817190408 |
Screw, Hex Washer Hd. Thd. Cutting 1 4-20 x 1/2 (AYP part number) Price: $5.99 |
| 10 |
275067 |
Spacer Price: Call Us |
| 10 |
532145552 |
SHIELD HEAT LT Price: $4.99 |
| 11 |
47_010_09 |
Camshaft Assembly Price: Call Us |
| 11 |
810040400 |
LOCKWASHER Price: $3.99 |
| 12 |
874780412 |
Bolt, Hex Head, Fin. 1/4-20 x 3/4 Grade 5 (AYP part number) Price: $2.99 |
| 14 |
813280336 |
Pipe Nipple, Standard (AYP part number) This part replaces 813090336. Price: Call Us |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $11.99 |
| 16 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 18 |
532108105 |
Price: $8.66 |
| 19 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 20 |
532105838 |
RETAINER LT Price: $3.99 |
| 22 |
532123650 |
STUD 1/4 TURN Price: $3.99 |
| 23 |
532128953 |
Shield Heat Browning LT/YT (AYP part number) Price: $3.08 |
| 24 |
817021008 |
SCREW Price: $1.99 |
| 25 |
532138672 |
CONTROL.CHOKE.51.00.BLK.W/BEND Price: $19.99 |
| 26 |
873680600 |
LOCKNUT This part replaces 873610600. Price: $1.99 |
| 27 |
817541008 |
SCREW Price: $2.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 31 |
532106020 |
Tank, Fuel (AYP part number) Price: $55.00 |
| 32 |
532140527 |
Cap Asm Fuel W/sym Vented (AYP part number) Price: $6.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $2.99 |
| 35 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 36 |
819132012 |
WASHER This part replaces 532061537. Price: $2.99 |
| 37 |
532008543 |
FUEL LINE Price: $7.99 |
| 38 |
TBD |
Price: Call Us |
| 39 |
532109227 |
PAD IDLER TI Price: $2.99 |
| 40 |
532003645 |
BUSHING OUTLET T Price: $2.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $5.99 |
