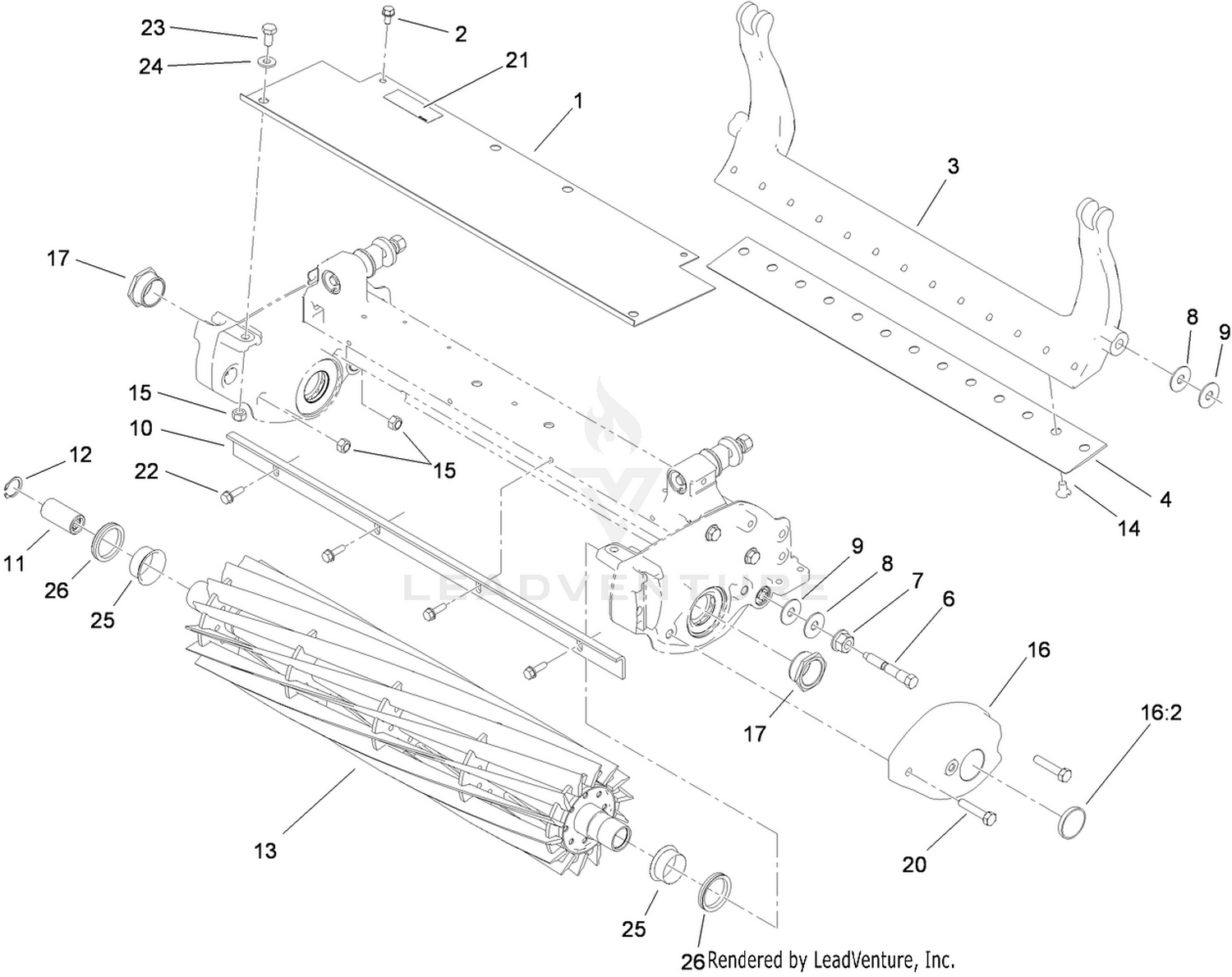

Bedbar and Reel Assembly

Bedbar and Reel Assembly

Parts (21)

RefPart NumberDescription
1 106-2600-01 SHIELD-GRASS Price: $26.92
2 104-2628 SCREW-HWH Price: $0.75
3 106-2648-01 BEDBAR Price: $367.64
6 119-4050 BEDBAR BOLT REPLACEMENT ASM This part replaces 65-6270. Price: $13.58
7 32128-48 NUT-LOCK, HHF Price: $1.03
8 52-2860 WASHER Price: $0.84
9 52-2900 WASHER-PLASTIC Price: $0.75
10 115-3303-03 BAR-CUTOFF This part replaces 106-6924-03. Price: $11.49
11 94-4507 COUPLER-SPLINED Price: $19.77
12 105-5775 RING-RETAINING Price: $0.56
13 137-8497 ES REEL, DPA (21), 14 BLD This part replaces 115-5370. Price: $734.10
14 119-4151 SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41
15 33024-00 NUT-LOCK, NI Price: $0.75
16 105-5709 WEIGHT ASM Price: $53.15
17 105-5706 NUT-LOCK, BEARING Price: $17.80
20 33114-040 SCREW-HH Price: $1.22
21 119-3504 DECAL-REGULATORY Price: $2.47
22 110-3986 SCREW Price: $1.03
23 33114-016 SCREW-HH Price: $0.27
24 3256-2 WASHER-FLAT Price: $0.39
25 106-6927 SLEEVE Price: $20.59
