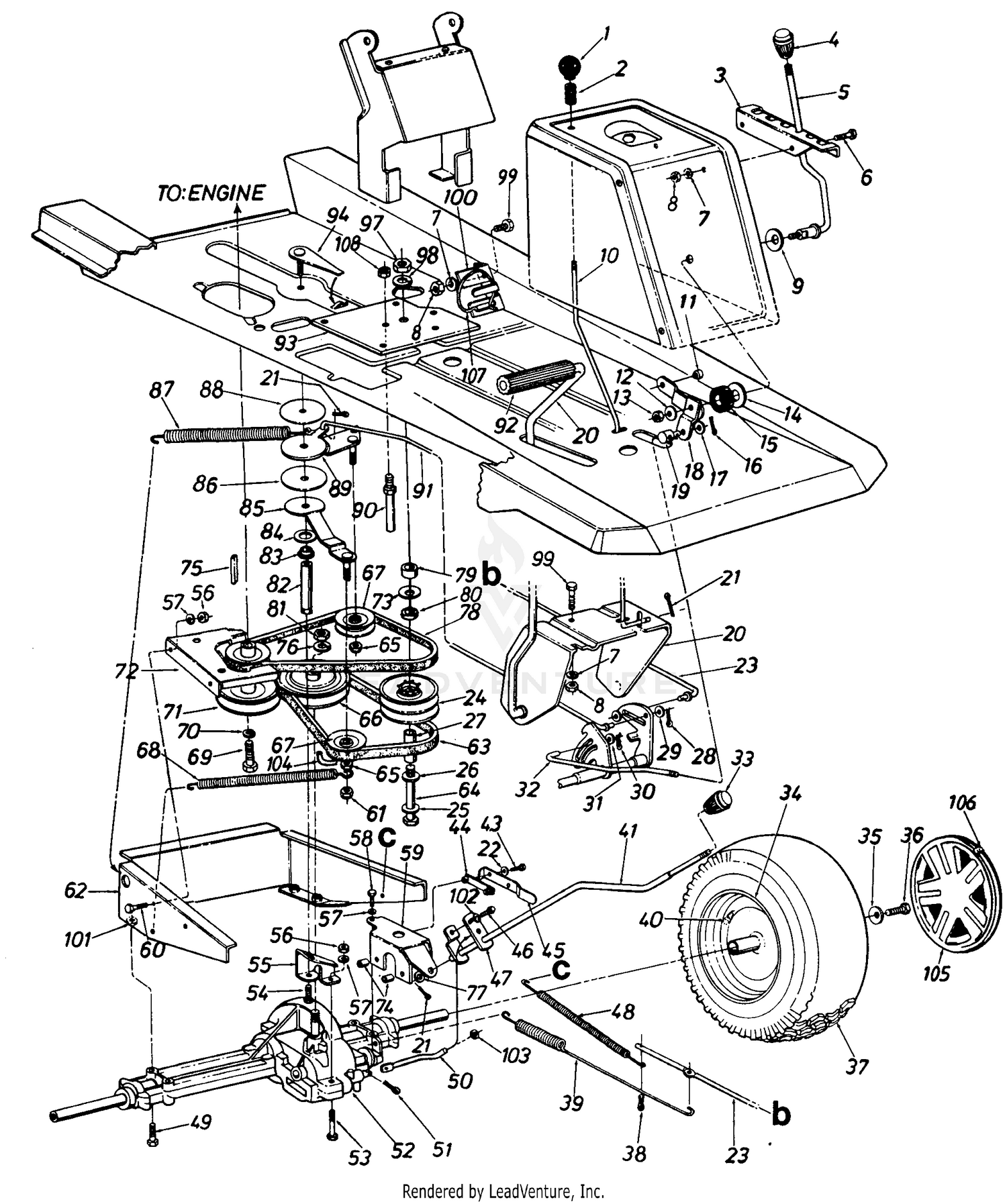

| Ref | Part Number | Description |
|---|
| 1 |
720-0187 |
Ball Knob 1/4-20 Thd. 1.25" Not Available Price: |
| 2 |
732-0437 |
Compression Spring Price: $8.93 |
| 3 |
16389 |
BRACKET-SP INDEX Not Available Price: |
| 4 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 5 |
747-0652 |
LEVER-SPEED CONTROL Not Available Price: |
| 6 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 7 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 9 |
736-0253 |
Bell-Wash. .345" I.D. x .88" Price: $3.58 |
| 11 |
731-0493 |
CAP Not Available Price: |
| 12 |
736-0242 |
Bell-Wash. .345" I.D. x .08" Price: $3.75 |
| 13 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 14 |
736-0100 |
FLAT WASHER .531 ID x 1.25 OD x .036 Price: $5.99 |
| 15 |
735-0219 |
RUBBER WASH. .50" I.D. x 1.25" O.D. Not Available Price: |
| 16 |
714-0145 |
Intern. Cotter Pin 1/2" Dia. Price: $4.42 |
| 17 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 18 |
16396 |
BRACKET AS Not Available Price: |
| 19 |
911-0677 |
Engagement Ferru This part replaces 711-0677. Price: $15.59 |
| 20 |
17677 |
PEDAL ASSEMBLY Not Available Price: |
| 21 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Price: $3.93 |
| 22 |
736-0426 |
WASHER-FIBER Not Available Price: |
| 23 |
747-0431 |
BRAKE ROD Not Available Price: |
| 24 |
717-0884 |
Variable Speed Pulley Ass'y. Price: $192.36 |
| 25 |
736-0247 |
Fl-Wash. .4" I.D. x 1.25" O.D. Price: $8.82 |
| 26 |
941-0405 |
THRUST BEARING Not Available This part replaces 741-0405. Price: |
| 27 |
750-0705 |
SLEEVE SPACER .56 OD x 2.71 LG Not Available Price: |
| 28 |
714-0115 |
Cotter Pin 1/8" Dia. x 1.25" Price: $3.48 |
| 29 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 30 |
714-0104 |
Intern. Cot-Pin 5/16" Dia. Price: $3.90 |
| 31 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 32 |
747-0394A |
LINK-SPEED CONTROL Not Available Price: |
| 33 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 34 |
634-0138 |
Rim Assembly This part replaces 734-0594. Price: $124.30 |
| 35 |
736-0242 |
Bell-Wash. .345" I.D. x .88" Price: $3.75 |
| 36 |
710-0627 |
Hex L-Bolt 5/16-24 x .75" Lg. Price: $3.68 |
| 37 |
634-0139 |
Rear Wheel Compl. This part replaces 734-0591. Price: $228.23 |
| 38 |
714-0470 |
Cotter Pin 1/8" Dia. x 1.25"* Price: $3.90 |
| 39 |
732-0389 |
EXTENSION SPRING Not Available Price: |
| 40 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 41 |
16475 |
LEVER ASSY-SHIFT Not Available Price: |
| 43 |
710-0227 |
Hex Wash. Hd. Scr. #8 x .5" Lg. Price: $3.90 |
| 44 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0222. Price: $6.01 |
| 45 |
732-0615 |
SPRING SWITCH Not Available Price: |
| 46 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 47 |
16476 |
LINK-SHIFT LEVER Not Available Price: |
| 48 |
732-0487 |
EXTENSION SPRING Not Available Price: |
| 49 |
710-0378 |
Hex Bolt 5/16-18 x 2.5" Lg. Price: $4.09 |
| 50 |
747-0668 |
SHIFT ROD Not Available Price: |
| 51 |
714-0149B |
Intern. Cotter Pin Price: $3.95 |
| 53 |
710-0136 |
Hex Bolt 1/4-20 x 1.75" Lg. Price: $3.66 |
| 54 |
710-0180 |
HEX SCREW 3/8-24 x .75 GR5 Not Available Price: |
| 55 |
15564A |
TORQUE ROD BRACKET Not Available Price: |
| 56 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 57 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 58 |
710-0965 |
SCREW-SELF TAP MACH 1/4-20X1. Not Available Price: |
| 59 |
17515 |
BRACKET Not Available Price: |
| 60 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 61 |
712-0262 |
Hex L-Nut 3/8-24 Thd. Price: $3.90 |
| 62 |
15552 |
SUPPORT ASSY-TRANS Not Available Price: |
| 63 |
954-0240 |
V-Belt 5/8 x 38.0" Lg. This part replaces 754-0240. Price: $35.27 |
| 64 |
710-0693 |
Hex Bolt 3/8-16 x 4.5" Lg. Price: $12.87 |
| 65 |
712-0116 |
Hex Ins. L-Nut 3/8-24 Thd. Price: $3.95 |
| 67 |
756-04209 |
Idler Pulley This part replaces 756-0116. Price: $20.97 |
| 68 |
732-0308A |
Spring, Extension, .50 Dia. x 6.37 This part replaces 732-0308. Price: $10.50 |
| 69 |
710-0314 |
Hex Bolt 7/16-20 x 1.00" Lg. Price: $3.93 |
| 70 |
736-0171 |
L-Wash. 7/16" I.D. Price: $3.86 |
| 72 |
15623 |
GUARD-ENG BELT-UPR Not Available Price: |
| 73 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 74 |
750-0686 |
SPACER Not Available Price: |
| 75 |
914-0114 |
Sq. Key 1/4" x 1/4" x 2.00" Not Available This part replaces 714-0114. Price: |
| 77 |
736-0226 |
Fl-Wash. .469" I.D. x .88" O.D. Price: $3.64 |
| 78 |
954-05040 |
Belt This part replaces 754-0241. Price: $42.39 |
| 79 |
950-0706 |
SPACER-1.00 x .380 Not Available This part replaces 750-0706. Price: |
| 80 |
941-0405 |
THRUST BEARING Not Available This part replaces 741-0405. Price: |
| 81 |
712-3029 |
NUT This part replaces 712-0922. Price: $6.01 |
| 82 |
711-0676 |
TORQUE ROD Not Available Price: |
| 83 |
748-0294 |
FLANGE BEARING Not Available Price: |
| 84 |
736-0187 |
Fl-Wash. .640" I.D. x 1.24 Price: $4.02 |
| 85 |
15569B |
IDLER BRACKET ASSEMBLY Not Available This part replaces 15569A. Price: |
| 86 |
736-0283 |
THRUST WASH. .635" I.D. Not Available Price: |
| 87 |
932-0556 |
Ext. Spring .94" O.D. x 7.58" This part replaces 732-0556. Price: $20.03 |
| 88 |
736-0284 |
THRUST WASH. .385" I.D. Not Available Price: |
| 89 |
15585 |
BRACKET AS Not Available Price: |
| 90 |
711-0640 |
Belt Guard Pin 3/8-16 x 2.75" Lg. Price: $7.03 |
| 91 |
747-0560 |
CLUTCH ROD Not Available Price: |
| 92 |
735-0239A |
FOOT PAD This part replaces 735-0196. Price: $10.76 |
| 93 |
783-0005 |
VARIABLE SPEED MOUNTING PLATE Not Available Price: |
| 94 |
15642 |
BRACKET ASSY Not Available Price: |
| 97 |
712-0798 |
Hex Nut 3/8-16 Price: $3.86 |
| 98 |
736-0217 |
L-Wash. 3/8 Heavy Duty Price: $3.86 |
| 99 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 100 |
783-1016B |
BRACKET Not Available This part replaces 17839. Price: |
| 101 |
712-0265 |
SEMS NUT 5/16-18 Not Available Price: |
| 102 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 103 |
726-0106 |
PUSH NUT This part replaces 726-0231. Price: $3.37 |
| 104 |
747-0758 |
BELT GUARD Not Available Price: |
| 107 |
732-0525 |
Comp. Spring Clip Price: $8.93 |
