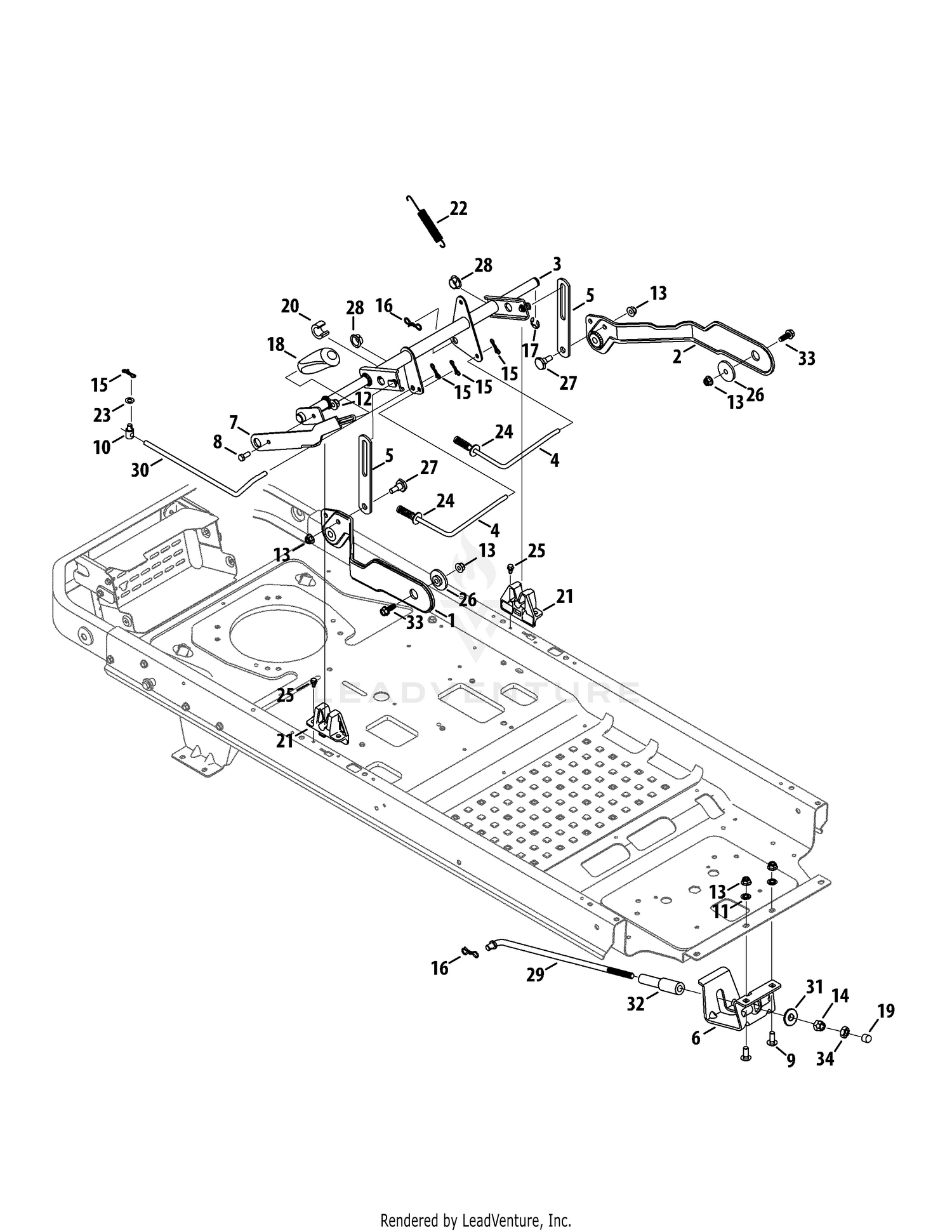

Deck Lift

Deck Lift

Parts (33)

RefPart NumberDescription
1 603-05107B-0637 DECK LIFT PLATE ASSEMBLY (RH) (POWDER BLACK) Price: $83.99
2 603-05108B-0637 DECK LIFT PLATE ASSEMBLY (LH) (POWDER BLACK) Price: $83.99
3 903-05137 DECK LIFT SHAFT Not Available Price:
4 647-04267 Brake Rod Assembly Price: $27.01
5 703-08591A-0637 Lift Link Plate Price: $17.68
6 703-08644A-0637 FRONT LIFT ROD MOUNTING BRACKET (POWDER BLACK) This part replaces 703-08644-0637. Price: $16.10
7 703Z09621A DECK LIFT HANDLE This part replaces 703-09621. Price: $12.96
8 710-3008 SCREW 5/16-18 x .75 GR5 Price: $3.76
9 710-3168 Carriage Bolt, 3/8-16 x 1.00 Price: $3.61
10 911-0832 Ferrule, 3/8-24 x .375 Price: $13.68
11 712-0229 Push Nut, 3/8 Price: $3.14
12 712-04063 Flange Lock Nut, 5/16-18 Price: $3.56
13 712-04065 Flange Lock Nut, 3/8-16 Price: $3.68
14 712-05046 Hex Nut, 1/2-13 Price: $3.74
15 714-04040 Bow-Tie Cotter Pin Price: $1.28
16 714-05005 Bow-Tie Cotter Pin Price: $4.24
17 716-0231 E-ring..75 This part replaces 916-0231. Price: $3.50
18 720-04139B Grip, .50 ID Price: $16.45
19 726-05009 End Cap Price: $3.70
20 731-05297 Spacer, .76 ID x .750 LG Price: $8.47
21 731-08782 DECK LIFT BRACKET Price: $7.71
22 732-04587 Extension Spring, .63 Dia. x 4.95 LG Price: $6.51
23 736-0314 Thrust Washer .382 ID x .684 OD This part replaces 936-0314. Price: $6.01
24 736-3078 Flat Washer, .344 x 1.00 x .063 Price: $3.95
25 738-04278 Shoulder Screw, .500 x 1/4-20 Price: $5.99
26 738-05029 SHOULDER SPACER -S Price: $8.34
27 738-0507B Shoulder Screw, .5D x .434 This part replaces 938-0507B. Price: $3.86
28 741-3084 Flange Bearing, .751 x 1.125 x .375 Price: $4.55
29 747-05552C Deck Lift Rod Price: $28.06
30 747-05592B Brake Rod Price: $19.55
31 748-04069A DECK LIFT PIVOT CUP This part replaces 748-04069. Price: $4.93
32 750-05658 Nylon Sleeve, .55 ID x 4.50 LG Price: $5.72
33 710-04683C Screw, 3/8-16 x 1.00 Price: $5.67
