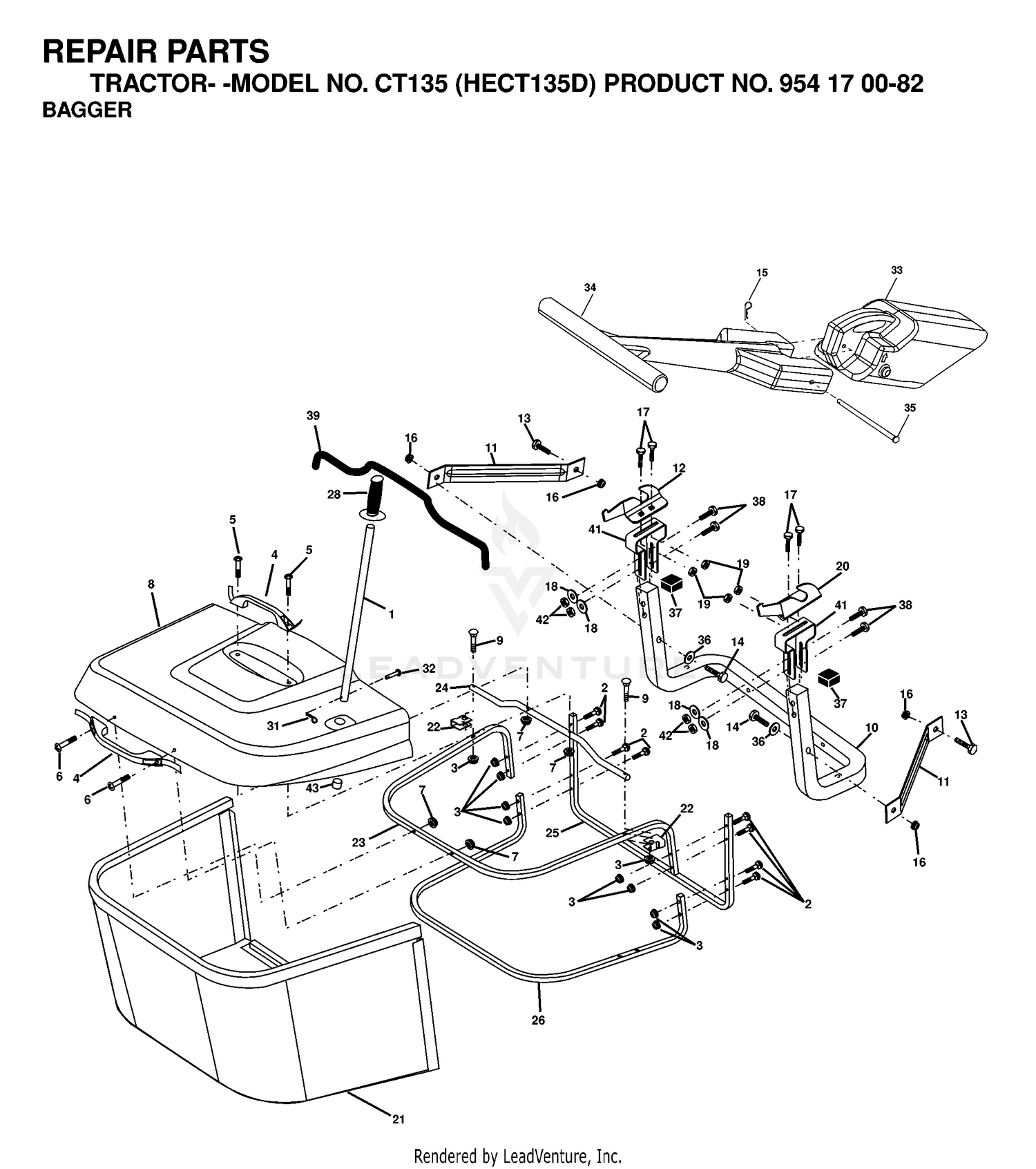

| Ref | Part Number | Description |
|---|
| 1 |
104-3537 |
PIN-CYLINDER Price: $66.99 |
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
3234-46 |
SCREW-HHF Price: $2.08 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 4 |
86-5350 |
BUMPER-RUBBER Price: $46.29 |
| 5 |
3269-11 |
RIVET-POP Price: $0.68 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
325-5 |
SCREW-HH Price: $1.20 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 7 |
106-2008 |
WASHER-THRUST Price: $5.16 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
121-3882 |
SHAFT-PIVOT, LIFT ARM Price: $265.49 |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 9 |
138-5253 |
PIVOT HUB ASM This part replaces 115-5468. Price: $73.95 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
256-304 |
WASHER-THRUST Price: $3.94 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
117-5479 |
PIN-SPRING Price: $1.45 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
120-8859-03 |
BLOCK-TAPPED Price: $41.09 |
| 12 |
532169685 |
BRACKET Price: $32.99 |
| 13 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 13 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 14 |
100-6116 |
SCREW-HHF Price: $6.41 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
116-1399 |
LOCKNUT Price: $13.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
104-0719 |
WASHER-HARDENED Price: $9.34 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 18 |
114-5641 |
WASHER-THRUST Price: $12.21 |
| 18 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 19 |
104-0721 |
WASHER-THRUST Price: $4.00 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
104-0720 |
SPACER Price: $35.75 |
| 21 |
114-5640-03 |
JOINT YOKE ASM Price: $448.74 |
| 21 |
532180880 |
GRASS BAG Price: $130.99 |
| 22 |
145-8347 |
LIFT ARM ASM This part replaces 132-6210. Price: $736.74 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
132-6217 |
RH LIFT ARM ASM Price: $900.46 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
132-1429 |
SENSOR-TRIGGER Price: $27.80 |
| 25 |
532180124 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 27 |
27-0410 |
SCREW-SHOULDER Price: $2.59 |
| 28 |
131-4305 |
PIN Price: $24.18 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 29 |
139-0956 |
HYD CYLINDER ASM This part replaces 107-4303. Price: $1,027.18 |
| 30 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 31 |
120-9000-03 |
CROSSMEMBER Price: $249.32 |
| 31 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 32 |
3296-45 |
NUT-HEX Price: $3.79 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
104-3577 |
WASHER Price: $0.76 |
| 33 |
583448501 |
MULCHING.PLUG.92.CRD.NON-TEX This part replaces 532165571. Price: $19.99 |
| 34 |
136-4395-03 |
LATCH-DECK, LH Price: $29.96 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
136-4394-03 |
LATCH-DECK, RH Price: $29.96 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 36 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 37 |
340-82 |
FITTING-ELBOW, 90 DEG Price: $20.57 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
132-1421 |
PLATE-PIVOT, LH Price: $9.15 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 40 |
132-1422 |
PLATE-PIVOT, RH Price: $9.15 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 42 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
